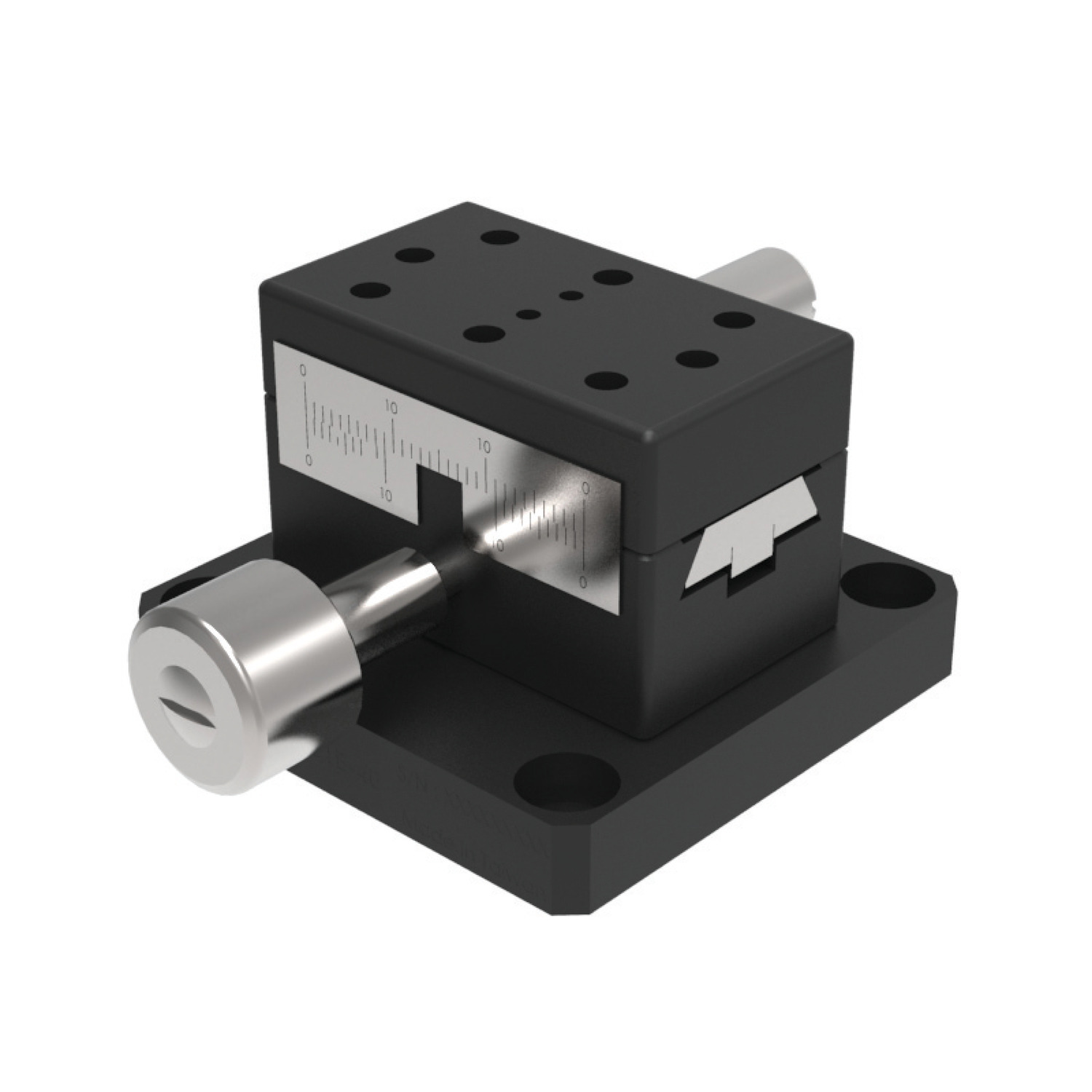

L3303.X Dovetail Stages - Rack & Pinion

Name: L3303.042-X
Brand: WC
SKU: L3303.042-X
Price: 247.13 EUR
Availability: OutOfStock

X axis, material: Aluminium

Article properties

Order No.

L3303.042-X

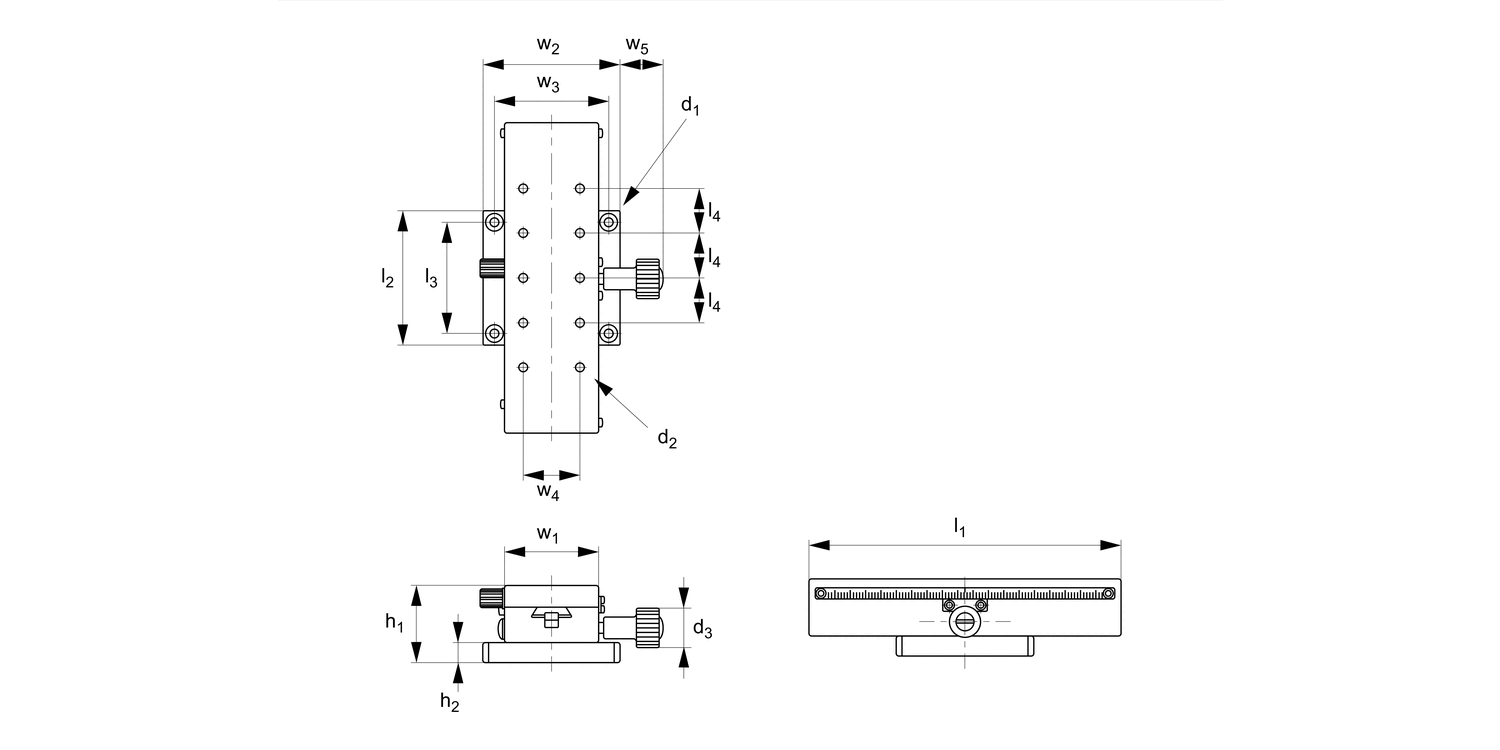

h₁

Travel

±12

Load max. kg

3.0

w₁

24.8

d₁

4.5

d₂

d₃

h₂

l₁

l₂

l₃

l₄

w₂

w₃

w₄

w₅

17.8

See full product selection

£ 247.13 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	£ 247.13

Download product datasheet

Technical & Application

Material

Aluminium body blackened, steel knob.

Technical Notes

Travel 18mm for one revolution.
Minimum vernier reading 0,1mm.
Straightness accuracy 30µ.
