T Plate

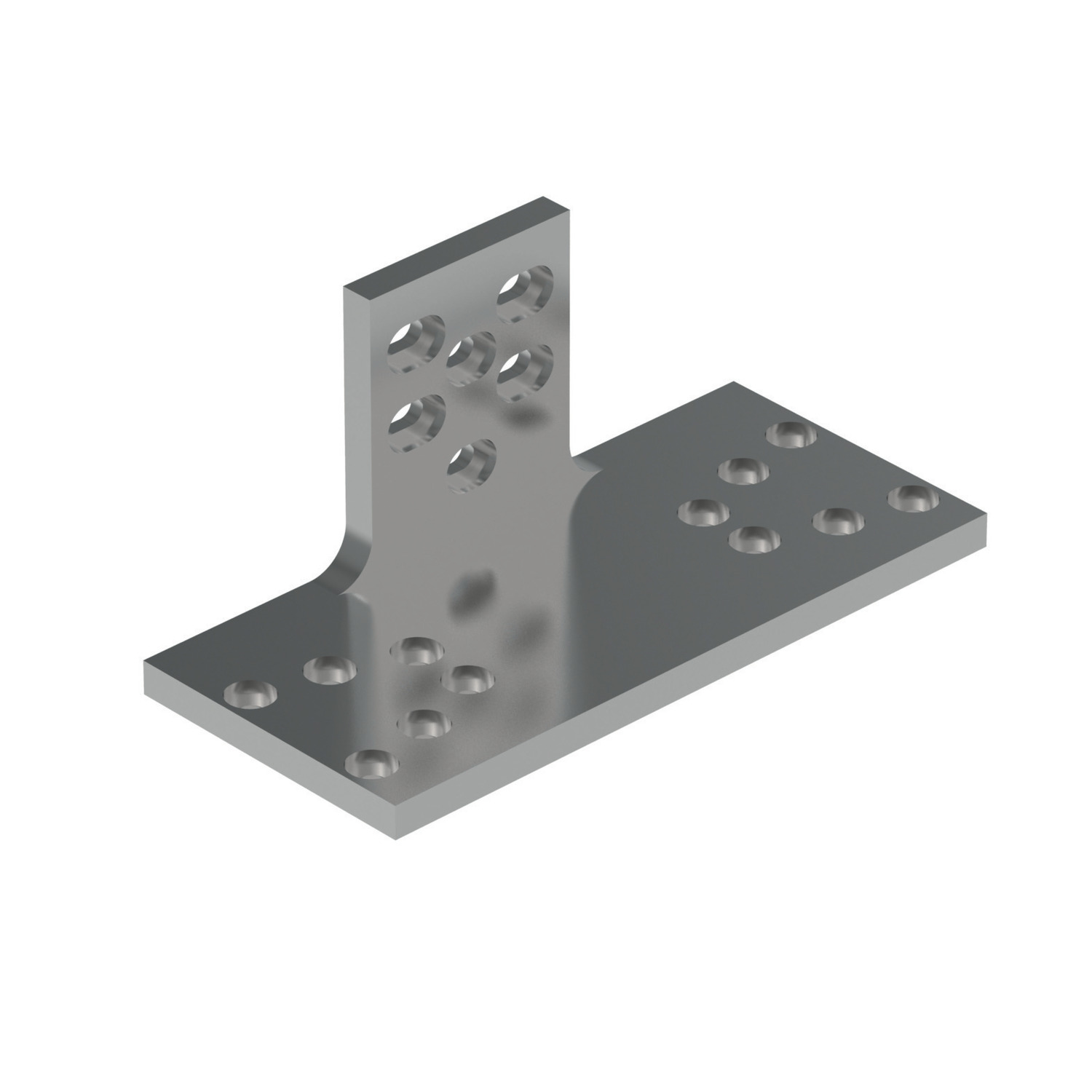

L3001.APC2 Right Angle Plates
material: Aluminium
£ 101.80 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 101.80 | 0% |
| 5-9 | £ 96.71 | 5% |
| 10-19 | £ 91.62 | 10% |
| 20-49 | £ 86.53 | 15% |
| 50+ | £ 76.35 | 25% |
Technical & Application
Material
Aluminium.
Technical Notes
Allows two units to be mounted at right angles to one another. Supplied with T-nuts and bolts.
The trolley of one unit can be mounted to the side of the other.
Tips
Not suitable for L3004.E and L3004.ED units.

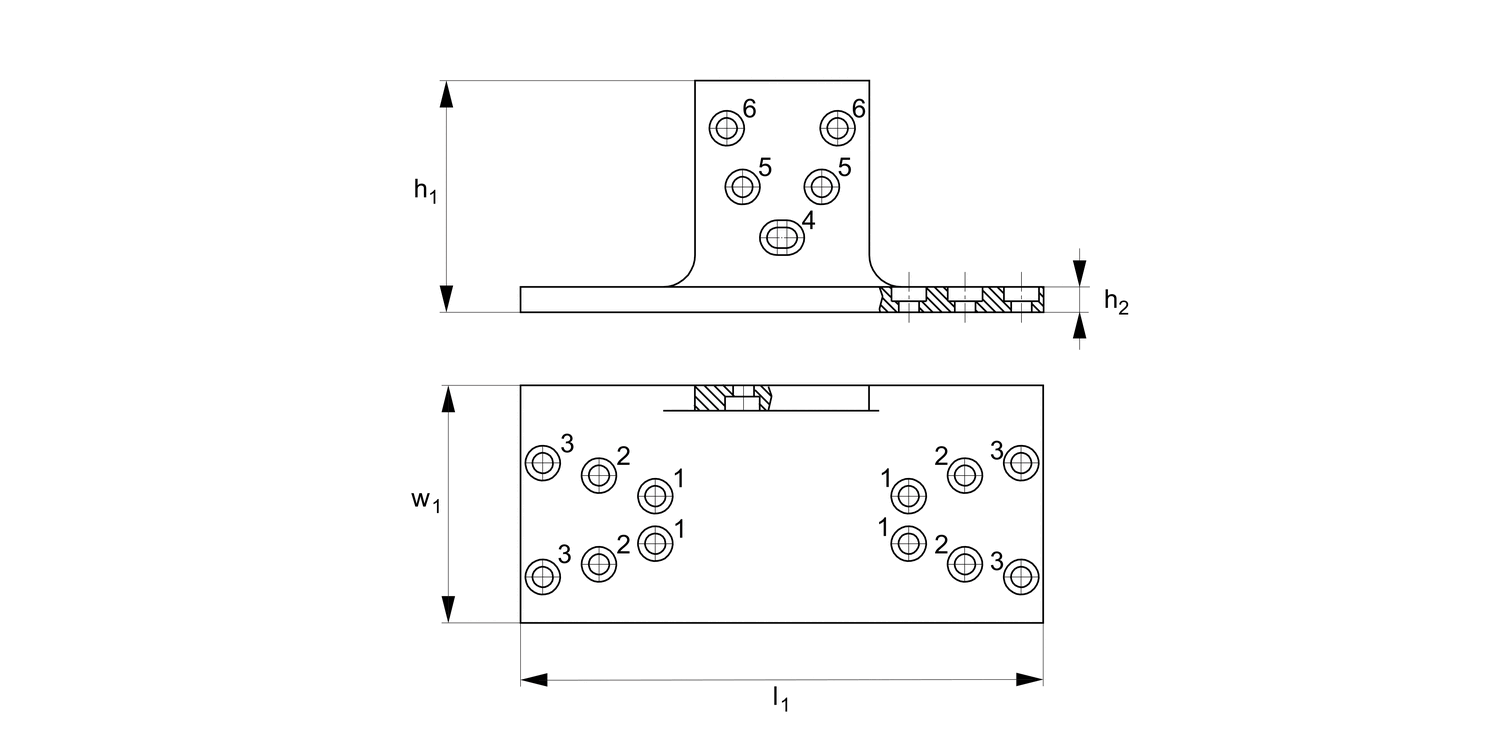

Size 40 - use holes 1 for carriages and 4 for profile.
Size 55 - use holes 2 for carriages and 5 for profile.
Size 40 - use holes 3 for carriages and 6 for profile.
