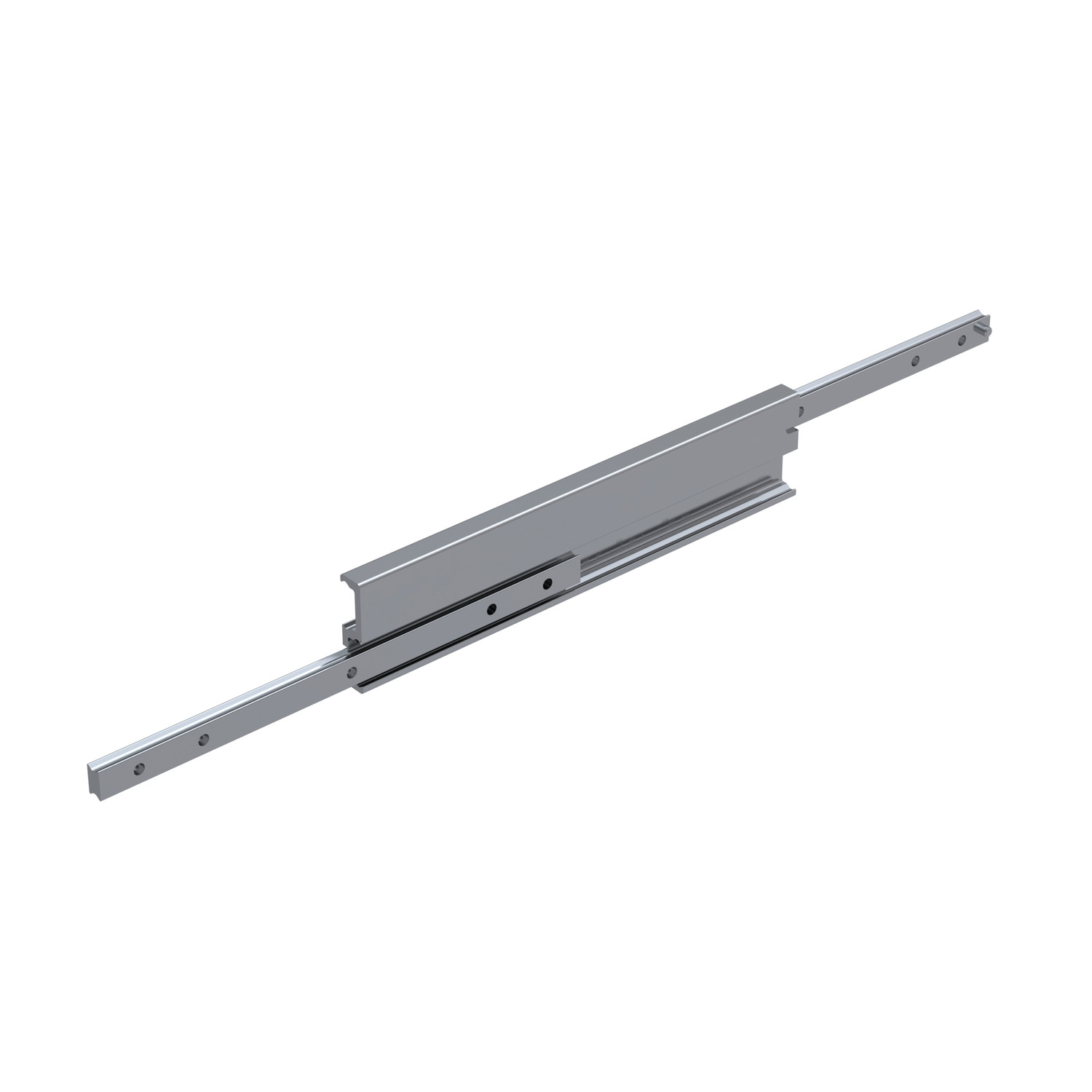

L1992 Fully Telescopic Slides LTF

Name: L1992.44-0375
Brand: WC
SKU: L1992.44-0375
Price: 282.14 EUR
Availability: OutOfStock

material: Steel

Article properties

Order No.

L1992.44-0375

h₁

h₂

h₃

11.5

h₄

11.5

l₁

375

l₂ stroke

385

l₃

l₄

147.5

w₁

w₂

6.5

r₁

1.5

For screws d₁

No. of holes

Load (per rail) C_{0 rad} max. N

226

Weight kg

1.01

See full product selection

£ 282.14 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 282.14	0%
3-4	£ 268.03	5%
5-9	£ 253.93	10%
10+	£ 225.71	20%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Cold drawn bearing steel, raceways are not hardened. Balls - hardened steel.
Zinc coating to ISO2081 (excluding raceways). Corrosion resistant coatings on request.

Technical Notes

This is a lower cost slide with non-hardened raceways but still providing high load capacity.
Temperature range: -30°C to +170°C.
More suited for less frequent opening applications.
Only to be used for horizontal movements.
C0rad is the load rating for a single telescopic slide.

Tips

The fixed top member must be mounted to the fixed structure and the moving member to the mobile structure - using all of the threaded holes.
The slides have end stops, but these are not designed to stop a moving, loaded slide. External end stops should be used for this.
