Fully Telescopic Slides
size 28

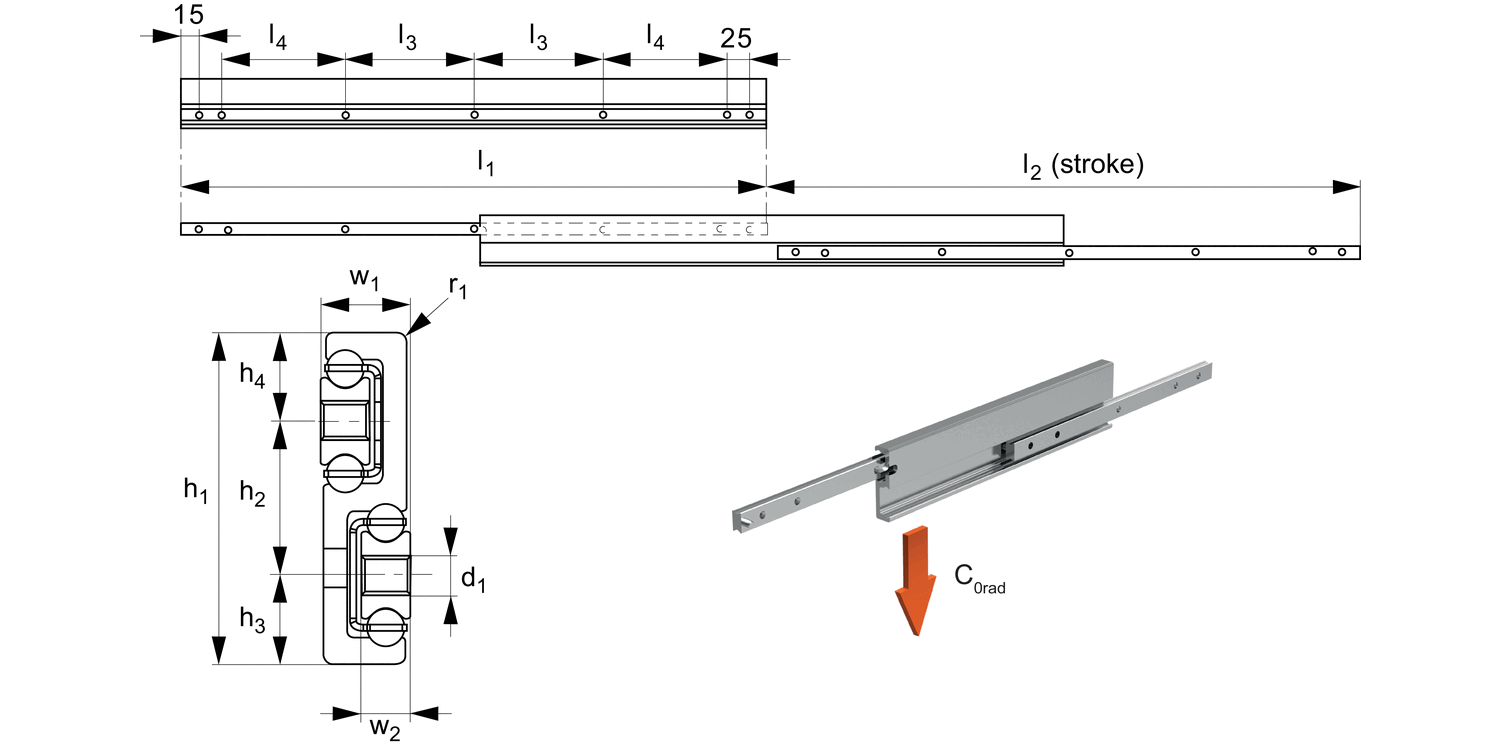

L1992 Fully Telescopic Slides LTF
material: Steel
Order No.
L1992.44-0225
h1
43
h2
20
h3
11.5
h4
11.5
l1
225
l2 stroke
235
l3
-
l4
72.5
w1
12
w2
6.5
r1
1.5
For screws d1
M5
No. of holes
5
Load (per rail) C0 rad
max.
N
130
Weight
kg
0.59
£ 241.44 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 241.44 | 0% |
| 3-4 | £ 229.37 | 5% |
| 5-9 | £ 217.30 | 10% |
| 10+ | £ 193.15 | 20% |
Technical & Application
Material
Cold drawn bearing steel, raceways are not hardened. Balls - hardened steel.
Zinc coating to ISO2081 (excluding raceways). Corrosion resistant coatings on request.
Technical Notes
This is a lower cost slide with non-hardened raceways but still providing high load capacity.
Temperature range: -30°C to +170°C.
More suited for less frequent opening applications.
Only to be used for horizontal movements.
C0rad is the load rating for a single telescopic slide.
Tips
The fixed top member must be mounted to the fixed structure and the moving member to the mobile structure - using all of the threaded holes.
The slides have end stops, but these are not designed to stop a moving, loaded slide. External end stops should be used for this.
