Shaft Support Rails
12Ø, Carbon Steel
L1781.60 60Ø Shaft Support Rails
complete stainless and aluminium support, material: Stainless steel 440C
Order No.
L1781.60-6000

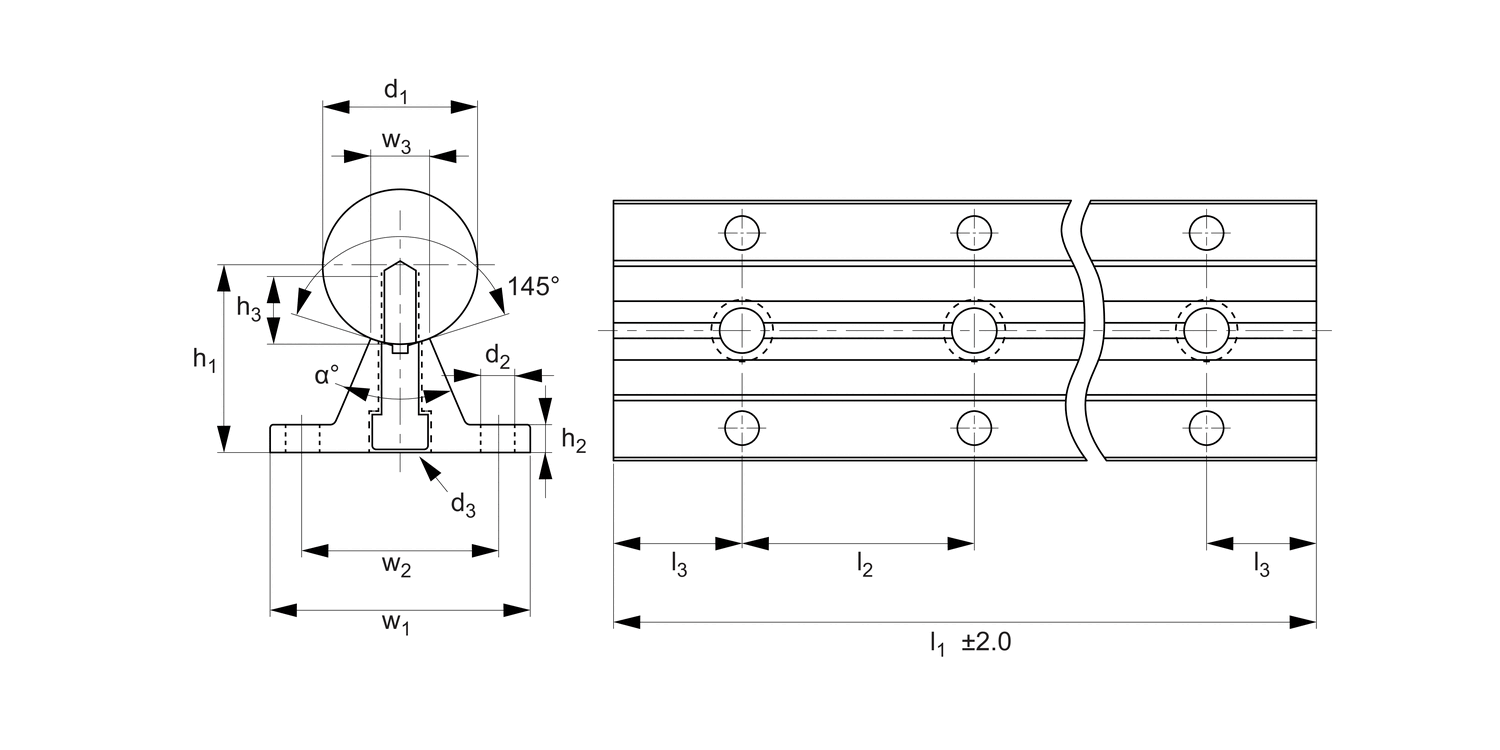

d1
tol. h6
60
d2
11
d3
M14x50
l1
6000
l2
300
l3
150
w1
94
w2
72
w3
25
h1
±0.02
68
h2
10
h3
25
α
°
46
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | - |
Technical & Application
Material
Hardened and ground stainless steel shaft (440C), aluminium alloy support rail.
Surface hardness of shaft 60-65 HRC.
Technical Notes

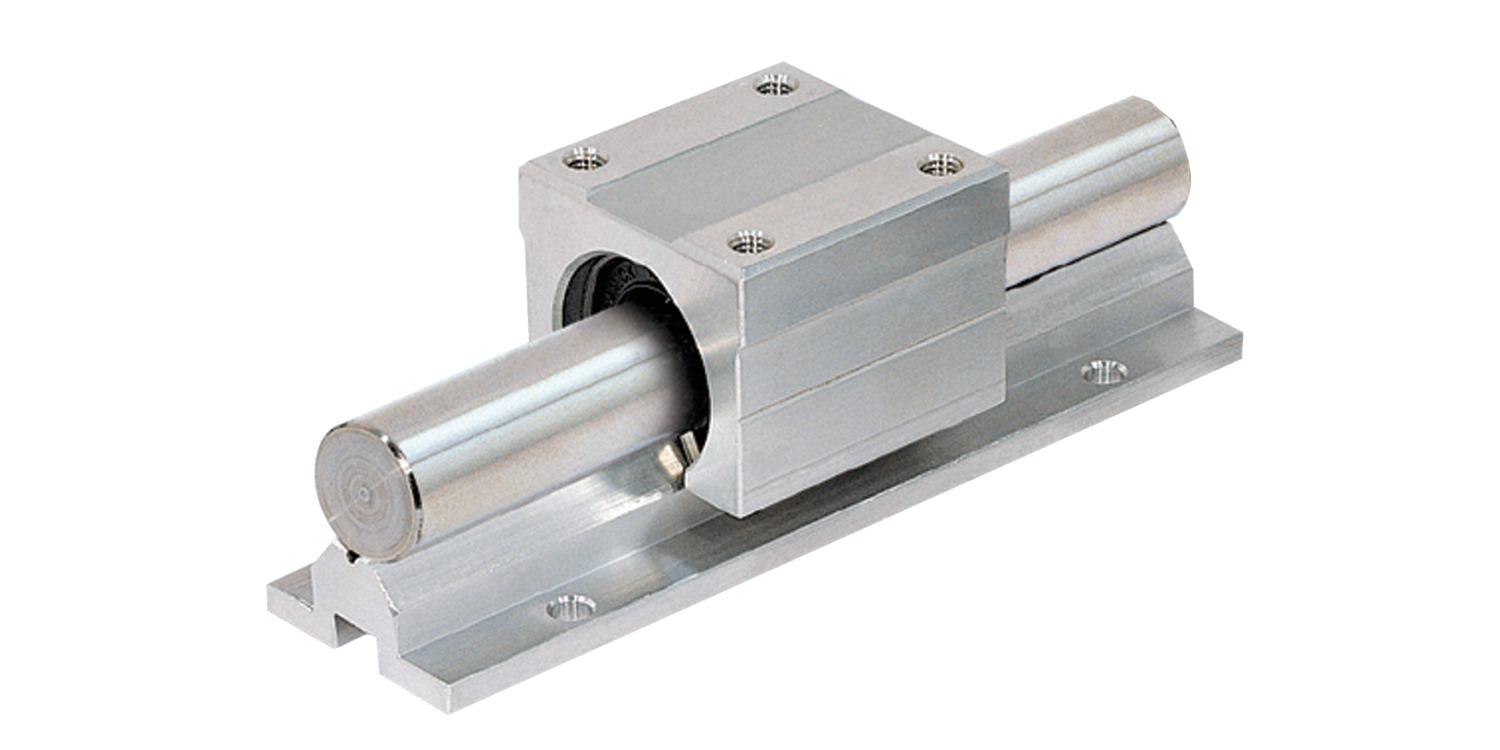

For open linear bushings, ensures a very rigid and stiff system.
The shaft is pre-mounted to the shaft support rail.
Standard lengths are shown which allow the distance to the first and last hole to be equal (ie l2/2). Different holes pitches available on request.
Straightness: ±0.1mm/metre.
Tips
For linear carriages see part no. L1755 (flanged) or L1752 (unflanged).
Stainless steel carriages also available, see part no. L1756 (flanged) or L1753 (unflanged).
