Miniature Rail Carriages
standard width

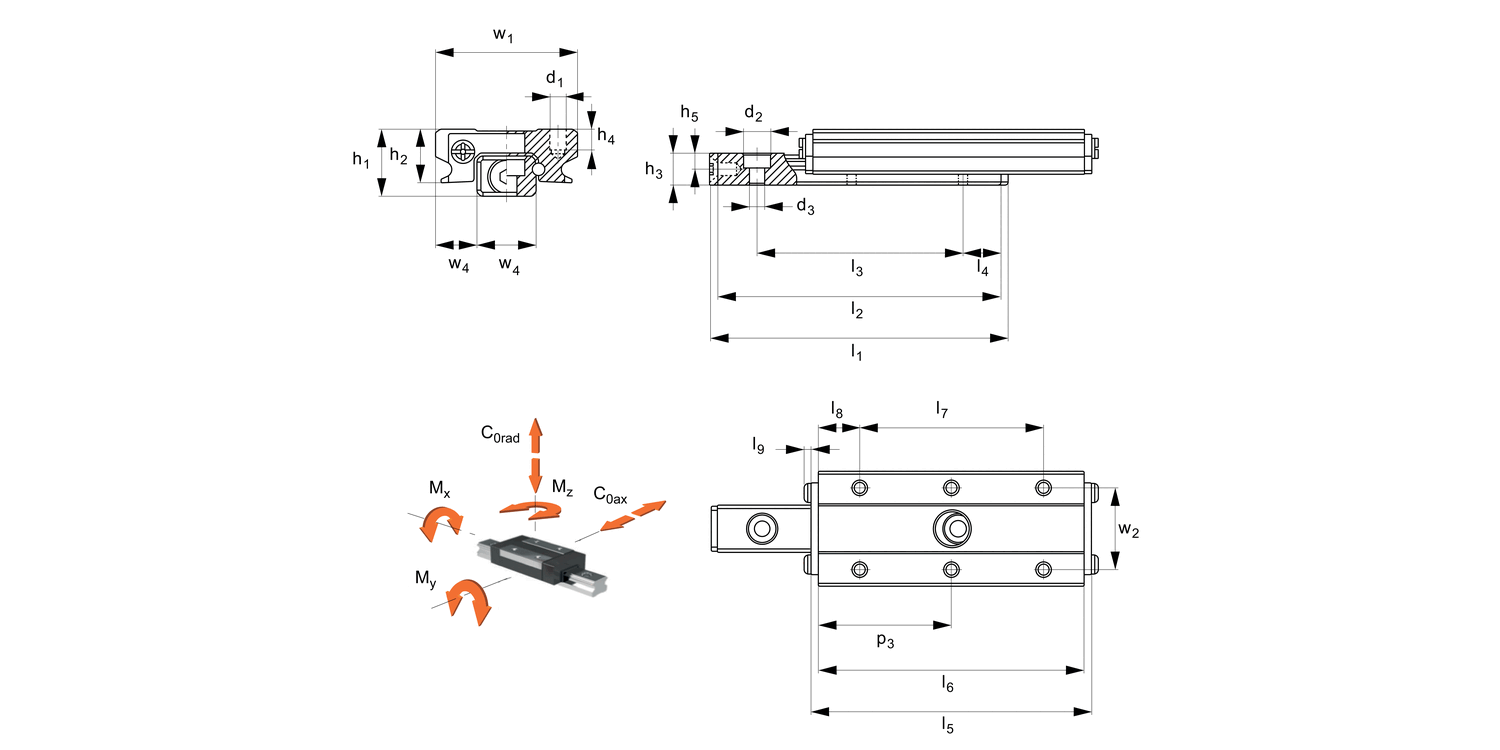

L1013 Miniature Rail Assembly
material: hardened stainless steel
Order No.
L1013.12-100
Stroke
max.
94
l1
100
l2
97.4
l3
75
l4
11.2
l5
100
l6
97.4
l7
75
l8
11.2
l9
1.3
h1
13
h2
10.0
h3
7.5
h4
3.5
h5
4.5
d1
M3
d2
6.0
d3
3.5
w1
27
w2
20
w3
12
w4
7.5
Static load C0
N
8670
My
Nm
54.0
Mz
Nm
62.8
£ 221.45 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1+ | £ 221.45 |
Technical & Application
Material
Rail and carriage: Hardened stainless steel.
Back plate and screws: Stainless steel.
Ball: Steel.
Technical Notes
The carriage has two rows of steel balls.
The ball track has a gothic profile with a 45° contact angle to achieve equal load capacity in a mono block.
This enables greater space to accommodate larger rolling elements.
The steel balls roll without recirculation resulting in smooth operation, low friction and no vibration.
Important Notes
Max. Temperature +150°C
