Miniature Rail Carriages
standard width

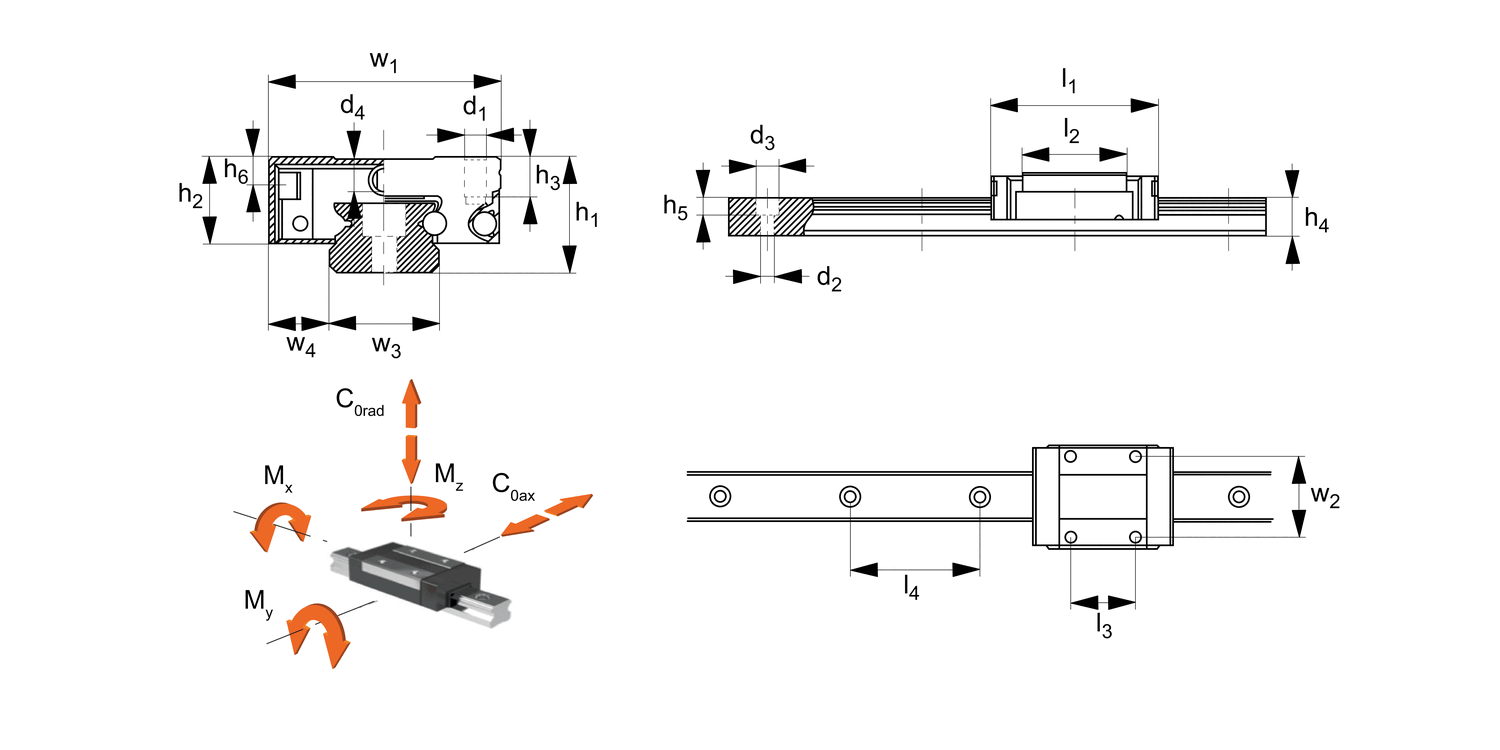

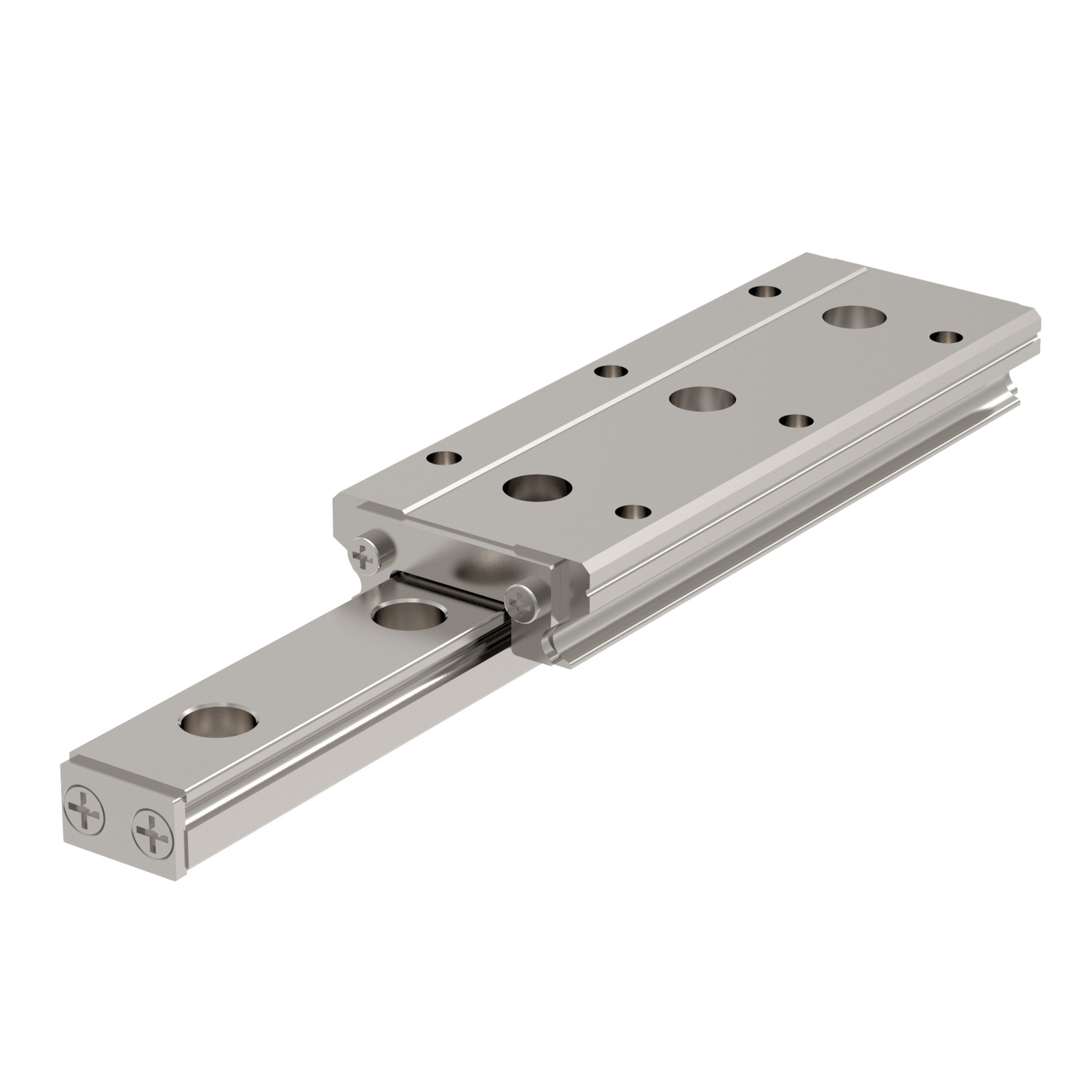

L1010.C Miniature Rail Carriages
standard rail width, material: Stainless steel
Order No.
L1010.C09
For rail
9
l1
30.9
l2
20.5
l3
10
l4
20
h1
10
h2
7.9
h3
3.0
h4
5.5
h5
3.5
h6
3.3
d2
3.5
d3
6.0
d4
1.3
For screws d1
M3
Weight
g
18.0
Static load C0rad & ax
N
2495
w1
20
w2
15
w3
9
w4
5.5
Dyn. load Crad & ax
N
1570
Mx
Nm
11.7
My
Nm
6.4
Mz
Nm
6.4
£ 42.53 per unit (click for quantity discounts)
Ready to despatch 17
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 42.53 | 0% |
| 5-9 | £ 38.28 | 10% |
| 10-19 | £ 36.15 | 15% |
| 20-49 | £ 31.90 | 25% |
| 50+ | £ 27.64 | 35% |
Technical & Application
Material
Corrosion resistant stainless steel body (440C), with hardened stainless steel ball bearings.
Black plastic end plates and ball bearing retainers.
Technical Notes
Max.speed 3 m/s. max. acceleration 40m/s2.
Temperature range -40°C to +80°C.
Select the size and number of carriages to suit the required load then select the required rail length, (see part nos. L1010.07 through to L1010.15).
Tips
Carriages are supplied with a dummy plastic rail. When mounting carriages onto rail, slide directly from the dummy rail onto the steel rail. Do not simply remove the carriage from the dummy rail - the balls will become loose making the carriage unusable.
Important Notes
*Size 3 and Size 5 carriage must be ordered with rails.
