L4570 Push/Pull Dashpot

0.22" bore, material: Graphite

Download product datasheet

Alternative products you may wish to consider

Push/Pull Dashpot

L4570.A0500

Stroke

0,5"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

0,937"

L4570.A1000

Stroke

1,0"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,437"

£ 124.83 per unit (click for quantity discounts)

Push/Pull Dashpot

L4570.A1500

Stroke

1,5"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,937"

L4570.A2000

Stroke

2,0"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

2,437"

£ 130.45 per unit (click for quantity discounts)

Push/Pull Dashpot

L4570.B0500

Stroke

0,5"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

0,937"

L4570.B1000

Stroke

1,0"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,437"

£ 124.03 per unit (click for quantity discounts)

Push/Pull Dashpot

L4570.B1500

Stroke

1,5"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,937"

L4570.B2000

Stroke

2,0"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

2,437"

£ 124.03 per unit (click for quantity discounts)

Push/Pull Dashpot

L4570.A0500

Stroke

0,5"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

0,937"

L4570.A1000

Stroke

1,0"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,437"

£ 124.83 per unit (click for quantity discounts)

Push/Pull Dashpot

L4570.A1500

Stroke

1,5"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,937"

L4570.A2000

Stroke

2,0"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

2,437"

£ 130.45 per unit (click for quantity discounts)

Push/Pull Dashpot

L4570.B0500

Stroke

0,5"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

0,937"

L4570.B1000

Stroke

1,0"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,437"

£ 124.03 per unit (click for quantity discounts)

Push/Pull Dashpot

L4570.B1500

Stroke

1,5"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,937"

L4570.B2000

Stroke

2,0"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

2,437"

£ 124.03 per unit (click for quantity discounts)

Stroke

Rod end linkage

Bore dia.

Pull damping force max. N

Push damping force max. N

Body length

Price & Availability Article Stroke Rod end linkage Bore dia. Pull damping force max. N Push damping force max. N Body length

L4570.A0500

0,5"

0,22"

2.22

1.55

0,937"

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Stroke

0,5"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

0,937"

more info »

L4570.A1000

1,0"

0,22"

2.22

1.55

1,437"

£ 124.83 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 124.83	0%
5-19	£ 112.35	10%
20-39	£ 99.86	20%
40-99	£ 87.38	30%
100+	£ 74.90	40%

Stroke

1,0"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,437"

more info »

L4570.A1500

1,5"

0,22"

2.22

1.55

1,937"

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Stroke

1,5"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,937"

more info »

L4570.A2000

2,0"

0,22"

2.22

1.55

2,437"

£ 130.45 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 130.45	0%
5-19	£ 117.41	10%
20-39	£ 104.36	20%
40-99	£ 91.32	30%
100+	£ 78.27	40%

Stroke

2,0"

Rod end linkage

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

2,437"

more info »

L4570.B0500

0,5"

Loop

0,22"

2.22

1.55

0,937"

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Stroke

0,5"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

0,937"

more info »

L4570.B1000

1,0"

Loop

0,22"

2.22

1.55

1,437"

£ 124.03 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 124.03	0%
5-19	£ 111.63	10%
20-39	£ 99.22	20%
40-99	£ 86.82	30%
100+	£ 74.42	40%

Stroke

1,0"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,437"

more info »

L4570.B1500

1,5"

Loop

0,22"

2.22

1.55

1,937"

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Stroke

1,5"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

1,937"

more info »

L4570.B2000

2,0"

Loop

0,22"

2.22

1.55

2,437"

£ 124.03 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 124.03	0%
5-19	£ 111.63	10%
20-39	£ 99.22	20%
40-99	£ 86.82	30%
100+	£ 74.42	40%

Stroke

2,0"

Rod end linkage

Loop

Bore dia.

0,22"

Pull damping force max. N

2.22

Push damping force max. N

1.55

Body length

2,437"

more info »

Technical & Application

Material

Graphite carbon piston.
Annealed borosilicate glass cylinder.
Precision fire-polished bore.
Stainless steel piston rod (AISI 304)

Technical Notes

Damping coefficient = 0-0,16 N/(mm/s).
Friction coefficient = 0.2.
Force without side load: <1g.
Operating temperature range: -55°^{c
Operating temperature range: -55°^{to 150°c.

*If operating temperature is above +70°c, please advise at time of ordering.}}

Important Notes

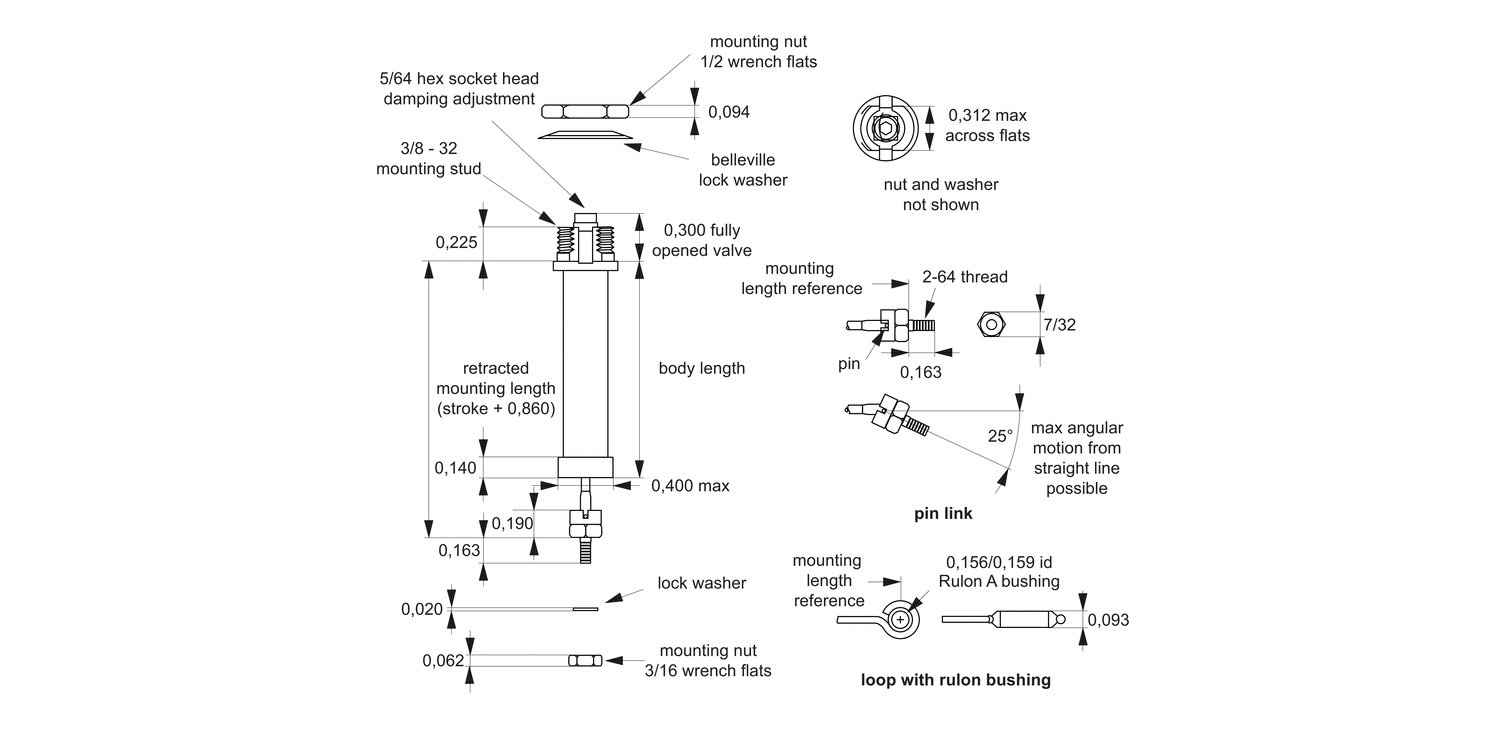

Mounting data:
Mounting hole:
Rectangular = 0.312 x 0.375 (8mm x 10mm)
Round = 0.375" (10mm)
Suggested mounting bracket thickness = 0.06 - 0.125 (1.52mm - 3.18mm)
Mounting nut torque:
Head = 4-8 in-lb (0.45 - 0.90 Nm)
Rod end = 1-3 in-lb (0.11-0.34 Nm)

Full stroke is obtained with customer held mounting tolerance of ±0.015" (0.38mm).

Level of damping is adjustable by hand. If you know the level of damping required we can pre-set this in the factory.
