Stainless AISI 316 Slides
size 40
L1989 Stainless Medium Duty Full Extension
316 stainless, material: Stainless steel
Alternative products you may wish to consider

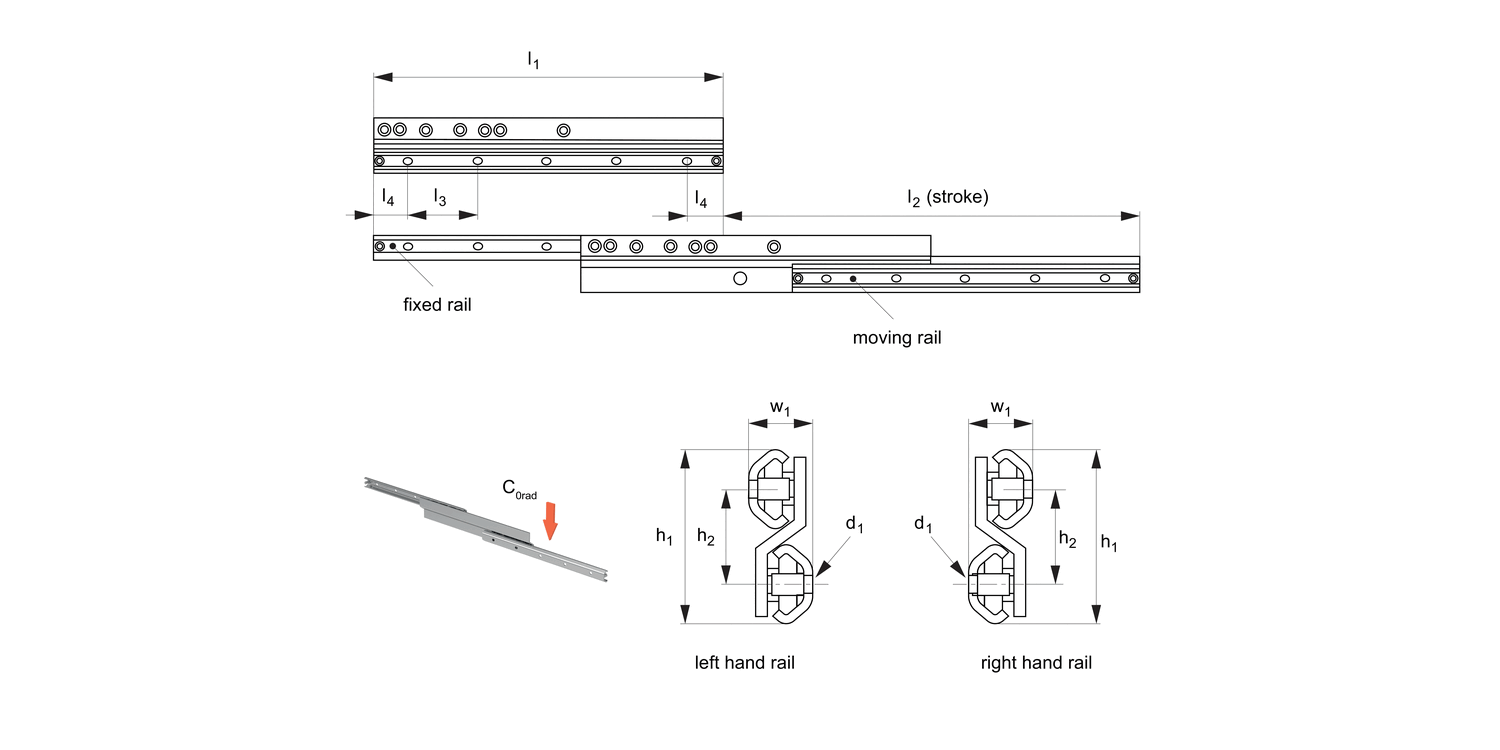

Type
Left
l1
400
l2 stroke
480
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
10
Load (per rail) C0 rad
max.
N
150
Weight
kg
1.36
Type
Left
l1
480
l2 stroke
560
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
12
Load (per rail) C0 rad
max.
N
200
Weight
kg
1.63
£ 326.81 per unit (click for quantity discounts)
Type
Left
l1
560
l2 stroke
640
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
14
Load (per rail) C0 rad
max.
N
240
Weight
kg
1.90
£ 373.41 per unit (click for quantity discounts)
Type
Left
l1
640
l2 stroke
720
h1
65.5
h2
280
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
16
Load (per rail) C0 rad
max.
N
280
Weight
kg
2.18
Type
Left
l1
720
l2 stroke
800
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
18
Load (per rail) C0 rad
max.
N
320
Weight
kg
2.45
£ 397.26 per unit (click for quantity discounts)
Type
Left
l1
800
l2 stroke
880
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
20
Load (per rail) C0 rad
max.
N
360
Weight
kg
2.72
£ 421.80 per unit (click for quantity discounts)
Type
Left
l1
880
l2 stroke
960
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
22
Load (per rail) C0 rad
max.
N
350
Weight
kg
2.99
£ 441.04 per unit (click for quantity discounts)
Type
Left
l1
960
l2 stroke
1040
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
24
Load (per rail) C0 rad
max.
N
310
Weight
kg
3.26
£ 468.93 per unit (click for quantity discounts)
Type
Left
l1
1040
l2 stroke
1120
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
26
Load (per rail) C0 rad
max.
N
250
Weight
kg
3.54
£ 495.03 per unit (click for quantity discounts)
Type
Right
l1
400
l2 stroke
480
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
10
Load (per rail) C0 rad
max.
N
150
Weight
kg
1.36
Type
Right
l1
480
l2 stroke
560
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
12
Load (per rail) C0 rad
max.
N
200
Weight
kg
1.63
£ 326.81 per unit (click for quantity discounts)
Type
Right
l1
560
l2 stroke
640
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
14
Load (per rail) C0 rad
max.
N
240
Weight
kg
1.90
£ 373.41 per unit (click for quantity discounts)
Type
Right
l1
640
l2 stroke
720
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
16
Load (per rail) C0 rad
max.
N
280
Weight
kg
2.18
Type
Right
l1
720
l2 stroke
800
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
18
Load (per rail) C0 rad
max.
N
320
Weight
kg
2.45
£ 397.26 per unit (click for quantity discounts)
Type
Right
l1
800
l2 stroke
880
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
20
Load (per rail) C0 rad
max.
N
360
Weight
kg
2.72
£ 421.80 per unit (click for quantity discounts)
Type
Right
l1
880
l2 stroke
960
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
22
Load (per rail) C0 rad
max.
N
350
Weight
kg
2.99
£ 441.04 per unit (click for quantity discounts)
Type
Right
l1
960
l2 stroke
1040
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
24
Load (per rail) C0 rad
max.
N
310
Weight
kg
3.26
£ 468.93 per unit (click for quantity discounts)
Type
Right
l1
1040
l2 stroke
1120
h1
65.5
h2
36
l3
80
l4
40
w1
24.3
For screws d1
M5
No. of fixing holes (2 rails)
26
Load (per rail) C0 rad
max.
N
250
Weight
kg
3.54
£ 495.03 per unit (click for quantity discounts)
Type
l1
l2 stroke
h1
h2
l3
l4
w1
For screws d1
No. of fixing holes (2 rails)
Load (per rail) C0 rad
max.
N
Weight
kg
| Price & Availability | Article | Type | l1 | l2 stroke | h1 | h2 | l3 | l4 | w1 | For screws d1 | No. of fixing holes (2 rails) | Load (per rail) C0 rad max. N | Weight kg | |||||||||||||||
| L1989.30-0400L | Left | 400 | 480 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 10 | 150 | 1.36 | ||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Type Left | ||||||||||||||||||||||||||||
| L1989.30-0480L | Left | 480 | 560 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 12 | 200 | 1.63 | ||||||||||||||||
£ 326.81 per unit (click for quantity discounts) Ready to despatch 25 Need more? Please call us.
Type Left | ||||||||||||||||||||||||||||
| L1989.30-0560L | Left | 560 | 640 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 14 | 240 | 1.90 | ||||||||||||||||
£ 373.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Left | ||||||||||||||||||||||||||||
| L1989.30-0640L | Left | 640 | 720 | 65.5 | 280 | 80 | 40 | 24.3 | M5 | 16 | 280 | 2.18 | ||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Type Left | ||||||||||||||||||||||||||||
| L1989.30-0720L | Left | 720 | 800 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 18 | 320 | 2.45 | ||||||||||||||||
£ 397.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Left | ||||||||||||||||||||||||||||
| L1989.30-0800L | Left | 800 | 880 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 20 | 360 | 2.72 | ||||||||||||||||
£ 421.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Left | ||||||||||||||||||||||||||||
| L1989.30-0880L | Left | 880 | 960 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 22 | 350 | 2.99 | ||||||||||||||||
£ 441.04 per unit (click for quantity discounts) Ready to despatch 25 Need more? Please call us.
Type Left | ||||||||||||||||||||||||||||
| L1989.30-0960L | Left | 960 | 1040 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 24 | 310 | 3.26 | ||||||||||||||||
£ 468.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Left | ||||||||||||||||||||||||||||
| L1989.30-1040L | Left | 1040 | 1120 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 26 | 250 | 3.54 | ||||||||||||||||
£ 495.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Left | ||||||||||||||||||||||||||||
| L1989.30-0400R | Right | 400 | 480 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 10 | 150 | 1.36 | ||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Type Right | ||||||||||||||||||||||||||||
| L1989.30-0480R | Right | 480 | 560 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 12 | 200 | 1.63 | ||||||||||||||||
£ 326.81 per unit (click for quantity discounts) Ready to despatch 25 Need more? Please call us.
Type Right | ||||||||||||||||||||||||||||
| L1989.30-0560R | Right | 560 | 640 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 14 | 240 | 1.90 | ||||||||||||||||
£ 373.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Right | ||||||||||||||||||||||||||||
| L1989.30-0640R | Right | 640 | 720 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 16 | 280 | 2.18 | ||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Type Right | ||||||||||||||||||||||||||||
| L1989.30-0720R | Right | 720 | 800 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 18 | 320 | 2.45 | ||||||||||||||||
£ 397.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Right | ||||||||||||||||||||||||||||
| L1989.30-0800R | Right | 800 | 880 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 20 | 360 | 2.72 | ||||||||||||||||
£ 421.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Right | ||||||||||||||||||||||||||||
| L1989.30-0880R | Right | 880 | 960 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 22 | 350 | 2.99 | ||||||||||||||||
£ 441.04 per unit (click for quantity discounts) Ready to despatch 25 Need more? Please call us.
Type Right | ||||||||||||||||||||||||||||
| L1989.30-0960R | Right | 960 | 1040 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 24 | 310 | 3.26 | ||||||||||||||||
£ 468.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Right | ||||||||||||||||||||||||||||
| L1989.30-1040R | Right | 1040 | 1120 | 65.5 | 36 | 80 | 40 | 24.3 | M5 | 26 | 250 | 3.54 | ||||||||||||||||
£ 495.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Right | ||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (AISI 316L), bearings stainless steel (AISI 440). Bearings seals, type 2RS (splash-proof).
Technical Notes
Full stainless steel rails for washdown, pharmaceutical, medical and other applications.
Fixing screw - low height ISO 7380 or Torx screws on request.
Temperature range from
-30° to +100°C.
Tips
The bearings and wiper arrangement (rather than small ball bearings) provide a robust defence to dirt and other contaminants.
