Ball Slide Assemblies
precision
L1030 Low Profile Ball Slide Assemblies
high precision, material: Aluminium
Alternative products you may wish to consider
Stroke
Load
max.
kg
w1
l1
h1
l2
l3
l4
w2
h2
w3

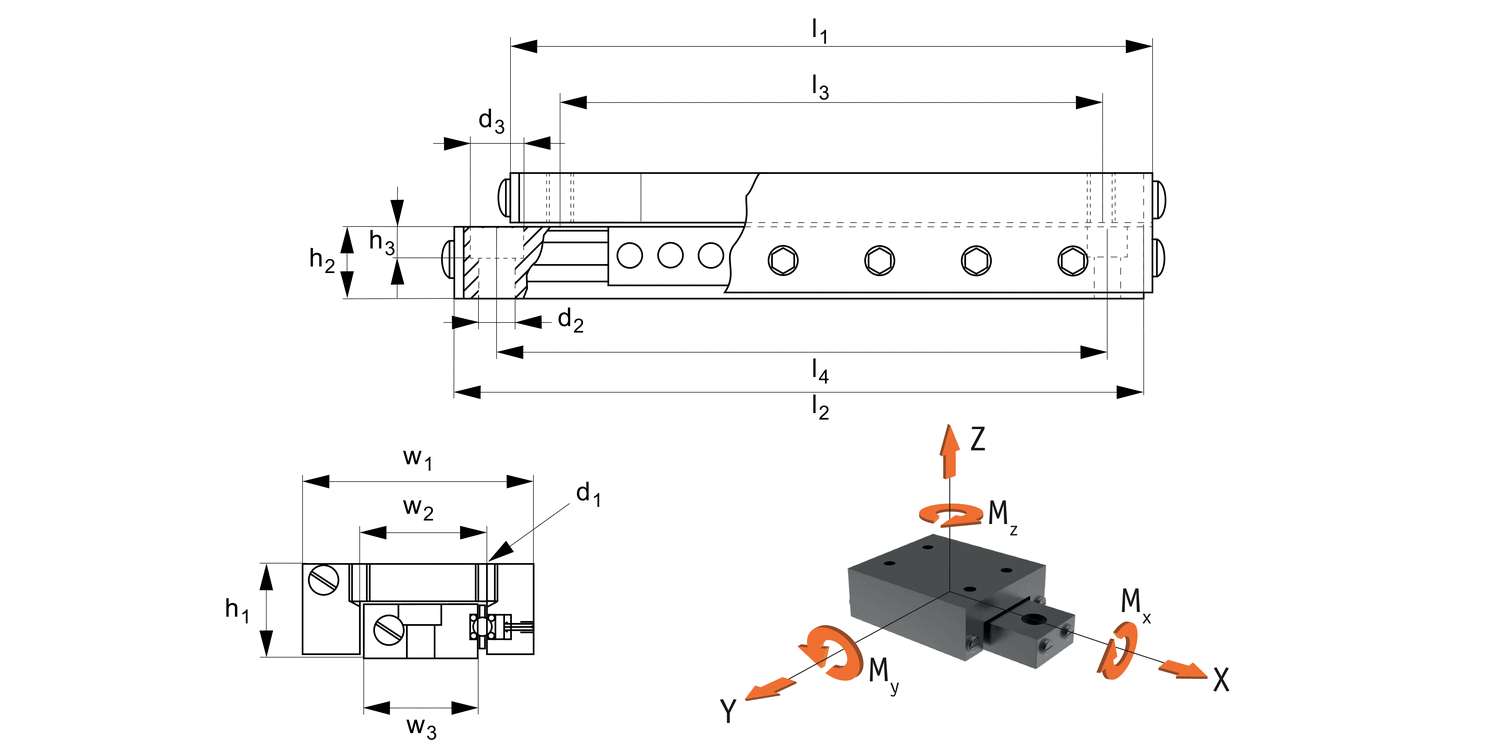

| Price & Availability | Article | Stroke | Load max. kg | w1 | l1 | h1 | l2 | l3 | l4 | w2 | h2 | w3 | ||||||||||||||||||
| L1030.025-013 | 13 | 3.6 | 25.4 | 25.4 | 12.7 | 31.8 | 15 | 20 | CL | 6.1 | 10.2 | |||||||||||||||||||
£ 213.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 13 Load
max.
kg 3.6 w1 25.4 l1 25.4 h1 12.7 l2 31.8 l3 15 l4 20 w2 CL h2 6.1 w3 10.2 | ||||||||||||||||||||||||||||||
| L1030.025-025 | 25 | 6.8 | 25.4 | 44.5 | 12.7 | 50.8 | 35 | 40 | CL | 6.1 | 10.2 | |||||||||||||||||||
£ 232.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 25 Load
max.
kg 6.8 w1 25.4 l1 44.5 h1 12.7 l2 50.8 l3 35 l4 40 w2 CL h2 6.1 w3 10.2 | ||||||||||||||||||||||||||||||
| L1030.025-038 | 38 | 11 | 25.4 | 63.5 | 12.7 | 69.9 | 54 | 57 | CL | 6.1 | 10.2 | |||||||||||||||||||
£ 243.94 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 38 Load
max.
kg 11 w1 25.4 l1 63.5 h1 12.7 l2 69.9 l3 54 l4 57 w2 CL h2 6.1 w3 10.2 | ||||||||||||||||||||||||||||||
| L1030.025-050 | 50 | 14 | 25.4 | 82.6 | 12.7 | 88.8 | 70 | 75 | CL | 6.1 | 10.2 | |||||||||||||||||||
£ 260.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 50 Load
max.
kg 14 w1 25.4 l1 82.6 h1 12.7 l2 88.8 l3 70 l4 75 w2 CL h2 6.1 w3 10.2 | ||||||||||||||||||||||||||||||
| L1030.045-025 | 25 | 11 | 44.5 | 50.8 | 19.0 | 57.2 | 35 | 40 | 20 | 10.2 | 22.1 | |||||||||||||||||||
£ 361.03 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us.
Stroke 25 Load
max.
kg 11 w1 44.5 l1 50.8 h1 19.0 l2 57.2 l3 35 l4 40 w2 20 h2 10.2 w3 22.1 | ||||||||||||||||||||||||||||||
| L1030.045-038 | 38 | 14 | 44.5 | 69.9 | 19.0 | 76.2 | 54 | 57 | 20 | 10.2 | 22.1 | |||||||||||||||||||
£ 418.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 38 Load
max.
kg 14 w1 44.5 l1 69.9 h1 19.0 l2 76.2 l3 54 l4 57 w2 20 h2 10.2 w3 22.1 | ||||||||||||||||||||||||||||||
| L1030.045-050 | 50 | 19 | 44.5 | 82.6 | 19.0 | 88.9 | 65 | 70 | 20 | 10.2 | 22.1 | |||||||||||||||||||
£ 444.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 50 Load
max.
kg 19 w1 44.5 l1 82.6 h1 19.0 l2 88.9 l3 65 l4 70 w2 20 h2 10.2 w3 22.1 | ||||||||||||||||||||||||||||||
| L1030.045-075 | 75 | 23 | 44.5 | 101.6 | 19.0 | 108.0 | 85 | 90 | 20 | 10.2 | 22.1 | |||||||||||||||||||
£ 466.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 75 Load
max.
kg 23 w1 44.5 l1 101.6 h1 19.0 l2 108.0 l3 85 l4 90 w2 20 h2 10.2 w3 22.1 | ||||||||||||||||||||||||||||||
| L1030.067-025 | 25 | 33 | 66.5 | 66.5 | 25.4 | 66.5 | 54 | 54 | 35 | 15.7 | 38.1 | |||||||||||||||||||
£ 401.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 25 Load
max.
kg 33 w1 66.5 l1 66.5 h1 25.4 l2 66.5 l3 54 l4 54 w2 35 h2 15.7 w3 38.1 | ||||||||||||||||||||||||||||||
| L1030.067-050 | 50 | 38 | 66.5 | 101.6 | 25.4 | 111.0 | 75 | 85 | 35 | 15.7 | 38.1 | |||||||||||||||||||
£ 457.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 50 Load
max.
kg 38 w1 66.5 l1 101.6 h1 25.4 l2 111.0 l3 75 l4 85 w2 35 h2 15.7 w3 38.1 | ||||||||||||||||||||||||||||||
| L1030.067-075 | 75 | 46 | 66.5 | 127.0 | 25.4 | 136.4 | 100 | 110 | 35 | 15.7 | 38.1 | |||||||||||||||||||
£ 478.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 75 Load
max.
kg 46 w1 66.5 l1 127.0 h1 25.4 l2 136.4 l3 100 l4 110 w2 35 h2 15.7 w3 38.1 | ||||||||||||||||||||||||||||||
| L1030.067-100 | 100 | 60 | 66.5 | 152.4 | 25.4 | 161.8 | 125 | 135 | 35 | 15.7 | 38.1 | |||||||||||||||||||
£ 518.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 100 Load
max.
kg 60 w1 66.5 l1 152.4 h1 25.4 l2 161.8 l3 125 l4 135 w2 35 h2 15.7 w3 38.1 | ||||||||||||||||||||||||||||||
| L1030.067-125 | 125 | 66 | 66.5 | 203.2 | 25.4 | 212.6 | 178 | 190 | 35 | 15.7 | 38.1 | |||||||||||||||||||
£ 582.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 125 Load
max.
kg 66 w1 66.5 l1 203.2 h1 25.4 l2 212.6 l3 178 l4 190 w2 35 h2 15.7 w3 38.1 | ||||||||||||||||||||||||||||||
| L1030.089-050 | 50 | 59 | 88.9 | 101.6 | 34.9 | 114.3 | 50 | 65 | 50 | 15.7 | 50.3 | |||||||||||||||||||
£ 518.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 50 Load
max.
kg 59 w1 88.9 l1 101.6 h1 34.9 l2 114.3 l3 50 l4 65 w2 50 h2 15.7 w3 50.3 | ||||||||||||||||||||||||||||||
| L1030.089-075 | 75 | 64 | 88.9 | 146.1 | 34.9 | 158.8 | 95 | 110 | 50 | 15.7 | 50.3 | |||||||||||||||||||
£ 557.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 75 Load
max.
kg 64 w1 88.9 l1 146.1 h1 34.9 l2 158.8 l3 95 l4 110 w2 50 h2 15.7 w3 50.3 | ||||||||||||||||||||||||||||||
| L1030.089-125 | 125 | 73 | 88.9 | 203.2 | 34.9 | 215.9 | 150 | 175 | 50 | 15.7 | 50.3 | |||||||||||||||||||
£ 649.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 125 Load
max.
kg 73 w1 88.9 l1 203.2 h1 34.9 l2 215.9 l3 150 l4 175 w2 50 h2 15.7 w3 50.3 | ||||||||||||||||||||||||||||||
| L1030.089-165 | 165 | 79 | 88.9 | 260.4 | 34.9 | 273.1 | 210 | 225 | 50 | 15.7 | 50.3 | |||||||||||||||||||
£ 777.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 165 Load
max.
kg 79 w1 88.9 l1 260.4 h1 34.9 l2 273.1 l3 210 l4 225 w2 50 h2 15.7 w3 50.3 | ||||||||||||||||||||||||||||||
| L1030.089-225 | 225 | 91 | 88.9 | 355.6 | 34.9 | 368.3 | 305 | 320 | 50 | 15.7 | 50.3 | |||||||||||||||||||
£ 1,076.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 225 Load
max.
kg 91 w1 88.9 l1 355.6 h1 34.9 l2 368.3 l3 305 l4 320 w2 50 h2 15.7 w3 50.3 | ||||||||||||||||||||||||||||||
| L1030.146-125 | 125 | 68 | 146.1 | 209.6 | 50.8 | 222.3 | 150 | 175 | 100 | 24.9 | 94.0 | |||||||||||||||||||
£ 998.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 125 Load
max.
kg 68 w1 146.1 l1 209.6 h1 50.8 l2 222.3 l3 150 l4 175 w2 100 h2 24.9 w3 94.0 | ||||||||||||||||||||||||||||||
| L1030.146-175 | 175 | 82 | 146.1 | 304.8 | 50.8 | 317.5 | 250 | 275 | 100 | 24.9 | 94.0 | |||||||||||||||||||
£ 1,216.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 175 Load
max.
kg 82 w1 146.1 l1 304.8 h1 50.8 l2 317.5 l3 250 l4 275 w2 100 h2 24.9 w3 94.0 | ||||||||||||||||||||||||||||||
| L1030.146-250 | 250 | 102 | 146.1 | 381.0 | 50.8 | 393.7 | 330 | 350 | 100 | 24.9 | 94.0 | |||||||||||||||||||
£ 1,545.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Stroke 250 Load
max.
kg 102 w1 146.1 l1 381.0 h1 50.8 l2 393.7 l3 330 l4 350 w2 100 h2 24.9 w3 94.0 | ||||||||||||||||||||||||||||||
Weight
g
h3
d1
d2
d3
Moment Mx
max.
Nm
Moment My
max.
Nm
Moment Mz
max.
Nm
| Price & Availability | Article | Weight g | h3 | d1 | d2 | d3 | Moment Mx max. Nm | Moment My max. Nm | Moment Mz max. Nm | ||||||||||||||||||
| L1030.025-013 | 27 | 3.4 | M3 | 3.5 | 6.1 | 0.3 | 0.4 | 0.40 | |||||||||||||||||||
£ 213.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 27 h3 3.4 d1 M3 d2 3.5 d3 6.1 Moment Mx
max.
Nm 0.3 Moment My
max.
Nm 0.4 Moment Mz
max.
Nm 0.40 | |||||||||||||||||||||||||||
| L1030.025-025 | 50 | 3.4 | M3 | 3.5 | 6.1 | 0.4 | 1.0 | 1.1 | |||||||||||||||||||
£ 232.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 50 h3 3.4 d1 M3 d2 3.5 d3 6.1 Moment Mx
max.
Nm 0.4 Moment My
max.
Nm 1.0 Moment Mz
max.
Nm 1.1 | |||||||||||||||||||||||||||
| L1030.025-038 | 73 | 3.4 | M3 | 3.5 | 6.1 | 0.5 | 1.8 | 1.8 | |||||||||||||||||||
£ 243.94 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 73 h3 3.4 d1 M3 d2 3.5 d3 6.1 Moment Mx
max.
Nm 0.5 Moment My
max.
Nm 1.8 Moment Mz
max.
Nm 1.8 | |||||||||||||||||||||||||||
| L1030.025-050 | 91 | 3.4 | M3 | 3.5 | 6.1 | 0.7 | 2.6 | 3.7 | |||||||||||||||||||
£ 260.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 91 h3 3.4 d1 M3 d2 3.5 d3 6.1 Moment Mx
max.
Nm 0.7 Moment My
max.
Nm 2.6 Moment Mz
max.
Nm 3.7 | |||||||||||||||||||||||||||
| L1030.045-025 | 127 | 4.6 | M4 | 4.6 | 8.1 | 1.0 | 0.9 | 0.9 | |||||||||||||||||||
£ 361.03 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us.
Weight
g 127 h3 4.6 d1 M4 d2 4.6 d3 8.1 Moment Mx
max.
Nm 1.0 Moment My
max.
Nm 0.9 Moment Mz
max.
Nm 0.9 | |||||||||||||||||||||||||||
| L1030.045-038 | 172 | 4.6 | M4 | 4.6 | 8.1 | 1.4 | 2.0 | 2.1 | |||||||||||||||||||
£ 418.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 172 h3 4.6 d1 M4 d2 4.6 d3 8.1 Moment Mx
max.
Nm 1.4 Moment My
max.
Nm 2.0 Moment Mz
max.
Nm 2.1 | |||||||||||||||||||||||||||
| L1030.045-050 | 209 | 4.6 | M4 | 4.6 | 8.1 | 2.0 | 3.3 | 3.5 | |||||||||||||||||||
£ 444.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 209 h3 4.6 d1 M4 d2 4.6 d3 8.1 Moment Mx
max.
Nm 2.0 Moment My
max.
Nm 3.3 Moment Mz
max.
Nm 3.5 | |||||||||||||||||||||||||||
| L1030.045-075 | 254 | 4.6 | M4 | 4.6 | 8.1 | 2.5 | 4.7 | 4.9 | |||||||||||||||||||
£ 466.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 254 h3 4.6 d1 M4 d2 4.6 d3 8.1 Moment Mx
max.
Nm 2.5 Moment My
max.
Nm 4.7 Moment Mz
max.
Nm 4.9 | |||||||||||||||||||||||||||
| L1030.067-025 | 299 | 5.3 | M5 | 5.8 | 10.0 | 4.6 | 3.8 | 4.0 | |||||||||||||||||||
£ 401.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 299 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 4.6 Moment My
max.
Nm 3.8 Moment Mz
max.
Nm 4.0 | |||||||||||||||||||||||||||
| L1030.067-050 | 454 | 5.3 | M5 | 5.8 | 10.0 | 6.9 | 9.3 | 9.8 | |||||||||||||||||||
£ 457.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 454 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 6.9 Moment My
max.
Nm 9.3 Moment Mz
max.
Nm 9.8 | |||||||||||||||||||||||||||
| L1030.067-075 | 567 | 5.3 | M5 | 5.8 | 10.0 | 8.4 | 14.5 | 15.3 | |||||||||||||||||||
£ 478.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 567 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 8.4 Moment My
max.
Nm 14.5 Moment Mz
max.
Nm 15.3 | |||||||||||||||||||||||||||
| L1030.067-100 | 680 | 5.3 | M5 | 5.8 | 10.0 | 10.9 | 23.0 | 24.1 | |||||||||||||||||||
£ 518.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 680 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 10.9 Moment My
max.
Nm 23.0 Moment Mz
max.
Nm 24.1 | |||||||||||||||||||||||||||
| L1030.067-125 | 907 | 5.3 | M5 | 5.8 | 10.0 | 11.9 | 34.4 | 36.1 | |||||||||||||||||||
£ 582.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 907 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 11.9 Moment My
max.
Nm 34.4 Moment Mz
max.
Nm 36.1 | |||||||||||||||||||||||||||
| L1030.089-050 | 907 | 5.3 | M5 | 5.8 | 10.0 | 11.1 | 32.0 | 33.6 | |||||||||||||||||||
£ 518.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 907 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 11.1 Moment My
max.
Nm 32.0 Moment Mz
max.
Nm 33.6 | |||||||||||||||||||||||||||
| L1030.089-075 | 1306 | 5.3 | M5 | 5.8 | 10.0 | 12.4 | 40.3 | 42.4 | |||||||||||||||||||
£ 557.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 1306 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 12.4 Moment My
max.
Nm 40.3 Moment Mz
max.
Nm 42.4 | |||||||||||||||||||||||||||
| L1030.089-125 | 1814 | 5.3 | M5 | 5.8 | 10.0 | 14.1 | 52.6 | 53.7 | |||||||||||||||||||
£ 649.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 1814 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 14.1 Moment My
max.
Nm 52.6 Moment Mz
max.
Nm 53.7 | |||||||||||||||||||||||||||
| L1030.089-165 | 2327 | 5.3 | M5 | 5.8 | 10.0 | 15.2 | 61.5 | 64.5 | |||||||||||||||||||
£ 777.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 2327 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 15.2 Moment My
max.
Nm 61.5 Moment Mz
max.
Nm 64.5 | |||||||||||||||||||||||||||
| L1030.089-225 | 3175 | 5.3 | M5 | 5.8 | 10.0 | 16.9 | 81.1 | 85.1 | |||||||||||||||||||
£ 1,076.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 3175 h3 5.3 d1 M5 d2 5.8 d3 10.0 Moment Mx
max.
Nm 16.9 Moment My
max.
Nm 81.1 Moment Mz
max.
Nm 85.1 | |||||||||||||||||||||||||||
| L1030.146-125 | 4536 | 6.2 | M6 | 7.1 | 11.0 | 16.2 | 60.5 | 61.8 | |||||||||||||||||||
£ 998.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 4536 h3 6.2 d1 M6 d2 7.1 d3 11.0 Moment Mx
max.
Nm 16.2 Moment My
max.
Nm 60.5 Moment Mz
max.
Nm 61.8 | |||||||||||||||||||||||||||
| L1030.146-175 | 6586 | 6.2 | M6 | 7.1 | 11.0 | 17.5 | 70.7 | 74.2 | |||||||||||||||||||
£ 1,216.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 6586 h3 6.2 d1 M6 d2 7.1 d3 11.0 Moment Mx
max.
Nm 17.5 Moment My
max.
Nm 70.7 Moment Mz
max.
Nm 74.2 | |||||||||||||||||||||||||||
| L1030.146-250 | 8233 | 6.2 | M6 | 7.1 | 11.0 | 19.4 | 93.2 | 97.9 | |||||||||||||||||||
£ 1,545.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
g 8233 h3 6.2 d1 M6 d2 7.1 d3 11.0 Moment Mx
max.
Nm 19.4 Moment My
max.
Nm 93.2 Moment Mz
max.
Nm 97.9 | |||||||||||||||||||||||||||
Technical & Application
Material
Aluminium carriage and base.
Hardened stainless steel balls, shafts and preload gibs.
Technical Notes
Straight line accuracy: 1µ/25mm of travel.
Positional repeatability: 0.5µ.
Coefficient of friction: 0,002.
Carriage surface flat to 3µ/25mm. Carriage and base ground to optical flatness.
Tips
Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
Product Datasheets
CAD files
Application images
This content is not visible because of your cookie settings.
Automotion Components
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
sales@automotioncomponents.co.uk
Route via Google Maps
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
sales@automotioncomponents.co.uk
Route via Google Maps
Company registration no: 00496138
Company VAT number GB 408154022
