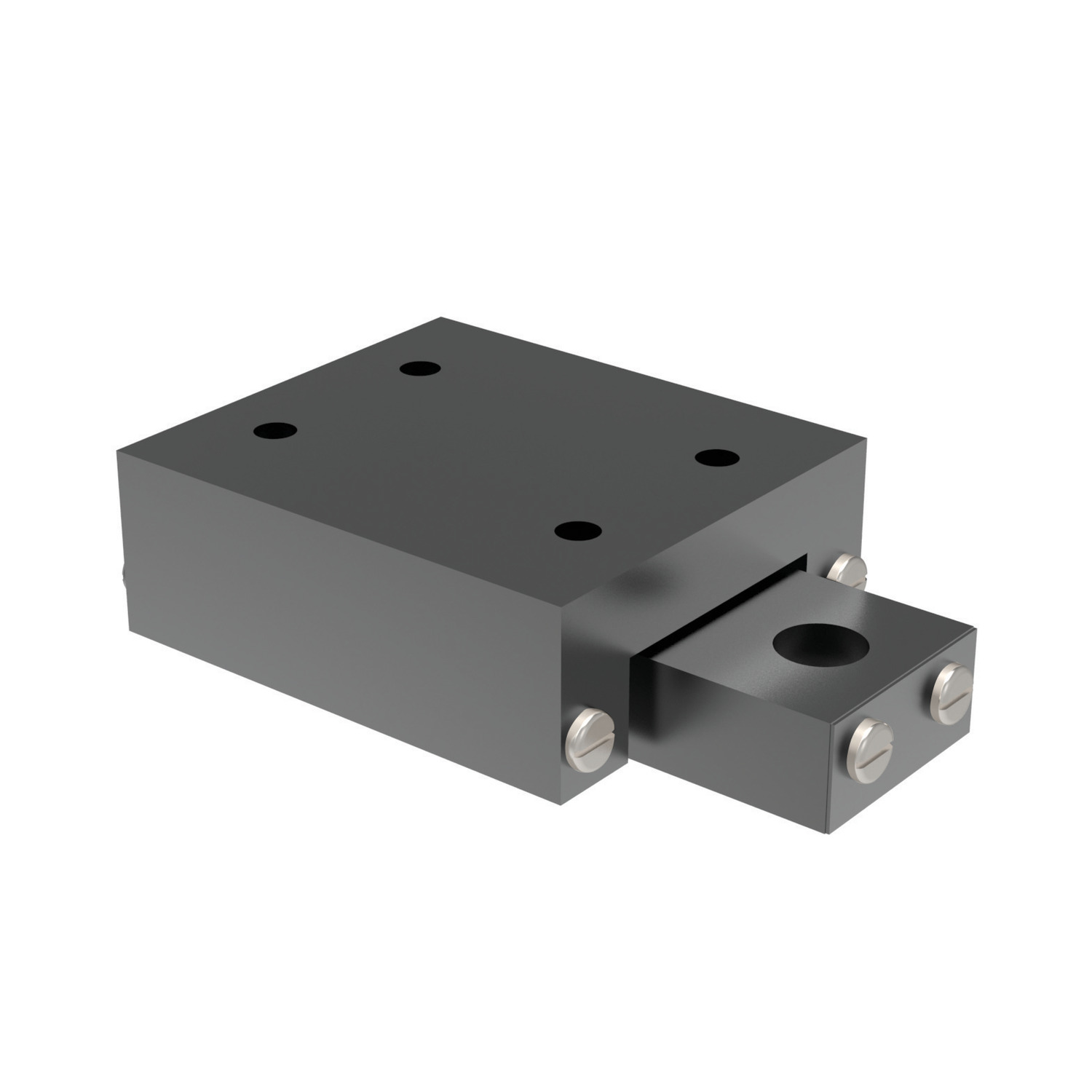

L1030 Low Profile Ball Slide Assemblies

Name: L1030.089-225
Brand: WC
SKU: L1030.089-225
Price: 1076.11 EUR
Availability: OutOfStock

high precision, material: Aluminium

Article properties

Order No.

L1030.089-225

Stroke

225

Load max. kg

w₁

88.9

l₁

355.6

h₁

34.9

l₂

368.3

l₃

305

l₄

320

w₂

h₂

15.7

w₃

50.3

Weight g

3175

h₃

5.3

d₁

d₂

5.8

d₃

10.0

Moment M_x max. Nm

16.9

Moment M_y max. Nm

81.1

Moment M_z max. Nm

85.1

See full product selection

£ 1,076.11 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 1,076.11	0%
5-9	£ 968.50	10%
10-19	£ 914.69	15%
20-49	£ 807.08	25%
50+	£ 699.47	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Aluminium carriage and base.
Hardened stainless steel balls, shafts and preload gibs.

Technical Notes

Straight line accuracy: 1µ/25mm of travel.
Positional repeatability: 0.5µ.
Coefficient of friction: 0,002.
Carriage surface flat to 3µ/25mm. Carriage and base ground to optical flatness.

Tips

Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
