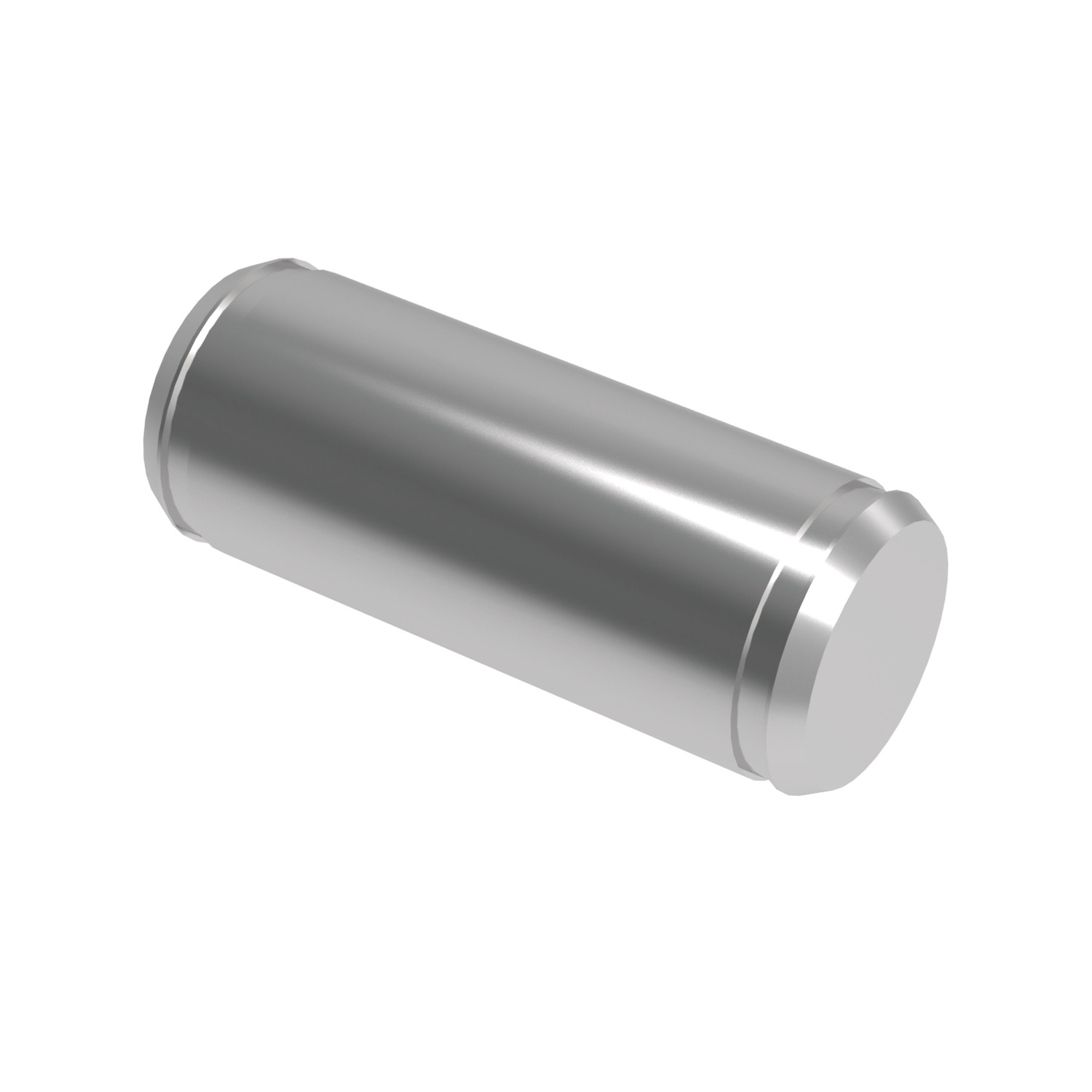

R3454 Stainless Clevis Pin

Name: R3454.016
Brand: WC
SKU: R3454.016
Price: 5.51 EUR
Availability: InStock

material: Stainless steel

Article properties

Order No.

R3454.016

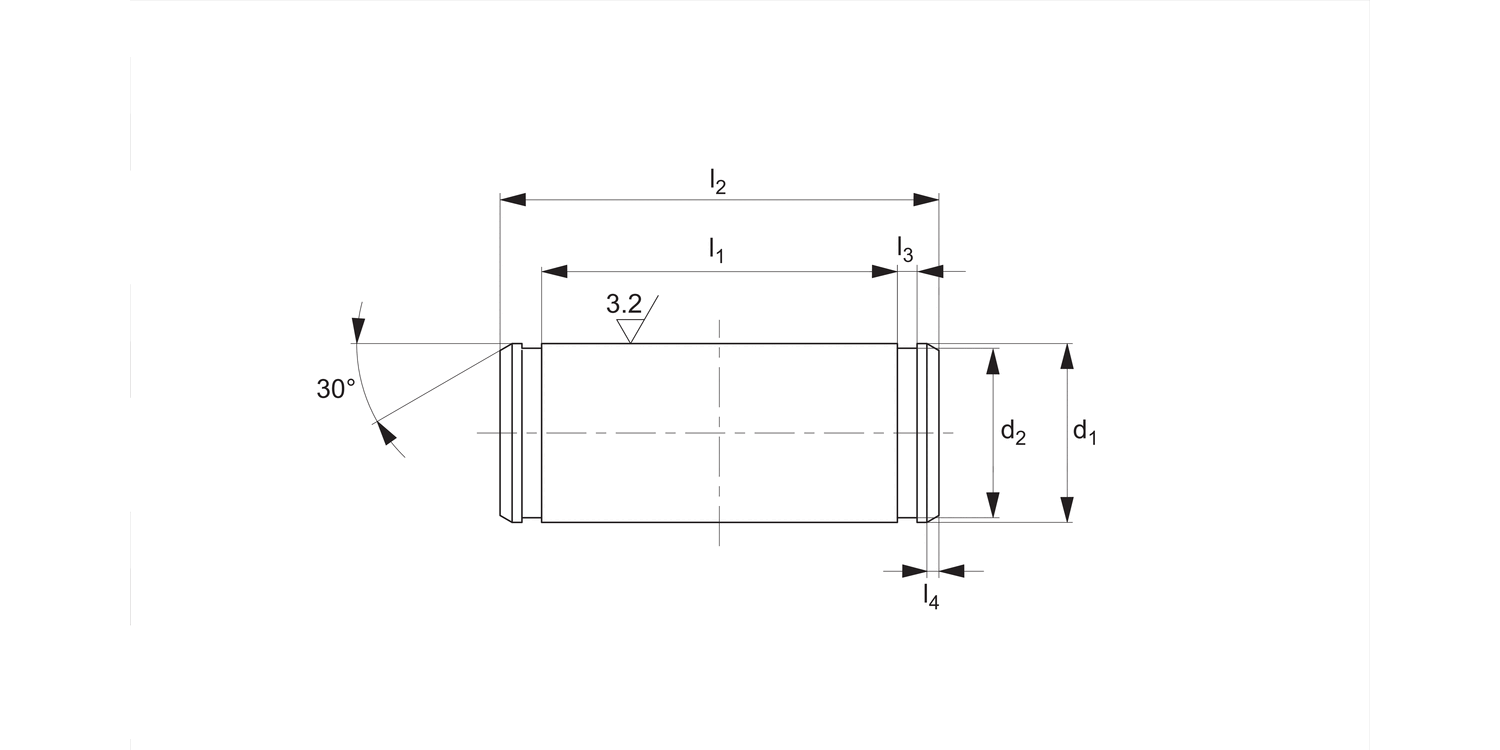

d₁ tol. h11

d₂ tol. h11

15.2

l₁ +0.30

32.5

l₂ +0.40

l₃ tol. h13

1.1

l₄

Weight g

See full product selection

£ 5.51 per unit (click for quantity discounts)

Ready to despatch 116
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-499	£ 5.51	0%
500-999	£ 4.13	25%
1000+	£ 3.58	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel (AISI 303).

Technical Notes

For use with R3402-R3403 clevis joints and R3447 circlips.

Product Datasheets

R3454 Stainless Clevis PinJune 19, 2025, 4:57 PM / 1.41 MB

Clevis Pins & ClipsJune 19, 2025, 4:51 PM / 3.59 MB

Clevis Joints & ClipsJune 19, 2025, 4:46 PM / 10.39 MB

Clevis Joints, Turnbuckles & Ball & Socket JointJune 19, 2025, 4:41 PM / 21.48 MB

Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB

CAD files

R3454 AcisJune 11, 2011, 4:07 PM / 31.84 kB

R3454 IGESJune 11, 2011, 4:07 PM / 112.03 kB

R3454 ParasolidJune 11, 2011, 4:07 PM / 22.73 kB

R3454 ProEJune 11, 2011, 4:07 PM / 107.82 kB

R3454 SolidWorksJune 11, 2011, 4:07 PM / 670.41 kB

R3454 StepJune 11, 2011, 4:07 PM / 49.64 kB
