R3444 Safety Fastener (KLM)

silver zinc plated, material: Steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Clevis Retention Clips

Clevis Retention Clips
Steel

Clevis Retention Clips Inch
Steel

Plastic Clevis Retention Clips

SLM Safety Fastener
Steel

SLM Safety Fastener Inch
Steel

KLM Safety fastener
Steel

KLM safety fastener
Steel

Plastic Circlips

Stainless Circlips

Steel Cotter Pins

Stainless Cotter Pins

Clevis Pin

NBI Clevis Pins Inch

Plastic Clevis Pin

Stainless Clevis Pin

Steel Clevis Pin
with hole

Stainless Clevis Pin
with hole

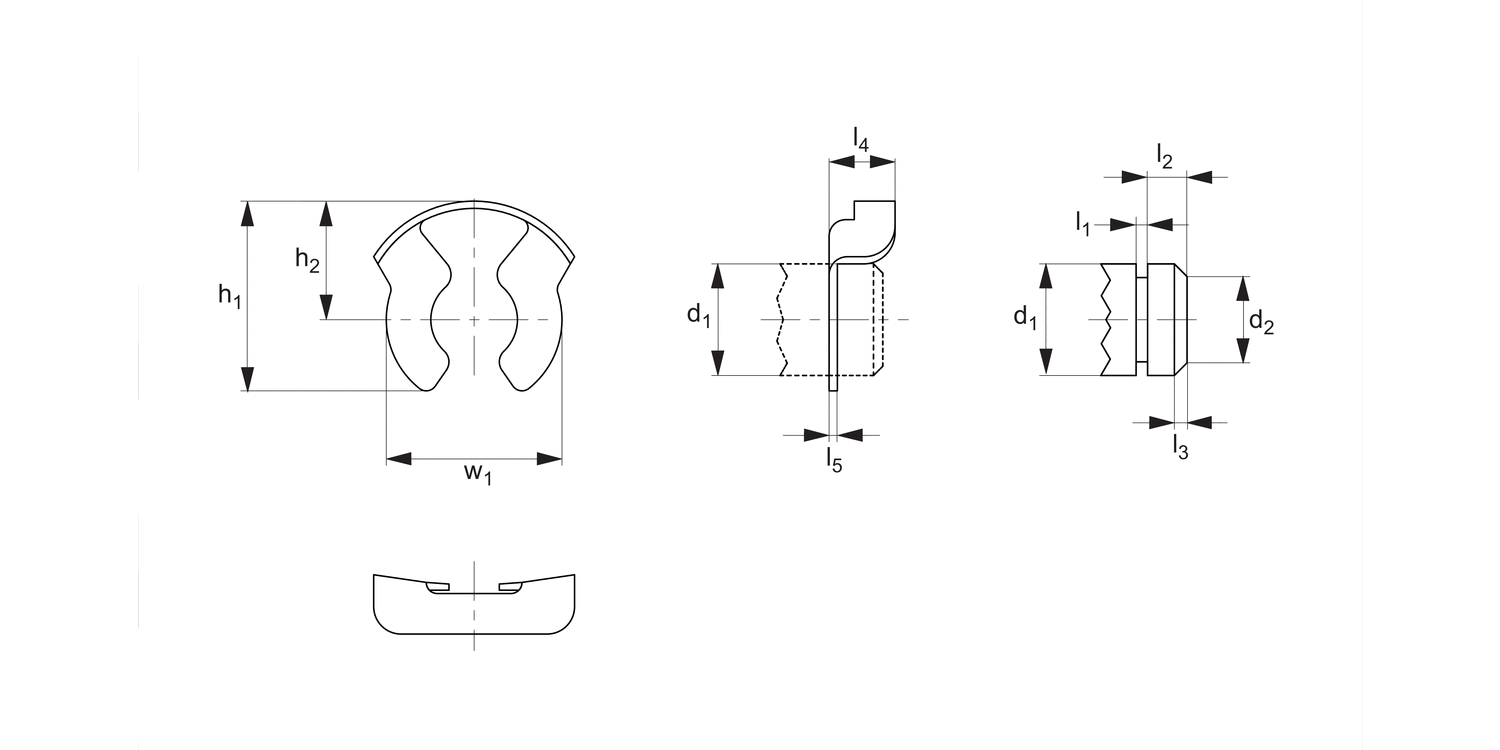

KLM Safety Fastener Ø4 ZP EC:20212513 WG:05063055063906

R3444.004

d₁ tol. h11

4

d₂ tol. h11

3.2

h₁

7.2

h₂

4.3

l₁ +0.10

0.64

l₂

2.0

l₃

0.5

l₄

2.8

l₅

0.4

w

6.6

Axial force max. kN

1.50

£ 0.15 per unit (click for quantity discounts)

KLM Safety Fastener Ø5 ZP EC:20212520 WG:05063055063913

R3444.005

d₁ tol. h11

5

d₂ tol. h11

4.0

h₁

8.4

h₂

5.2

l₁ +0.10

0.74

l₂

2.5

l₃

0.5

l₄

2.8

l₅

0.5

w

7.5

Axial force max. kN

3.00

£ 0.15 per unit (click for quantity discounts)

KLM Safety Fastener Ø6 ZP EC:20212537 WG:05063055063920

R3444.006

d₁ tol. h11

6

d₂ tol. h11

5.0

h₁

11.25

h₂

6.8

l₁ +0.10

0.74

l₂

3.0

l₃

0.75

l₄

3.5

l₅

0.5

w

10.6

Axial force max. kN

4.85

£ 0.10 per unit (click for quantity discounts)

KLM Safety Fastener Ø8 ZP EC:20212544 WG:05063055063937

R3444.008

d₁ tol. h11

8

d₂ tol. h11

6.0

h₁

11.9

h₂

7.4

l₁ +0.10

0.94

l₂

3.5

l₃

1.0

l₄

4.5

l₅

0.5

w

11.5

Axial force max. kN

5.50

£ 0.15 per unit (click for quantity discounts)

KLM Safety Fastener Ø10 ZP EC:20212551 WG:05063055063944

R3444.010

d₁ tol. h11

10

d₂ tol. h11

8.0

h₁

16.3

h₂

9.5

l₁ +0.10

1.05

l₂

4.5

l₃

1.0

l₄

5.9

l₅

0.6

w

15.5

Axial force max. kN

9.50

£ 0.19 per unit (click for quantity discounts)

KLM Safety Fastener Ø12 ZP EC:20212568 WG:05063055063951

R3444.012

d₁ tol. h11

12

d₂ tol. h11

9.0

h₁

18.0

h₂

10.5

l₁ +0.10

1.15

l₂

5.5

l₃

1.25

l₄

6.2

l₅

0.6

w

16.8

Axial force max. kN

10.70

£ 0.19 per unit (click for quantity discounts)

KLM Safety Fastener Ø14 ZP EC:20212575 WG:05063055063968

R3444.014

d₁ tol. h11

14

d₂ tol. h11

10.0

h₁

20.0

h₂

12.2

l₁ +0.10

1.25

l₂

5.5

l₃

1.5

l₄

6.8

l₅

0.7

w

19.2

Axial force max. kN

12.70

£ 0.28 per unit (click for quantity discounts)

KLM Safety Fastener Ø16-18 ZP for sizes 16 & 18 EC:20212582 WG:05063055063975

R3444.016

d₁ tol. h11

16-18

d₂ tol. h11

12.0

h₁

24.0

h₂

14.3

l₁ +0.10

1.35

l₂

5,5-6,0

l₃

1.5

l₄

7.6

l₅

0.8

w

22.7

Axial force max. kN

14.00

£ 0.97 per unit (click for quantity discounts)

KLM Safety Fastener Ø20-24 ZP for sizes 20 & 24 EC:20212599 WG:05063055063982

R3444.024

d₁ tol. h11

20-25

d₂ tol. h11

16-18

h₁

34.0

h₂

19.0

l₁ +0.10

1.80

l₂

5,5-6,5

l₃

1.5

l₄

9.8

l₅

1.0

w

34.0

Axial force max. kN

16.00

£ 1.10 per unit (click for quantity discounts)

KLM Safety Fastener Ø4 ZP EC:20212513 WG:05063055063906

R3444.004

d₁ tol. h11

4

d₂ tol. h11

3.2

h₁

7.2

h₂

4.3

l₁ +0.10

0.64

l₂

2.0

l₃

0.5

l₄

2.8

l₅

0.4

w

6.6

Axial force max. kN

1.50

£ 0.15 per unit (click for quantity discounts)

KLM Safety Fastener Ø5 ZP EC:20212520 WG:05063055063913

R3444.005

d₁ tol. h11

5

d₂ tol. h11

4.0

h₁

8.4

h₂

5.2

l₁ +0.10

0.74

l₂

2.5

l₃

0.5

l₄

2.8

l₅

0.5

w

7.5

Axial force max. kN

3.00

£ 0.15 per unit (click for quantity discounts)

KLM Safety Fastener Ø6 ZP EC:20212537 WG:05063055063920

R3444.006

d₁ tol. h11

6

d₂ tol. h11

5.0

h₁

11.25

h₂

6.8

l₁ +0.10

0.74

l₂

3.0

l₃

0.75

l₄

3.5

l₅

0.5

w

10.6

Axial force max. kN

4.85

£ 0.10 per unit (click for quantity discounts)

KLM Safety Fastener Ø8 ZP EC:20212544 WG:05063055063937

R3444.008

d₁ tol. h11

8

d₂ tol. h11

6.0

h₁

11.9

h₂

7.4

l₁ +0.10

0.94

l₂

3.5

l₃

1.0

l₄

4.5

l₅

0.5

w

11.5

Axial force max. kN

5.50

£ 0.15 per unit (click for quantity discounts)

KLM Safety Fastener Ø10 ZP EC:20212551 WG:05063055063944

R3444.010

d₁ tol. h11

10

d₂ tol. h11

8.0

h₁

16.3

h₂

9.5

l₁ +0.10

1.05

l₂

4.5

l₃

1.0

l₄

5.9

l₅

0.6

w

15.5

Axial force max. kN

9.50

£ 0.19 per unit (click for quantity discounts)

KLM Safety Fastener Ø12 ZP EC:20212568 WG:05063055063951

R3444.012

d₁ tol. h11

12

d₂ tol. h11

9.0

h₁

18.0

h₂

10.5

l₁ +0.10

1.15

l₂

5.5

l₃

1.25

l₄

6.2

l₅

0.6

w

16.8

Axial force max. kN

10.70

£ 0.19 per unit (click for quantity discounts)

KLM Safety Fastener Ø14 ZP EC:20212575 WG:05063055063968

R3444.014

d₁ tol. h11

14

d₂ tol. h11

10.0

h₁

20.0

h₂

12.2

l₁ +0.10

1.25

l₂

5.5

l₃

1.5

l₄

6.8

l₅

0.7

w

19.2

Axial force max. kN

12.70

£ 0.28 per unit (click for quantity discounts)

KLM Safety Fastener Ø16-18 ZP for sizes 16 & 18 EC:20212582 WG:05063055063975

R3444.016

d₁ tol. h11

16-18

d₂ tol. h11

12.0

h₁

24.0

h₂

14.3

l₁ +0.10

1.35

l₂

5,5-6,0

l₃

1.5

l₄

7.6

l₅

0.8

w

22.7

Axial force max. kN

14.00

£ 0.97 per unit (click for quantity discounts)

KLM Safety Fastener Ø20-24 ZP for sizes 20 & 24 EC:20212599 WG:05063055063982

R3444.024

d₁ tol. h11

20-25

d₂ tol. h11

16-18

h₁

34.0

h₂

19.0

l₁ +0.10

1.80

l₂

5,5-6,5

l₃

1.5

l₄

9.8

l₅

1.0

w

34.0

Axial force max. kN

16.00

£ 1.10 per unit (click for quantity discounts)



Select all

d₁ tol. h11

d₂ tol. h11

h₁

h₂

l₁ +0.10

l₂

l₃

l₄

l₅

w

Axial force max. kN

Price & Availability	Article	d1 tol. h11	d2 tol. h11	h1	h2	l1 +0.10	l2	l3	l4	l5	w	Axial force max. kN
	R3444.004	4	3.2	7.2	4.3	0.64	2.0	0.5	2.8	0.4	6.6	1.50
£ 0.15 per unit (click for quantity discounts) Ready to despatch 4521 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-999 £ 0.15 0% 1000-4999 £ 0.14 10% 5000-7499 £ 0.12 20% 7500+ £ 0.11 25% d1 tol. h11 4 d2 tol. h11 3.2 h1 7.2 h2 4.3 l1 +0.10 0.64 l2 2.0 l3 0.5 l4 2.8 l5 0.4 w 6.6 Axial force max. kN 1.50 more info »
	R3444.005	5	4.0	8.4	5.2	0.74	2.5	0.5	2.8	0.5	7.5	3.00
£ 0.15 per unit (click for quantity discounts) Ready to despatch 1980 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-999 £ 0.15 0% 1000-4999 £ 0.14 10% 5000-7499 £ 0.12 20% 7500+ £ 0.11 25% d1 tol. h11 5 d2 tol. h11 4.0 h1 8.4 h2 5.2 l1 +0.10 0.74 l2 2.5 l3 0.5 l4 2.8 l5 0.5 w 7.5 Axial force max. kN 3.00 more info »
	R3444.006	6	5.0	11.25	6.8	0.74	3.0	0.75	3.5	0.5	10.6	4.85
£ 0.10 per unit (click for quantity discounts) Ready to despatch 31215 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-999 £ 0.10 0% 1000-4999 £ 0.09 10% 5000-7499 £ 0.08 20% 7500+ £ 0.08 25% d1 tol. h11 6 d2 tol. h11 5.0 h1 11.25 h2 6.8 l1 +0.10 0.74 l2 3.0 l3 0.75 l4 3.5 l5 0.5 w 10.6 Axial force max. kN 4.85 more info »
	R3444.008	8	6.0	11.9	7.4	0.94	3.5	1.0	4.5	0.5	11.5	5.50
£ 0.15 per unit (click for quantity discounts) Ready to despatch 10451 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-999 £ 0.15 0% 1000-4999 £ 0.14 10% 5000-7499 £ 0.12 20% 7500+ £ 0.11 25% d1 tol. h11 8 d2 tol. h11 6.0 h1 11.9 h2 7.4 l1 +0.10 0.94 l2 3.5 l3 1.0 l4 4.5 l5 0.5 w 11.5 Axial force max. kN 5.50 more info »
	R3444.010	10	8.0	16.3	9.5	1.05	4.5	1.0	5.9	0.6	15.5	9.50
£ 0.19 per unit (click for quantity discounts) Ready to despatch 7771 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-999 £ 0.19 0% 1000-4999 £ 0.17 10% 5000-7499 £ 0.15 20% 7500+ £ 0.14 25% d1 tol. h11 10 d2 tol. h11 8.0 h1 16.3 h2 9.5 l1 +0.10 1.05 l2 4.5 l3 1.0 l4 5.9 l5 0.6 w 15.5 Axial force max. kN 9.50 more info »
	R3444.012	12	9.0	18.0	10.5	1.15	5.5	1.25	6.2	0.6	16.8	10.70
£ 0.19 per unit (click for quantity discounts) Ready to despatch 11573 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-999 £ 0.19 0% 1000-4999 £ 0.17 10% 5000-7499 £ 0.15 20% 7500+ £ 0.14 25% d1 tol. h11 12 d2 tol. h11 9.0 h1 18.0 h2 10.5 l1 +0.10 1.15 l2 5.5 l3 1.25 l4 6.2 l5 0.6 w 16.8 Axial force max. kN 10.70 more info »
	R3444.014	14	10.0	20.0	12.2	1.25	5.5	1.5	6.8	0.7	19.2	12.70
£ 0.28 per unit (click for quantity discounts) Ready to despatch 3023 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-999 £ 0.28 0% 1000-4999 £ 0.25 10% 5000-7499 £ 0.22 20% 7500+ £ 0.21 25% d1 tol. h11 14 d2 tol. h11 10.0 h1 20.0 h2 12.2 l1 +0.10 1.25 l2 5.5 l3 1.5 l4 6.8 l5 0.7 w 19.2 Axial force max. kN 12.70 more info »
	R3444.016	16-18	12.0	24.0	14.3	1.35	5,5-6,0	1.5	7.6	0.8	22.7	14.00
£ 0.97 per unit (click for quantity discounts) Ready to despatch 6448 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 0.97 0% 50-99 £ 0.78 20% 100-199 £ 0.73 25% 200-499 £ 0.68 30% 500-999 £ 0.63 35% 1000+ £ 0.58 40% d1 tol. h11 16-18 d2 tol. h11 12.0 h1 24.0 h2 14.3 l1 +0.10 1.35 l2 5,5-6,0 l3 1.5 l4 7.6 l5 0.8 w 22.7 Axial force max. kN 14.00 more info »
	R3444.024	20-25	16-18	34.0	19.0	1.80	5,5-6,5	1.5	9.8	1.0	34.0	16.00
£ 1.10 per unit (click for quantity discounts) Ready to despatch 291 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-499 £ 1.10 0% 500-999 £ 0.83 25% 1000+ £ 0.72 35% d1 tol. h11 20-25 d2 tol. h11 16-18 h1 34.0 h2 19.0 l1 +0.10 1.80 l2 5,5-6,5 l3 1.5 l4 9.8 l5 1.0 w 34.0 Axial force max. kN 16.00 more info »
