Clevis Retention Clips

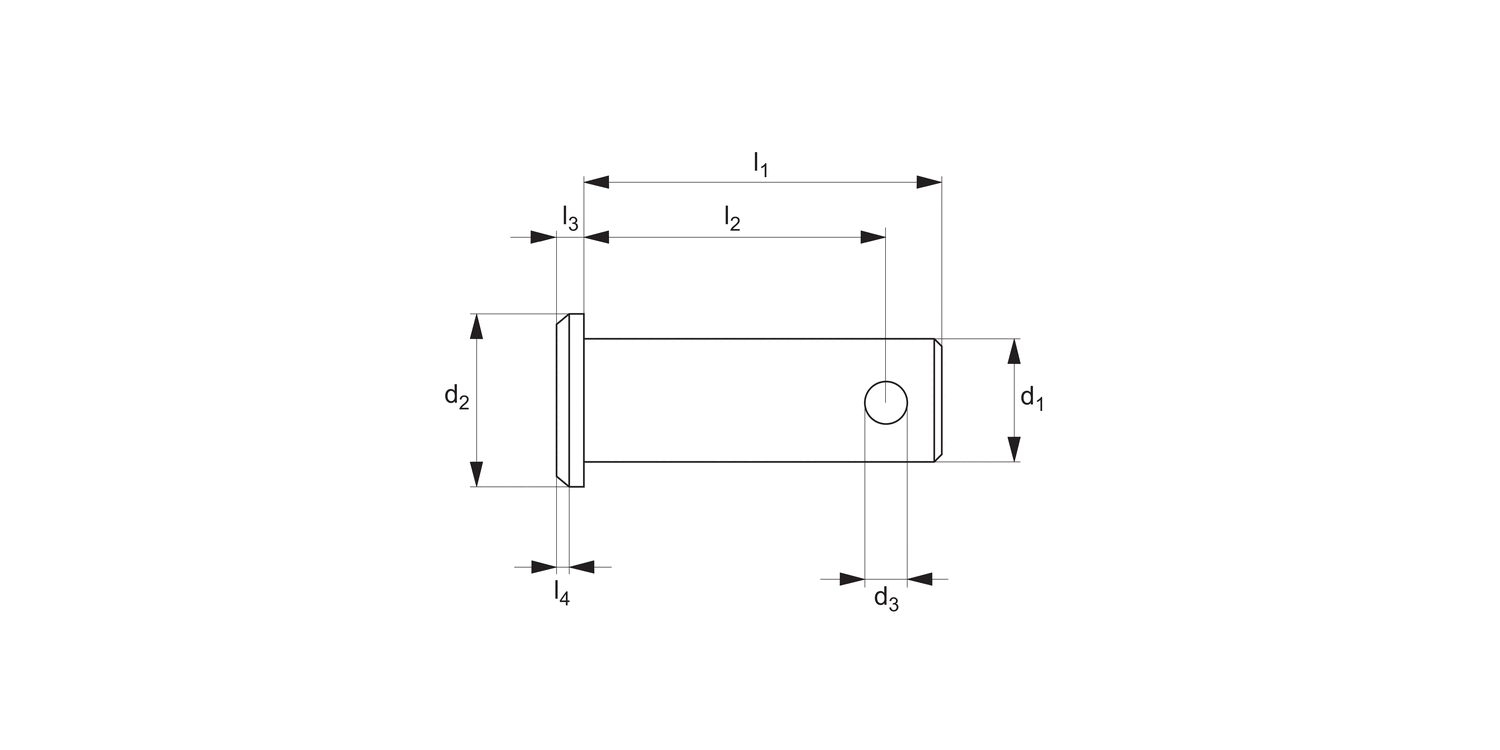

R3456 Stainless Clevis Pin With Hole
material: Stainless steel
Alternative products you may wish to consider
d1
tol. h11
5
d2
tol. h14
8
d3
tol. H14
1.2
l1
tol. js15
15
l2
+0.5
12.3
l3
tol. js14
1.5
l4
0.5
Weight
g
2.6
£ 2.53 per unit (click for quantity discounts)
d1
tol. h11
6
d2
tol. h14
9
d3
tol. H14
1.6
l1
tol. js15
18
l2
+0.5
15.3
l3
tol. js14
1.5
l4
0.5
Weight
g
4.6
£ 3.66 per unit (click for quantity discounts)
d1
tol. h11
8
d2
tol. h14
12
d3
tol. H14
2.0
l1
tol. js15
23
l2
+0.5
19.5
l3
tol. js14
2.0
l4
1.0
Weight
g
10.0
£ 6.95 per unit (click for quantity discounts)
d1
tol. h11
10
d2
tol. h14
14
d3
tol. H14
3.2
l1
tol. js15
29
l2
+0.5
24.5
l3
tol. js14
2.0
l4
1.0
Weight
g
19.0
£ 8.05 per unit (click for quantity discounts)
d1
tol. h11
12
d2
tol. h14
17
d3
tol. H14
4.0
l1
tol. js15
35
l2
+0.5
29.5
l3
tol. js14
3.0
l4
1.5
Weight
g
34.0
£ 8.90 per unit (click for quantity discounts)
d1
tol. h11
14
d2
tol. h14
19
d3
tol. H14
4.0
l1
tol. js15
40
l2
+0.5
32.5
l3
tol. js14
3.0
l4
1.5
Weight
g
53.0
£ 9.47 per unit (click for quantity discounts)
d1
tol. h11
16
d2
tol. h14
21
d3
tol. H14
4.0
l1
tol. js15
45
l2
+0.5
38.2
l3
tol. js14
3.0
l4
-
Weight
g
73.0
£ 9.25 per unit (click for quantity discounts)
d1
tol. h11
20
d2
tol. h14
28
d3
tol. H14
5.0
l1
tol. js15
53
l2
+0.5
47.0
l3
tol. js14
4.0
l4
-
Weight
g
139.0
£ 16.18 per unit (click for quantity discounts)
d1
tol. h11
25
d2
tol. h14
34
d3
tol. H14
6.3
l1
tol. js15
67
l2
+0.5
59.0
l3
tol. js14
5.5
l4
-
Weight
g
266.0
£ 20.65 per unit (click for quantity discounts)
d1
tol. h11
d2
tol. h14
d3
tol. H14
l1
tol. js15
l2
+0.5
l3
tol. js14
l4
Weight
g
| Price & Availability | Article | d1 tol. h11 | d2 tol. h14 | d3 tol. H14 | l1 tol. js15 | l2 +0.5 | l3 tol. js14 | l4 | Weight g | |||||||||||||||||||||
| R3456.005 | 5 | 8 | 1.2 | 15 | 12.3 | 1.5 | 0.5 | 2.6 | ||||||||||||||||||||||
£ 2.53 per unit (click for quantity discounts) Ready to despatch 83 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 5 d2
tol. h14 8 d3
tol. H14 1.2 l1
tol. js15 15 l2
+0.5 12.3 l3
tol. js14 1.5 l4 0.5 Weight
g 2.6 | ||||||||||||||||||||||||||||||
| R3456.006 | 6 | 9 | 1.6 | 18 | 15.3 | 1.5 | 0.5 | 4.6 | ||||||||||||||||||||||
£ 3.66 per unit (click for quantity discounts) Ready to despatch 54 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 6 d2
tol. h14 9 d3
tol. H14 1.6 l1
tol. js15 18 l2
+0.5 15.3 l3
tol. js14 1.5 l4 0.5 Weight
g 4.6 | ||||||||||||||||||||||||||||||
| R3456.008 | 8 | 12 | 2.0 | 23 | 19.5 | 2.0 | 1.0 | 10.0 | ||||||||||||||||||||||
£ 6.95 per unit (click for quantity discounts) Ready to despatch 161 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 8 d2
tol. h14 12 d3
tol. H14 2.0 l1
tol. js15 23 l2
+0.5 19.5 l3
tol. js14 2.0 l4 1.0 Weight
g 10.0 | ||||||||||||||||||||||||||||||
| R3456.010 | 10 | 14 | 3.2 | 29 | 24.5 | 2.0 | 1.0 | 19.0 | ||||||||||||||||||||||
£ 8.05 per unit (click for quantity discounts) Ready to despatch 141 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 10 d2
tol. h14 14 d3
tol. H14 3.2 l1
tol. js15 29 l2
+0.5 24.5 l3
tol. js14 2.0 l4 1.0 Weight
g 19.0 | ||||||||||||||||||||||||||||||
| R3456.012 | 12 | 17 | 4.0 | 35 | 29.5 | 3.0 | 1.5 | 34.0 | ||||||||||||||||||||||
£ 8.90 per unit (click for quantity discounts) Ready to despatch 187 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 12 d2
tol. h14 17 d3
tol. H14 4.0 l1
tol. js15 35 l2
+0.5 29.5 l3
tol. js14 3.0 l4 1.5 Weight
g 34.0 | ||||||||||||||||||||||||||||||
| R3456.014 | 14 | 19 | 4.0 | 40 | 32.5 | 3.0 | 1.5 | 53.0 | ||||||||||||||||||||||
£ 9.47 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 14 d2
tol. h14 19 d3
tol. H14 4.0 l1
tol. js15 40 l2
+0.5 32.5 l3
tol. js14 3.0 l4 1.5 Weight
g 53.0 | ||||||||||||||||||||||||||||||
| R3456.016 | 16 | 21 | 4.0 | 45 | 38.2 | 3.0 | - | 73.0 | ||||||||||||||||||||||
£ 9.25 per unit (click for quantity discounts) Ready to despatch 28 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h11 16 d2
tol. h14 21 d3
tol. H14 4.0 l1
tol. js15 45 l2
+0.5 38.2 l3
tol. js14 3.0 l4 - Weight
g 73.0 | ||||||||||||||||||||||||||||||
| R3456.020 | 20 | 28 | 5.0 | 53 | 47.0 | 4.0 | - | 139.0 | ||||||||||||||||||||||
£ 16.18 per unit (click for quantity discounts) Ready to despatch 111 Need more? Please call us.
d1
tol. h11 20 d2
tol. h14 28 d3
tol. H14 5.0 l1
tol. js15 53 l2
+0.5 47.0 l3
tol. js14 4.0 l4 - Weight
g 139.0 | ||||||||||||||||||||||||||||||
| R3456.025 | 25 | 34 | 6.3 | 67 | 59.0 | 5.5 | - | 266.0 | ||||||||||||||||||||||
£ 20.65 per unit (click for quantity discounts) Ready to despatch 120 Need more? Please call us.
d1
tol. h11 25 d2
tol. h14 34 d3
tol. H14 6.3 l1
tol. js15 67 l2
+0.5 59.0 l3
tol. js14 5.5 l4 - Weight
g 266.0 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (1.4305, X8CrNiS18-9), for sizes 6-8: stainless steel (1.4567, X3CrNiCu18-9-4).
Technical Notes
Designed for use with clevis joints.
Tips
For use with clevis joints R3402 and R3403, for split cotter pins to suit see part number P1241.
For washers see part number P0330.A2.
