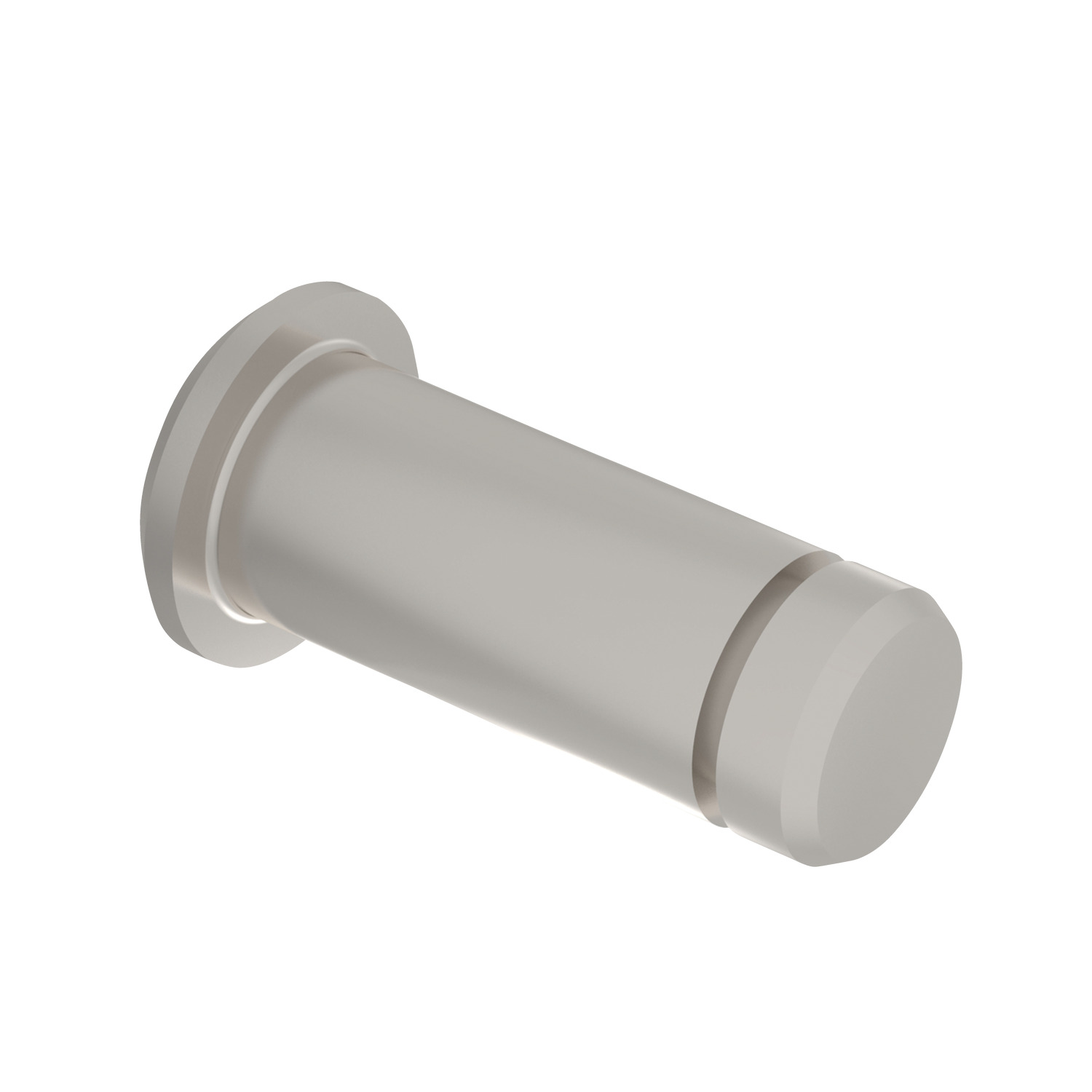

R3450 Clevis Pin

Name: R3450.025-ZP
Brand: WC
SKU: R3450.025-ZP
Price: 7.35 EUR
Availability: InStock

with groove

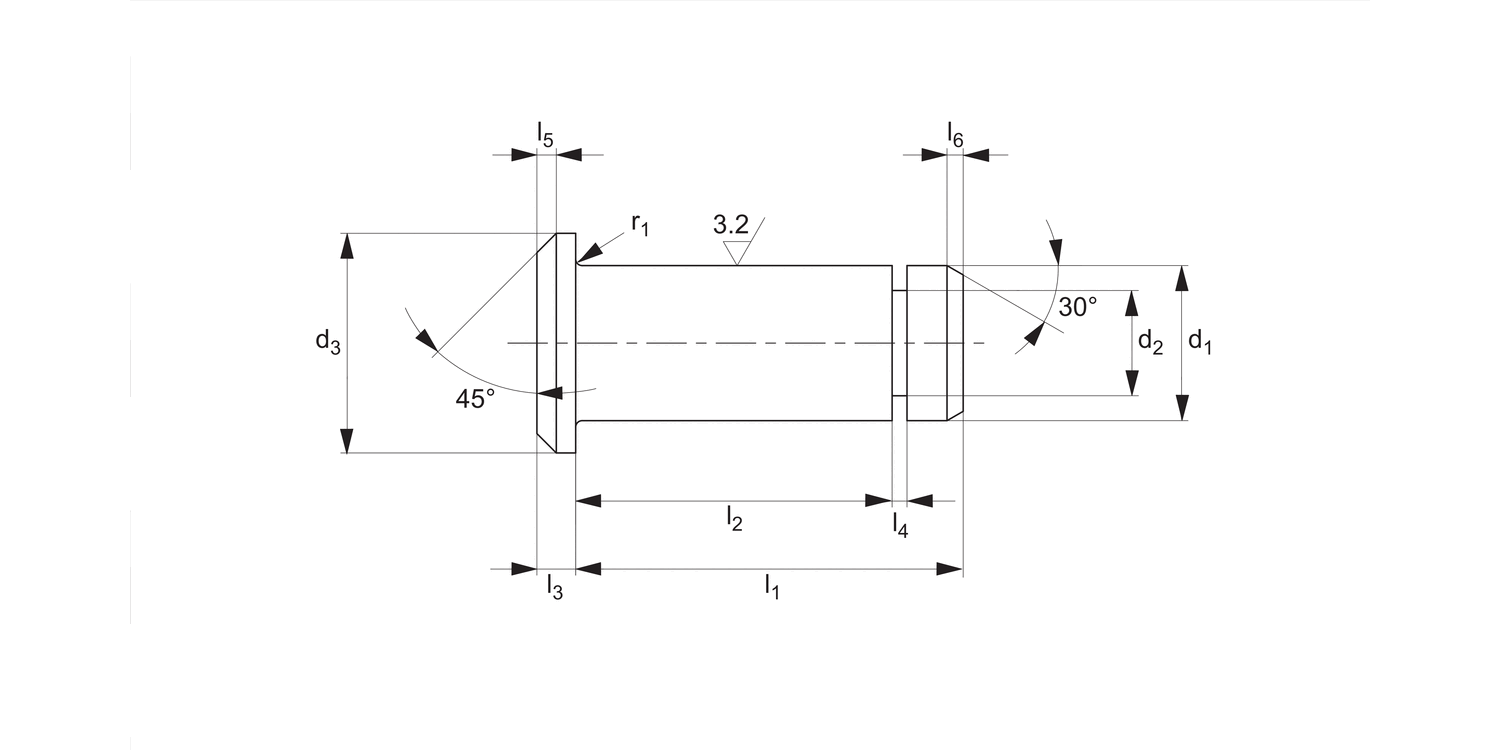

Article properties

Order No.

R3450.025-ZP

d₁

d₂ h11

18.0

d₃ h12

l₁

57.0

l₂ +0.30

50.5

l₃ js14

5.0

l₄ 0.10

1.8

l₅ 0.5

2.0

l₆ 0.5

1.5

1.0

Weight g

260

See full product selection

£ 7.35 per unit (click for quantity discounts)

Ready to despatch 132
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-499	£ 7.35	0%
500-999	£ 5.51	25%
1000+	£ 4.78	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel (9SMnPb28), silver zinc plated. Stainless steel (A2, AISI 303).

Technical Notes

Designed for use with clevis joints.

Tips

For safety fasteners, see R3440-R3445.
