R3437 Plastic Clevis Retention Clips

Name: R3437.081
Brand: WC
SKU: R3437.081
Price: 1.3 EUR
Availability: InStock

material: Plastic

Article properties

Order No.

R3437.081

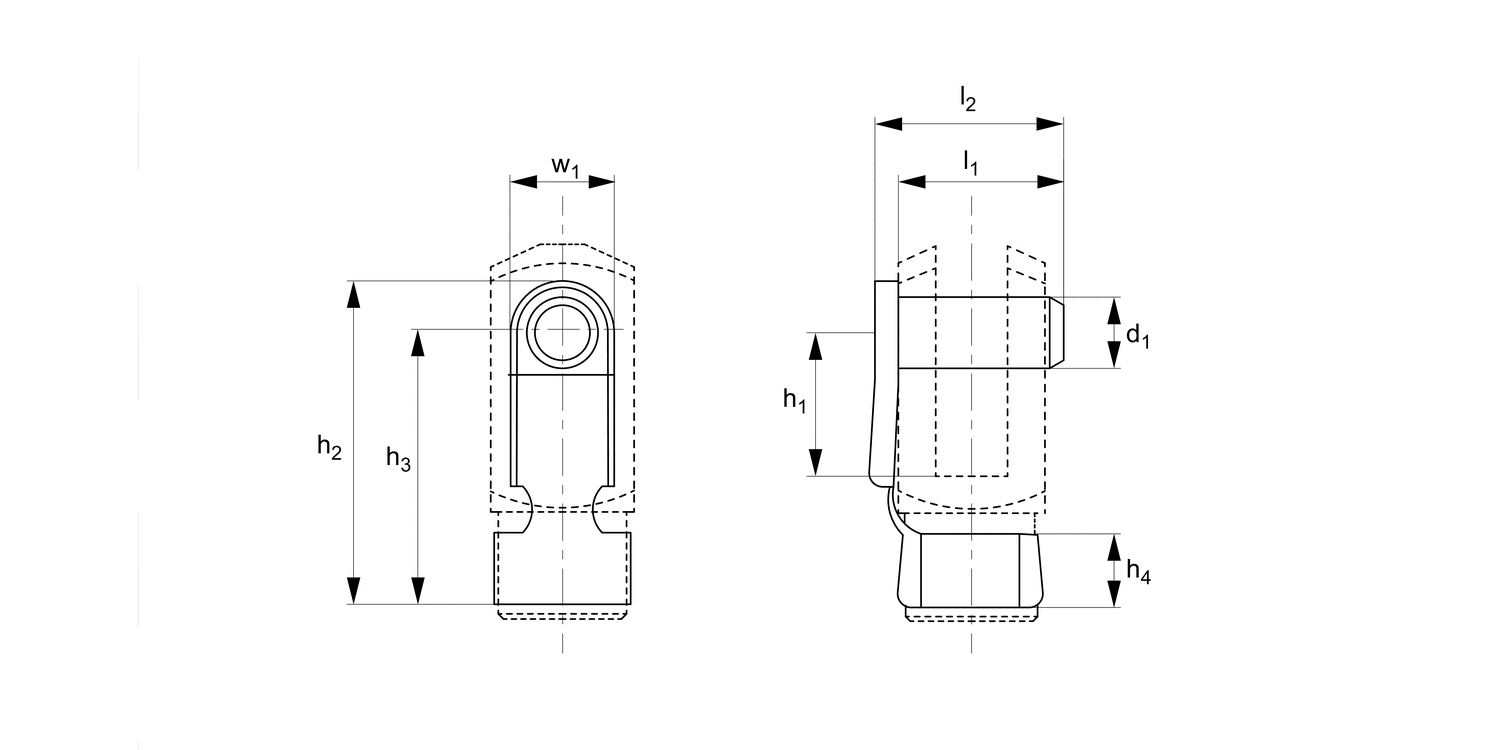

Size

8x16

d₁ tol. h11

h₁ ±0.5

h₂

35.5

h₃

h₄

8.0

l₁

l₂

21.0

w₁

See full product selection

£ 1.30 per unit (click for quantity discounts)

Ready to despatch 55
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 1.30	0%
10-24	£ 1.17	10%
25-49	£ 1.11	15%
50-99	£ 1.04	20%
100-249	£ 0.98	25%
250+	£ 0.91	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Black plastic (Igumid G).

Technical Notes

Spring loaded pins.

Tips

Clips on to base of clevis joint, for clevis joint see part number R3409.

Product Datasheets

R3437 Plastic Clevis Retention ClipsJanuary 3, 2025, 3:31 PM / 69.92 kB

Clevis Pins & ClipsJanuary 3, 2025, 3:16 PM / 714.07 kB

Clevis Joints & ClipsJanuary 3, 2025, 3:16 PM / 1.71 MB

Clevis Joints, Turnbuckles & Ball & Socket JointJanuary 3, 2025, 3:16 PM / 3.86 MB

Linkages & Rotary ComponentsJanuary 3, 2025, 3:17 PM / 22.92 MB

CAD files

R3437 AcisOctober 31, 2023, 10:24 AM / 233.01 kB

R3437 IGESOctober 31, 2023, 10:24 AM / 531.37 kB

R3437 ParasolidOctober 31, 2023, 10:24 AM / 135.35 kB

R3437 ProEOctober 31, 2023, 10:24 AM / 919.96 kB

R3437 SolidWorksOctober 31, 2023, 10:24 AM / 3.20 MB

R3437 StepOctober 31, 2023, 10:24 AM / 186.69 kB
