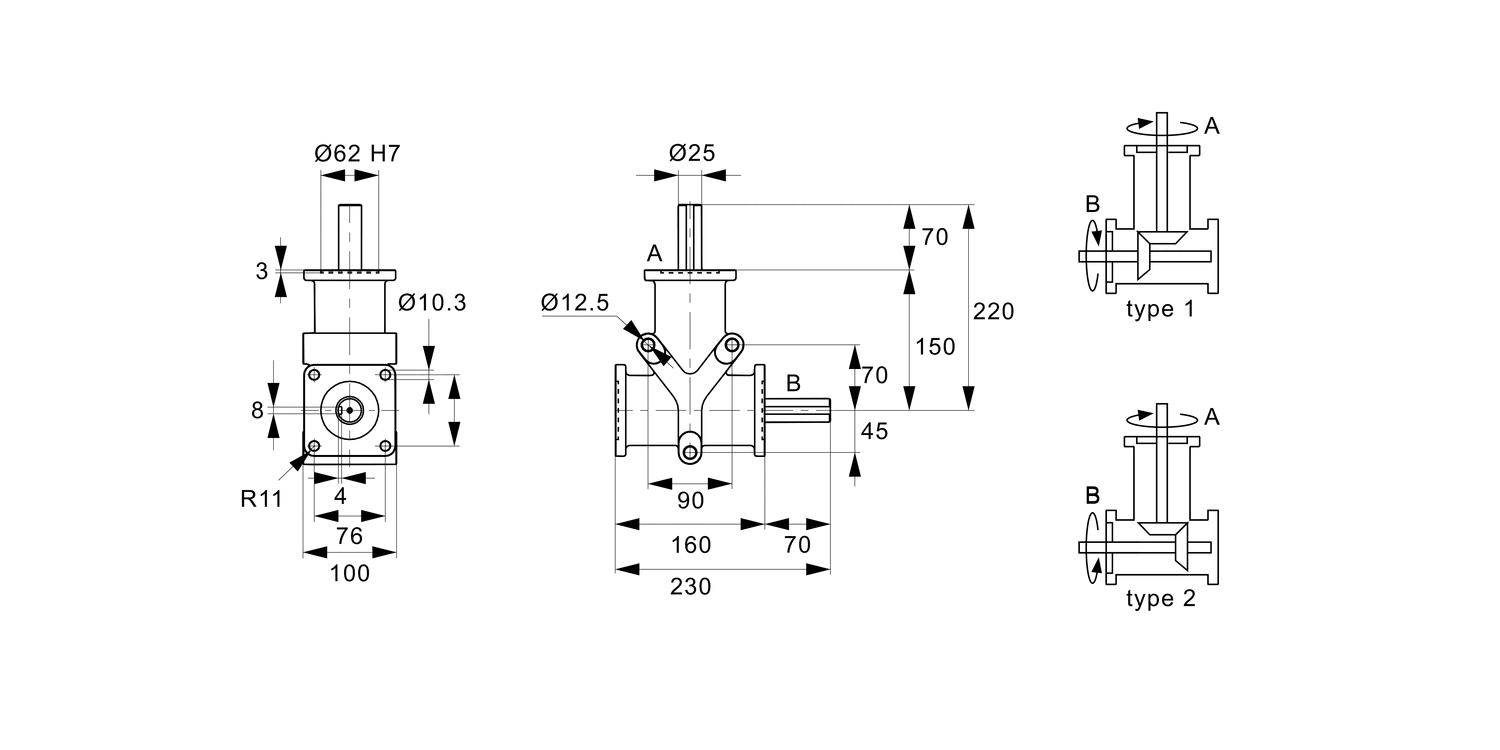

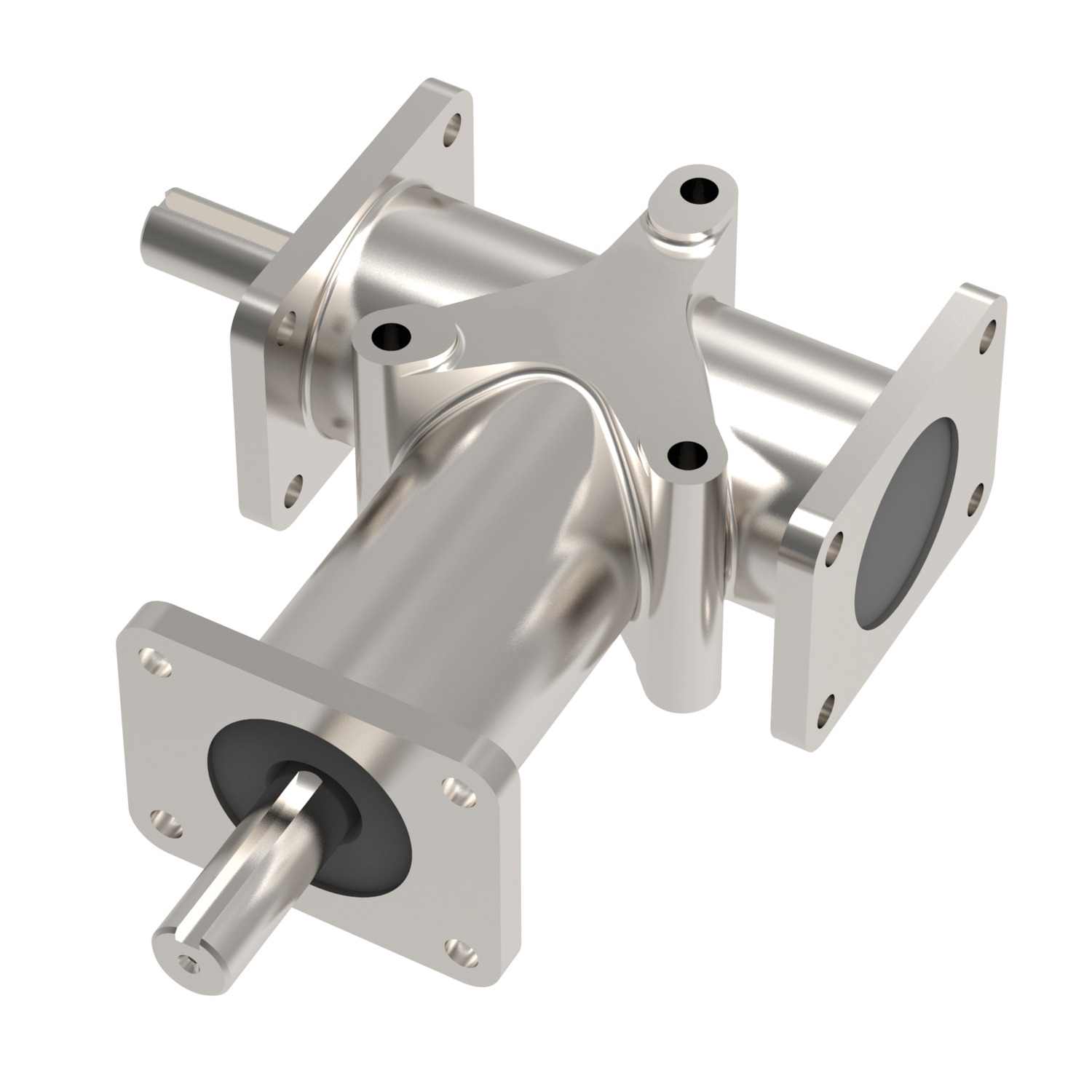

R2358 Stainless Right Angle Drives - 2 Shafts

Name: R2358.2-1
Brand: WC
SKU: R2358.2-1
Price: 2623.34 EUR
Availability: OutOfStock

Article properties

Order No.

R2358.2-1

Shaft dia. tol. f7

Type

Ratio

1:1

Input shaft A max. kW

4.55

Output shaft B max. Nm

Weight kg

9.14

£ 2,623.34 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Technical & Application

Stainless steel (AISI 316) housing and shafts, seals - NBR. Spiral bevel gears from hardened steel.

Normally used as speed reducers.
Max. radial loading 400N. Max. axial loading 160N.
Angular alignment: 15' to 30' of arc.

Stainless Steel Gear BoxesJune 19, 2025, 4:50 PM / 1.62 MB

Right Angle Gear BoxesJune 19, 2025, 4:45 PM / 6.79 MB

Gears, Gear Boxes & BeltsJune 19, 2025, 4:41 PM / 32.94 MB

Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB

R2358 AcisMarch 30, 2019, 8:27 AM / 676.53 kB

R2358 IGESMarch 30, 2019, 8:27 AM / 1.06 MB

R2358 ParasolidMarch 30, 2019, 8:27 AM / 228.71 kB

R2358 ProEMarch 30, 2019, 8:27 AM / 1.72 MB

R2358 SolidWorksMarch 30, 2019, 8:27 AM / 3.29 MB

R2358 StepMarch 30, 2019, 8:27 AM / 615.55 kB
