Durasoft Roller
roller only

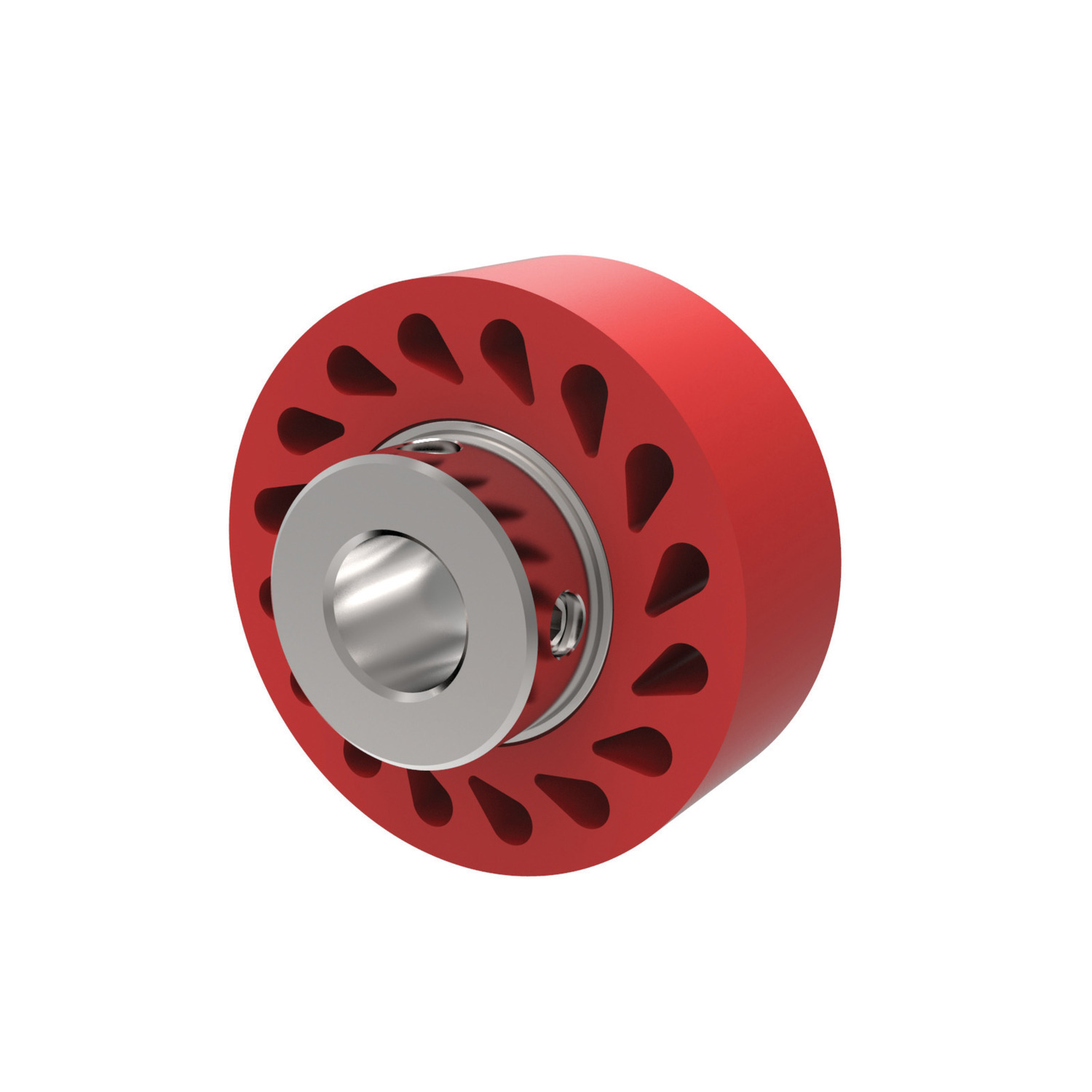

P2766 Durasoft Roller
shaft drive, material: Urethane
Order No.
P2766.25A60
Durometer
60

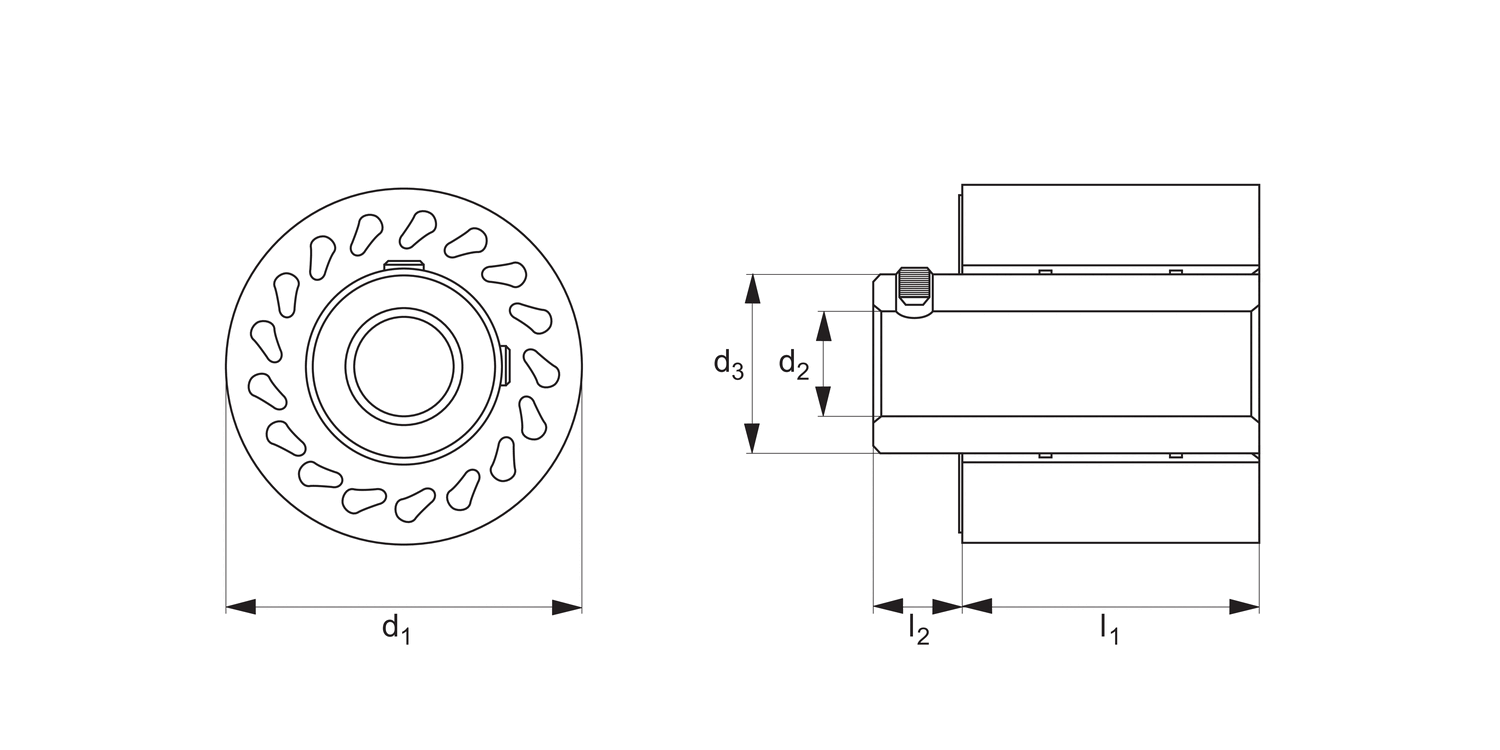

d1
63,5 (2,5")
l1
23.37
d2
min.|max.
12,73/12,83
l2
12.7
d3
31.75
£ 93.89 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 93.89 | 0% |
| 10-19 | £ 84.50 | 10% |
| 20-49 | £ 79.81 | 15% |
| 50-99 | £ 75.11 | 20% |
| 100+ | £ 70.42 | 25% |
Technical & Application
Material
Urethane bonded to a steel insert. Hardness from 35-80 durometer (Shore A).
Technical Notes
Designed to be mounted onto a shaft. A hub extends past the roller and is supplied with two set screws at 90°.
Tips
Durasoft rollers have "teardrop" holes to allow the roller to flex for firm but non-damaging contact.
