Steel A-V Mounts

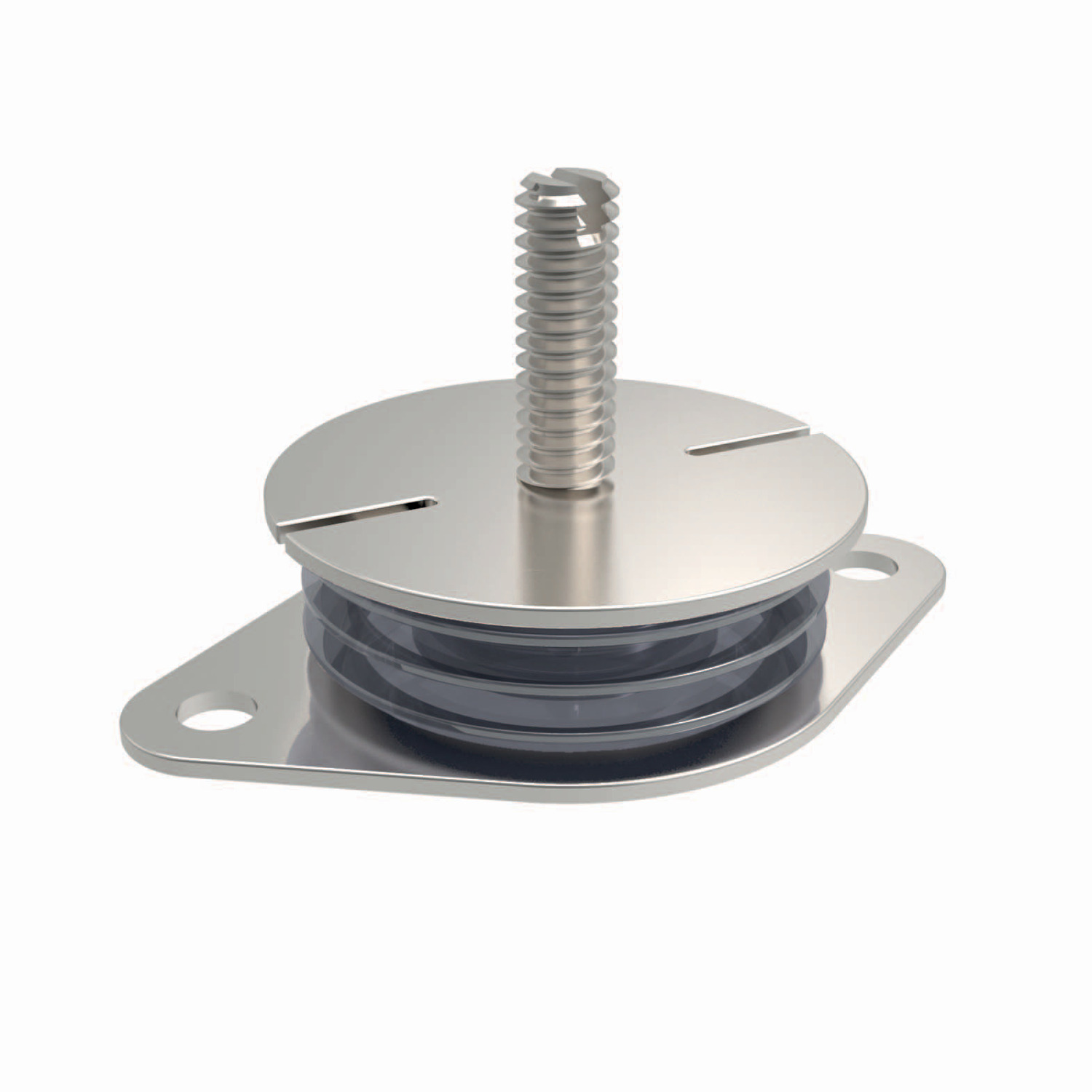

P2109 Anti-vibration Mounts
silicone gel, material: Steel or stainless steel
Order No.
P2109.30-35
d1
45
d2
76
d3
M10
d4
11
h1
34
h2
3
l1
30
w1
85
l2
132
l3
28
Resonance point
Hz
8~9
Resonance magnification
dB
18~19
Recommended frequency
Hz
13~
Optimum working load
kgf
25-35
£ 121.73 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 121.73 | 0% |
| 5-9 | £ 115.64 | 5% |
| 10-19 | £ 109.56 | 10% |
| 20-49 | £ 103.47 | 15% |
| 50+ | £ 91.30 | 25% |
Technical & Application
Material
Silicone gel on silver zinc plated steel. Stainless steel (A2) on request.
Technical Notes
For applications where a base plate is required and there is a need for damping heavy-load vibration.
