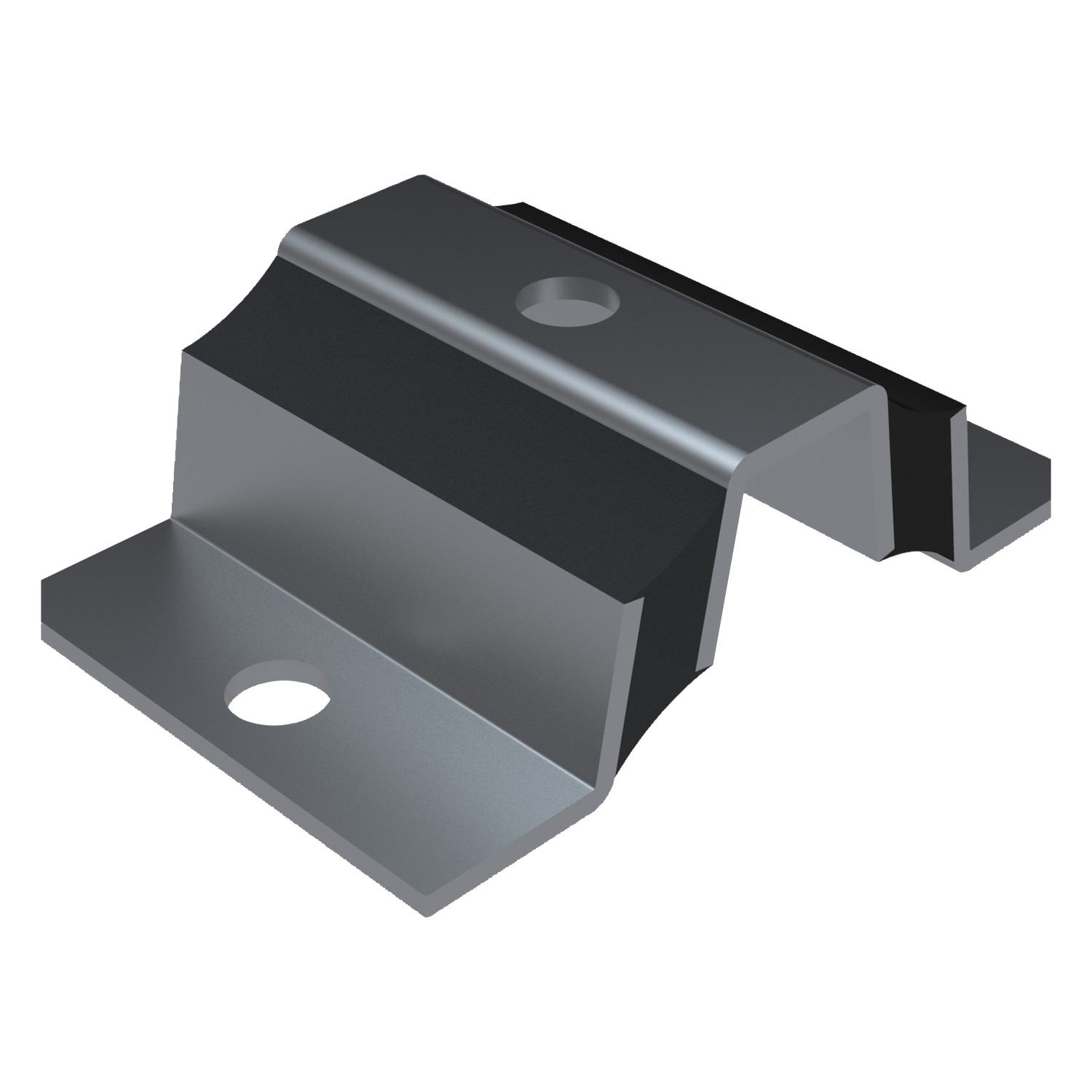

Steel A-V Mounts
P2107 Anti vibration Mounts v shaped
v shaped, material: Steel
Order No.
P2107.045
Shore hardness
45

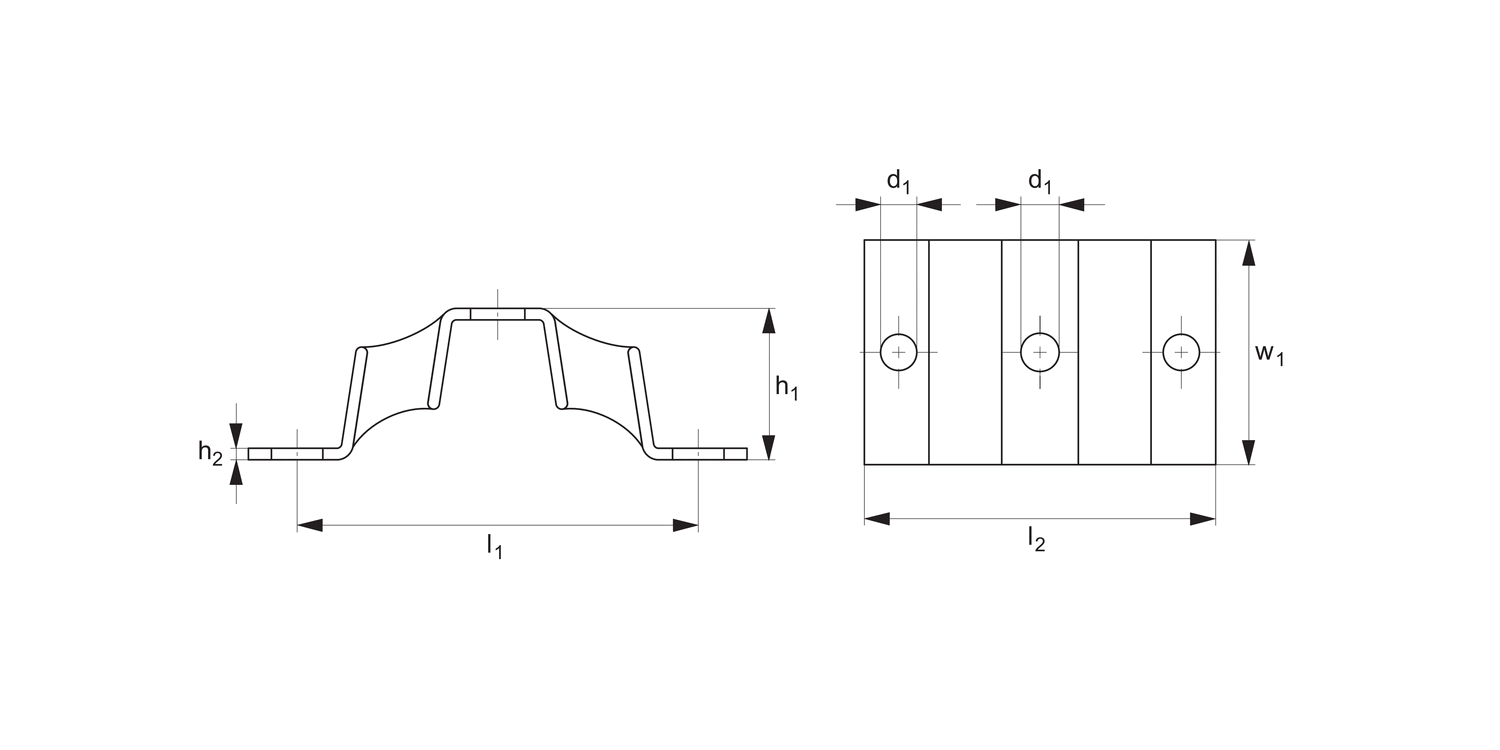

d1
12
Compression
max.
2.5
h1
35
h2
3
l1
90
w1
73
l2
112
Axial load
max.
kgf
60
Radial load
max.
kgf
60
£ 67.80 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 67.80 | 0% |
| 5-19 | £ 61.02 | 10% |
| 20-39 | £ 54.24 | 20% |
| 40-99 | £ 47.46 | 30% |
| 100+ | £ 40.68 | 40% |
Technical & Application
Material
Rubber on silver zinc plated steel
(rubber hardness 45-65 Shore A).
Technical Notes
Has a three point anchorage, two to a base and one to the piece of equipment. Very good as a shock/isolating mount for oscillations higher than 15Hz.
Tips
Can be used to hang compressers, speakers and air conditioning units from the wall.
