P2104 Marine Engine Mounts

Name: P2104.16-70
Brand: WC
SKU: P2104.16-70
Price: 182.07 EUR
Availability: OutOfStock

v-shaped, material: Steel

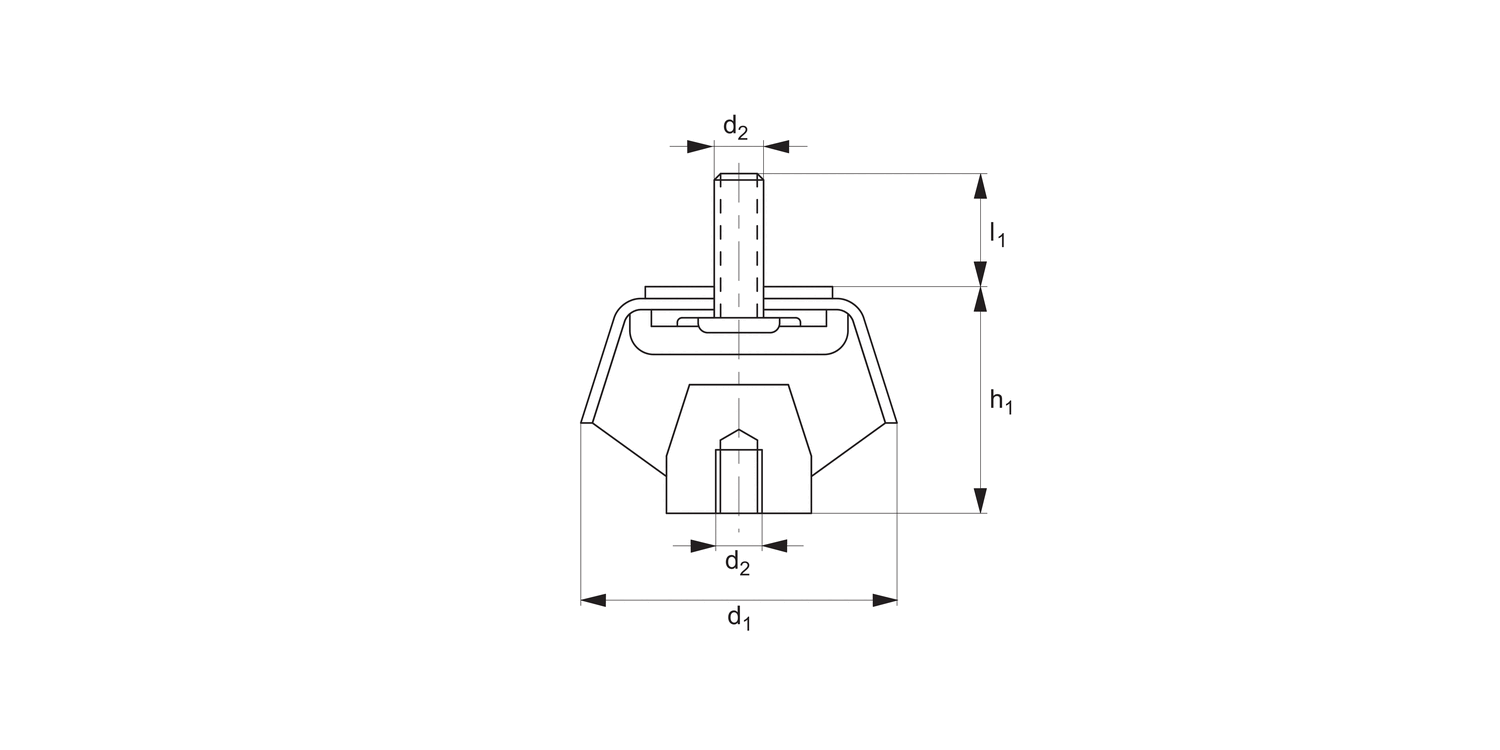

Article properties

Order No.

P2104.16-70

d₁

12.2

d₂

M16

h₁

h₂

6.2

l₁

173

w₁

l₂

205

l₃

l₄

15.8

l₅

l₆

16.2

Load max. kgf

150

See full product selection

£ 182.07 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 182.07	0%
20-49	£ 154.76	15%
50-99	£ 136.55	25%
100-199	£ 118.35	35%
200-499	£ 109.24	40%
500+	£ 91.04	50%

Download product datasheet

Technical & Application

Material

Rubber on black zinc plated steel (rubber hardness 40-70 Shore A).

Technical Notes

This mount has a v-shaped design providing high deflections for relatively low loads. This means that the natural frequency is low and ideal for engines which normally work at idle speed.

Tips

It is used in applications where the load to be supported is low, and where high deflection is required to reach high vibration isolation levels. Marine engines, small vehicles or machines, small and medium sized generator sets.
