Cap Screws
Steel
P0205.ZP Low Head Cap Screws
Low head - steel, zinc-plated, material: Zinc-plated
Order No.
P0205.030-008-ZP

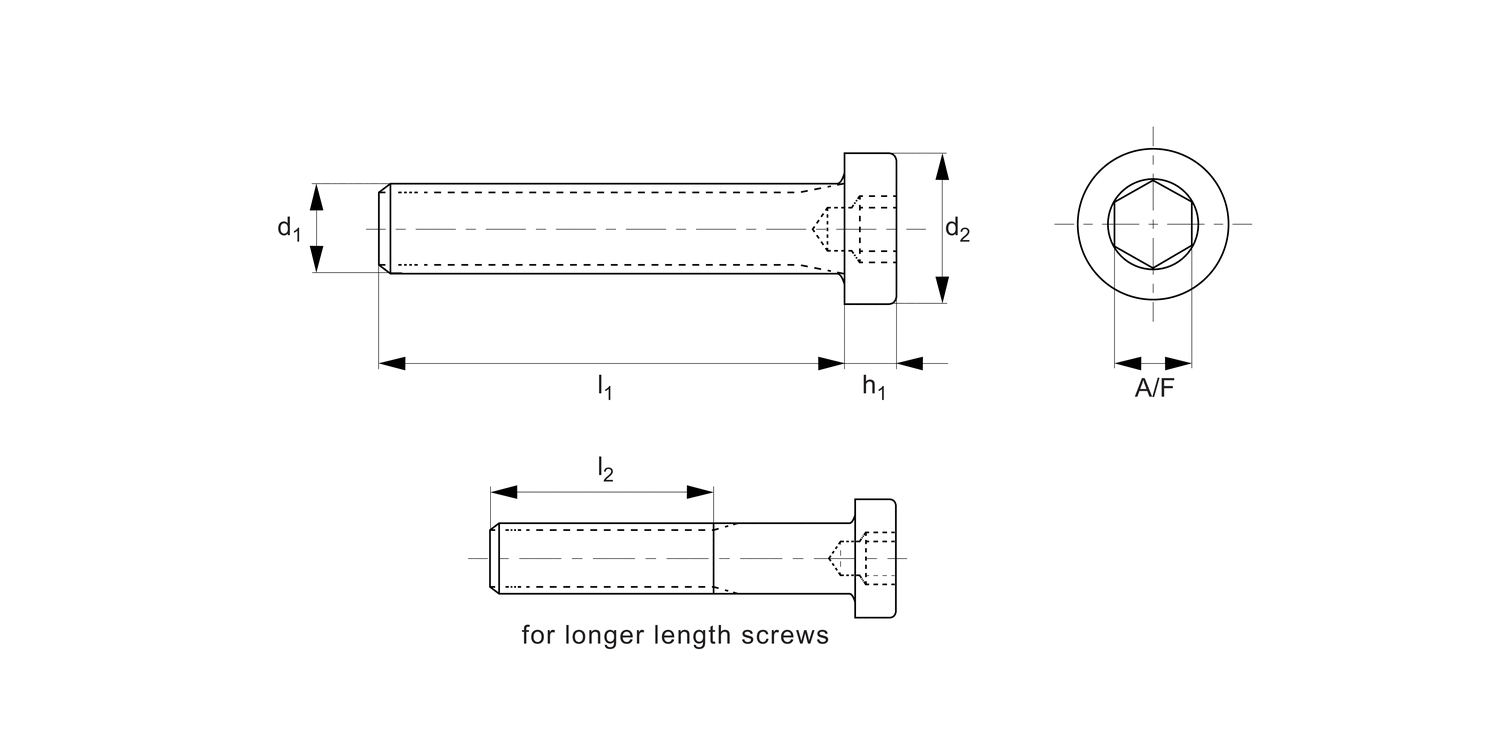

d1
M 3
l1
8
d2
5.5
h1
2.0
l2
-
A/F
2.0
Material
Steel ZP
£ 17.00 per 100 units (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/100 | Applied Discount |
| 1-99 | £ 0.17 | 0% |
| 100-199 | £ 0.12 | 30% |
| 200-499 | £ 0.11 | 35% |
| 500-999 | £ 0.10 | 40% |
| 1000-4999 | £ 0.09 | 50% |
| 5000+ | £ 0.07 | 60% |
Technical & Application
Material
Steel, zinc-plated (grade 8.8, (08.8)).
Technical Notes
To DIN 7984. For the majority of screw lengths the threads goes all the way to the head of the screw (i.e. l1= l2).
For longer length screws the threaded portion l2
