Air cylinder Mounts
Steel

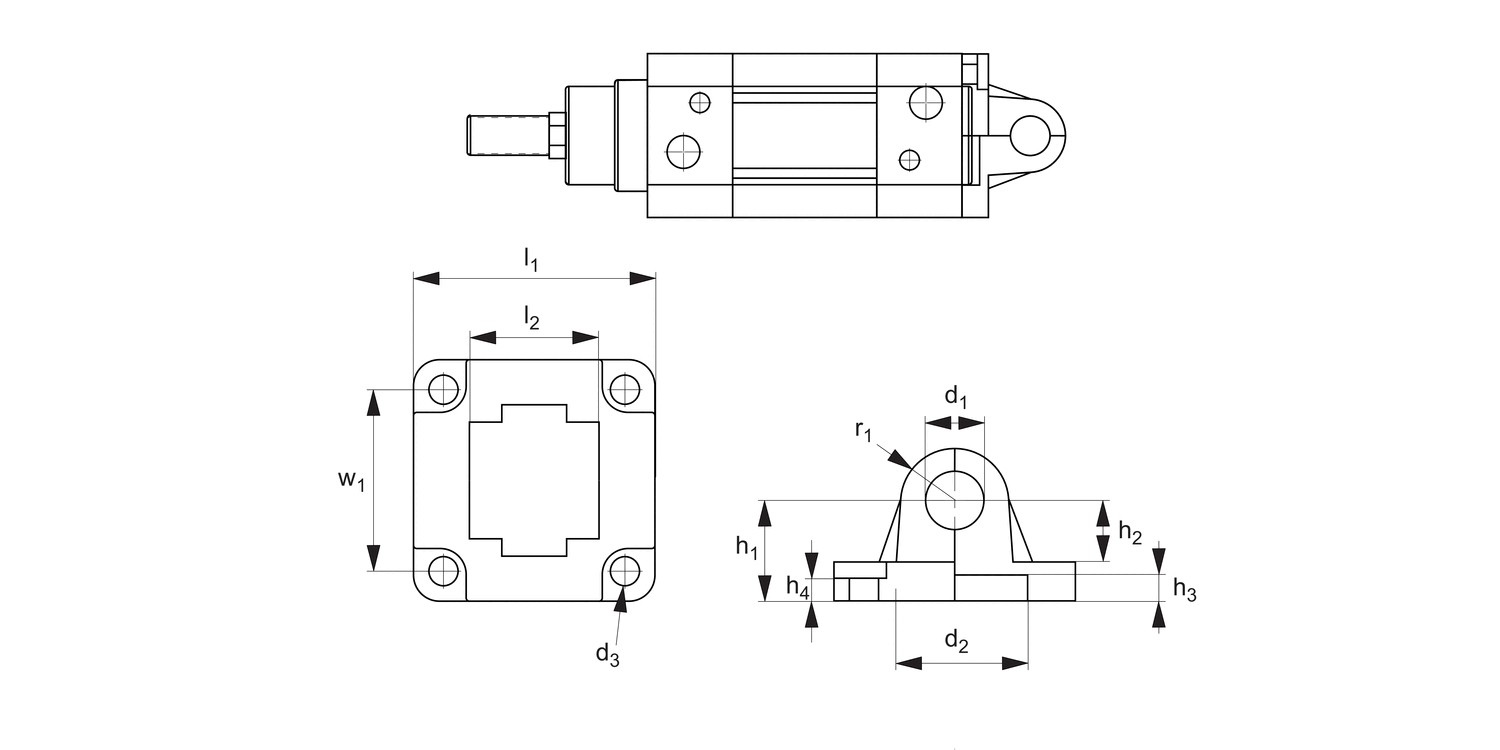

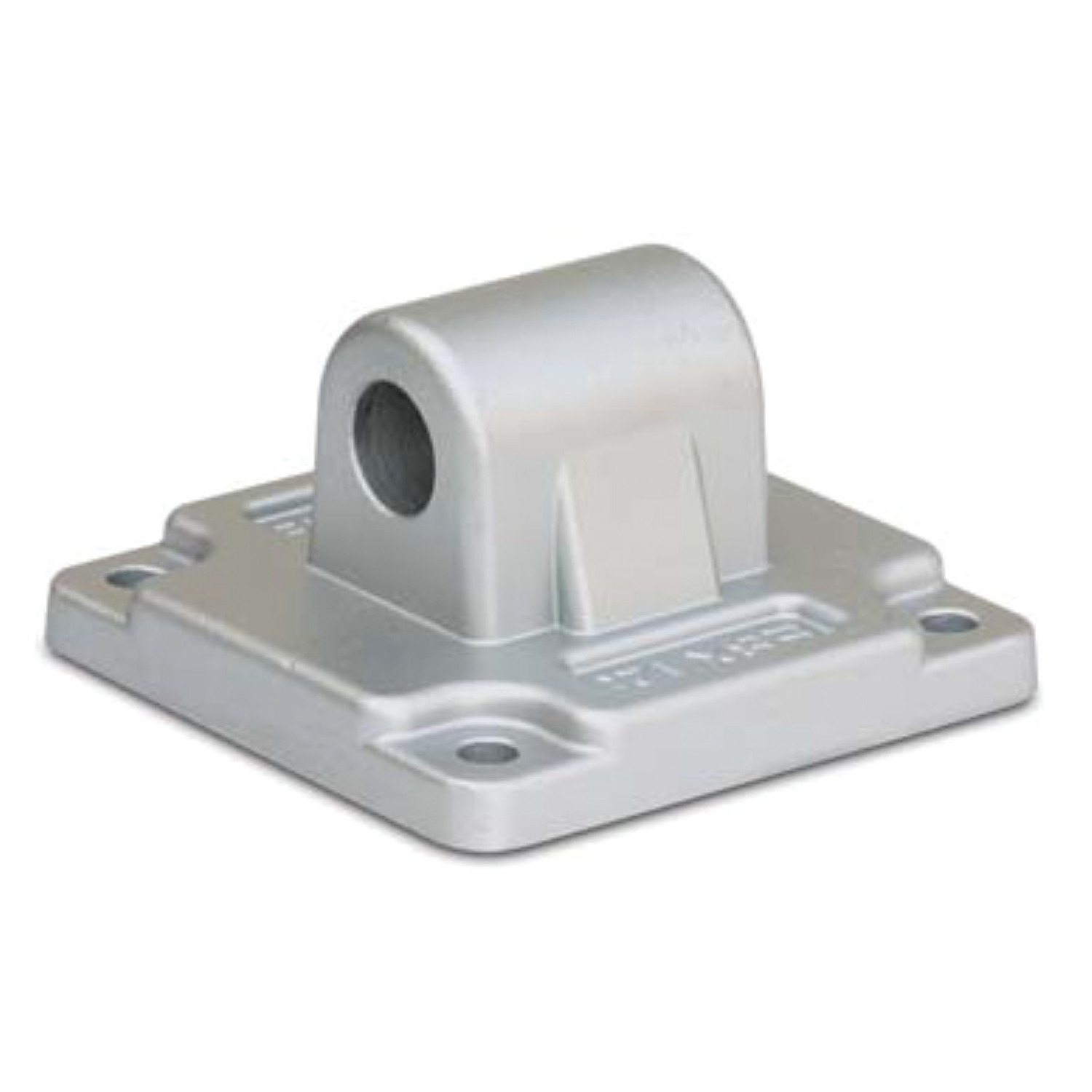

L4818 Air Cylinder Mounts - CETOP Series
EBX foot mounting, material: Steel
Order No.
L4818.032
Cylinder dia.
32
d1
10
d2
30
d3
6
r1
10
l1
45
l2
26
w1
32.5
h1
22
h2
14
h3
4.5
h4
7.0
£ 14.56 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 14.56 | 0% |
| 5-9 | £ 13.10 | 10% |
| 10-19 | £ 12.38 | 15% |
| 20-49 | £ 10.92 | 25% |
| 50+ | £ 9.46 | 35% |
Technical & Application
Material
Steel (DIN 1040).
Technical Notes
CETOP Series
