L3188 Miniature XY Stages

Name: L3188.030-020-K
Brand: WC
SKU: L3188.030-020-K

dovetail, material: Iron

Article properties

Order No.

L3188.030-020-K

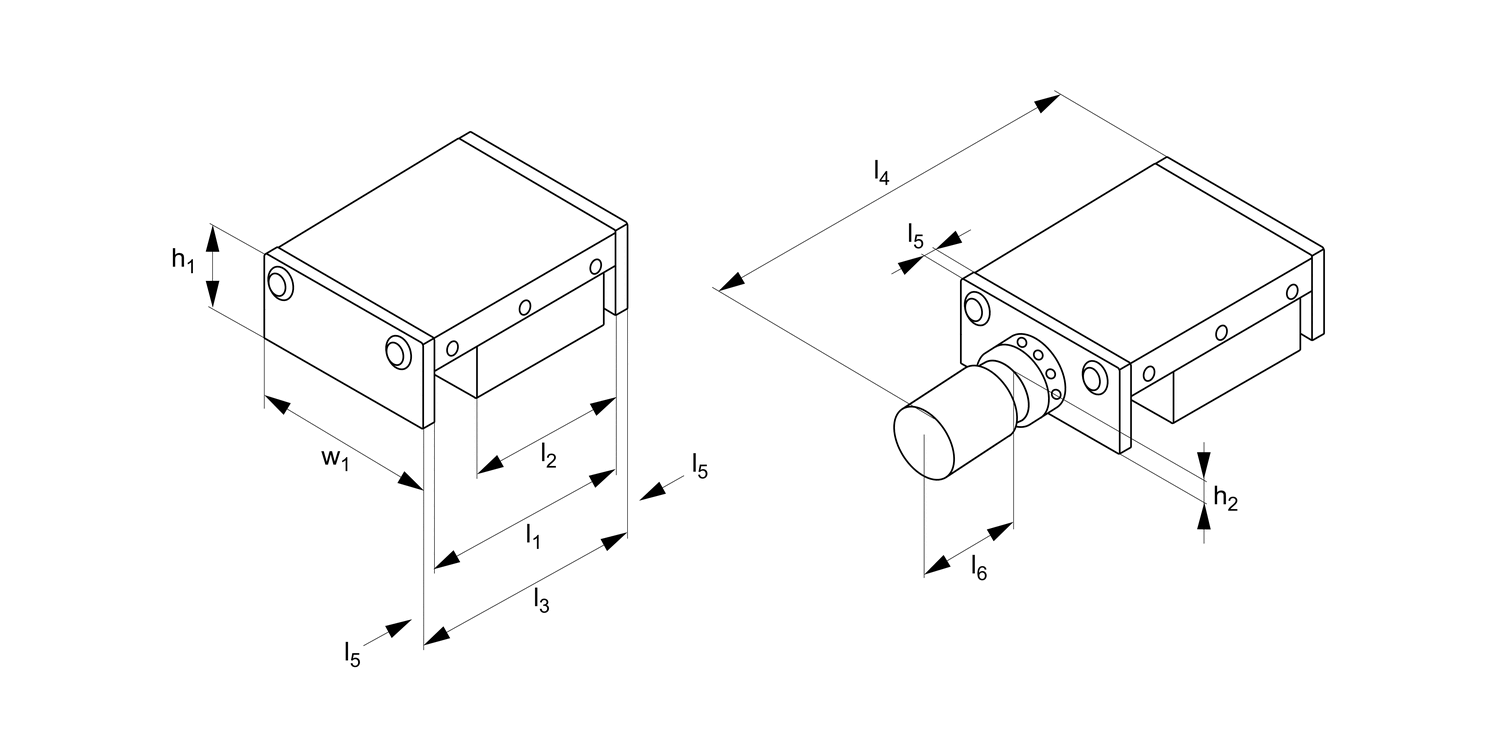

Stroke

w₁

Load max. kN

0.22

h₁

l₁

l₂

l₃

l₄

l₅

h₂

8.5

Moment M_x max. Nm

0.7

Moment M_y max. Nm

0.4

Moment M_z max. Nm

0.5

Lead screw

M6x0,5

Weight kg

0.3

See full product selection

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	-

Download product datasheet

Technical & Application

Material

Cast iron body (ENGJL-250), with dovetail slide system. Hardened and ground lead screw, pitch accuracy ±0.02mm/300mm.

Technical Notes

Suitable for horizontal and vertical applications requiring smooth movement, long life and high load capacity.
Dovetail linear guideways are very stable for use when a degree of vibration damping is required. Other versions are also available - cross roller slides (L3470), and needle roller slides (L3490) for even higher load ratings. Load ratings are based on even surface loading with the slide in the centre position, and apply to a single slide.
Coefficient of friction 0,1.

Tips

Lead screw pitch M6 x 0,5.
Centre mounting of compound slides is standard. Please advise dimensions w2 and l7 when off-centre mounting is required.

Important Notes

See technical pages for straightness and parallelism accuracy and standard carriage and base fixing holes - other fixing holes can be machined on request.
3D CAD models available.
