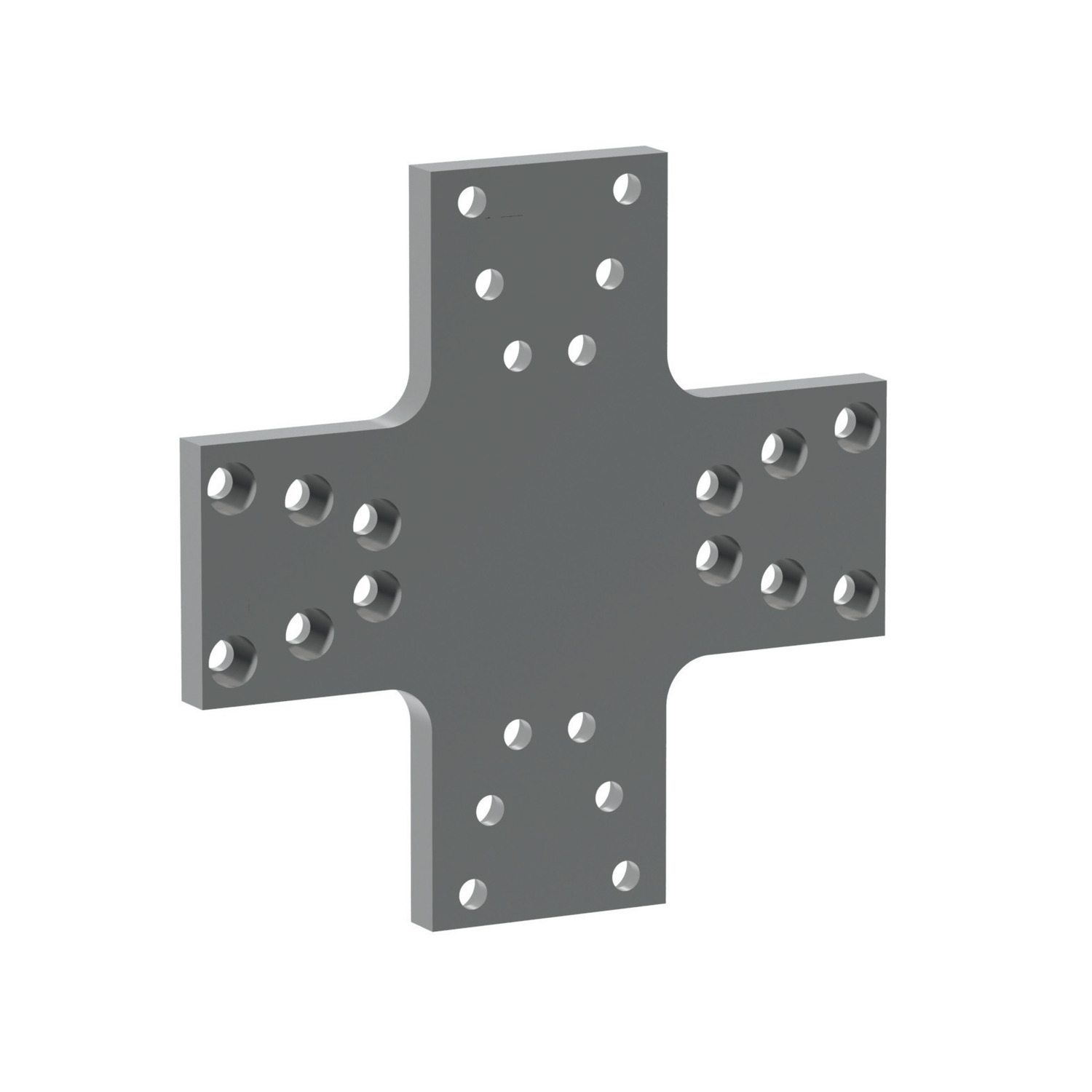

L3001.APC3 X Plate

Name: L3001.APC-3
Brand: WC
SKU: L3001.APC-3
Price: 94.53 EUR
Availability: OutOfStock

material: Aluminium

Article properties

Order No.

L3001.APC-3

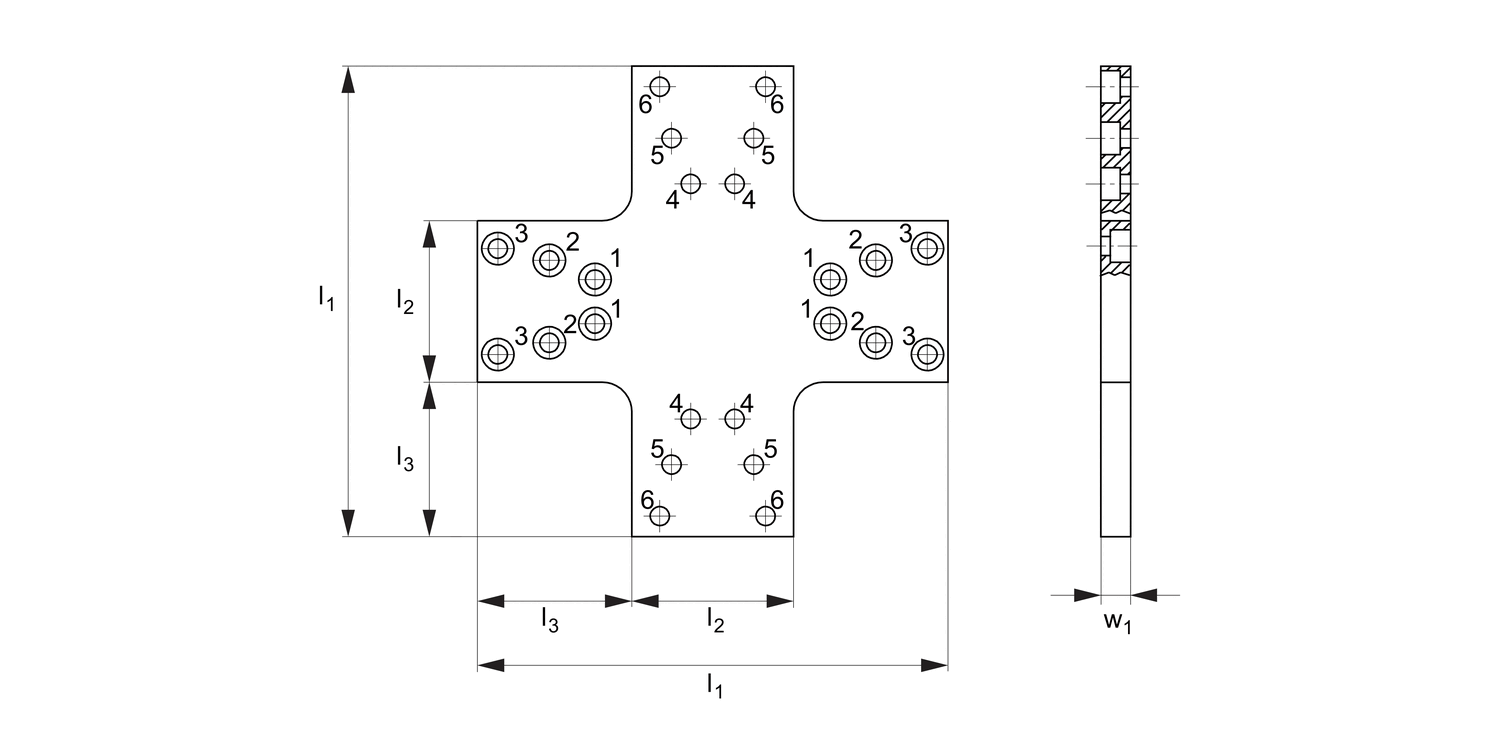

l₁

160

l₂

l₃

52.5

w₁

See full product selection

£ 94.53 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 94.53	0%
5-9	£ 89.80	5%
10-19	£ 85.08	10%
20-49	£ 80.35	15%
50+	£ 70.90	25%

Download product datasheet

Technical & Application

Material

Aluminium.

Technical Notes

Allows two units to be mounted perpendicularly to one another. Supplied with T-nuts and bolts.

Tips

Size 40 - use holes 1 for carriages and 4 for profile.
Size 55 - use holes 2 for carriages and 5 for profile.
Size 40 - use holes 3 for carriages and 6 for profile.
