L1971.T Stainless X Rail

Name: L1971.30T-2080
Brand: WC
SKU: L1971.30T-2080
Price: 216.26 EUR
Availability: InStock

T rail (master), material: Stainless steel

Article properties

Order No.

L1971.30T-2080

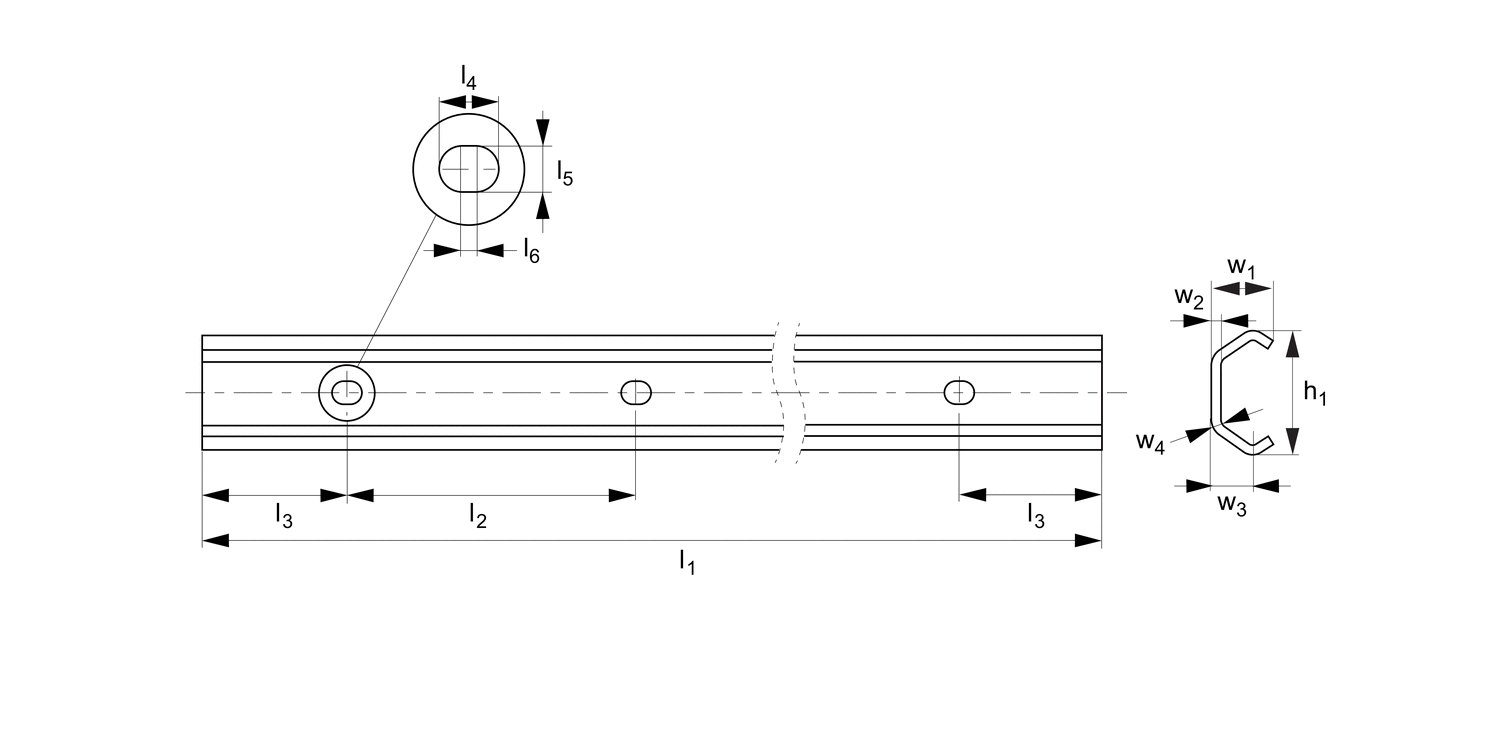

Rail size

l₁

2080

h₁

29.5

l₂

l₃

l₄

l₅

6.0

l₆

5.0

w₁

15.0

w₂

2.5

w₃

10.0

w₄

4.5

For screw

M 5

Weight kg

0.90

See full product selection

£ 216.26 per unit (click for quantity discounts)

Ready to despatch 56
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 216.26	0%
5-9	£ 194.63	10%
10-19	£ 183.82	15%
20-49	£ 162.20	25%
50+	£ 140.57	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel (316L). Corrosion resistant FDA/USDA compliant materials.

Technical Notes

X rail is for light duty loads, select number of carriages to suit.

Tips

Use hex. socket oval head screws (ISO 7380), see part no. L1971.S.

Product Datasheets

L1971.T Stainless X RailJune 19, 2025, 4:38 PM / 930.12 kB

Stainless RailsJune 19, 2025, 4:55 PM / 5.12 MB

Long Linear RailsJune 19, 2025, 4:49 PM / 50.84 MB

Linear Guideways & RailsJune 19, 2025, 4:45 PM / 78.39 MB

Linear ComponentsJune 19, 2025, 4:38 PM / 38.25 MB
