L1970.U Steel X Rail

Name: L1970.40U-1040
Brand: WC
SKU: L1970.40U-1040
Price: 104.31 EUR
Availability: OutOfStock

U rail (slave), material: Steel

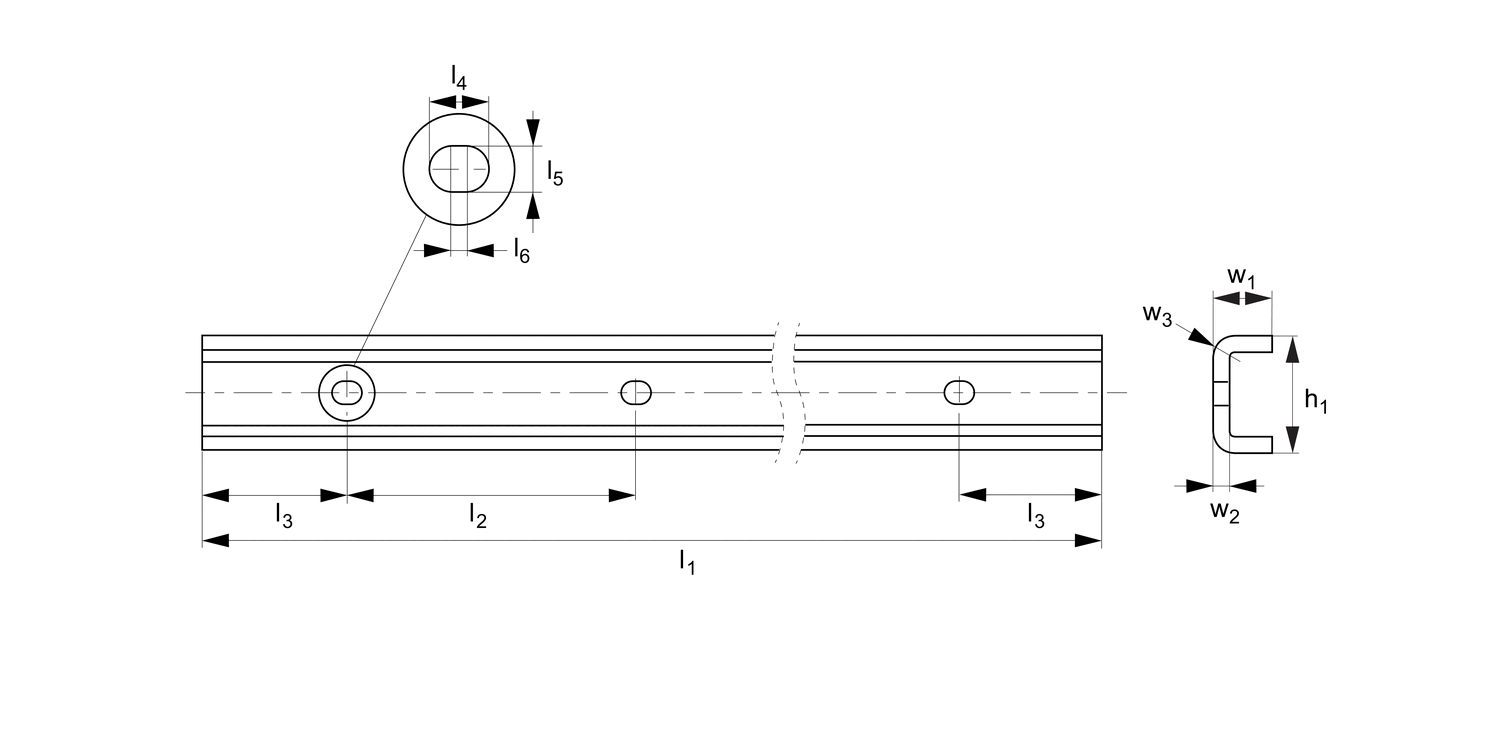

Article properties

Order No.

L1970.40U-1040

Rail size

For screw

h₁

38.5

l₁

1040

l₂

l₃

l₄

l₅

l₆

w₁

21.0

w₂

w₃

Weight kg

1.7

See full product selection

£ 104.31 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1+	£ 104.31

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel (BS1449-HR1), zinc plated.

Technical Notes

Use hex. socket oval head screws (ISO 7380) or Torx screws (see part no. L1970.S).

Product Datasheets

L1970.U Steel X RailJune 19, 2025, 4:38 PM / 922.51 kB

Low Cost RailsJune 19, 2025, 4:55 PM / 5.12 MB

Long Linear RailsJune 19, 2025, 4:49 PM / 50.84 MB

Linear Guideways & RailsJune 19, 2025, 4:45 PM / 78.39 MB

Linear ComponentsJune 19, 2025, 4:38 PM / 38.25 MB

CAD files

L1970.U AcisMay 12, 2017, 7:09 PM / 293.55 kB

L1970.U IGESMay 12, 2017, 7:10 PM / 963.37 kB

L1970.U ParasolidMay 12, 2017, 7:10 PM / 348.09 kB

L1970.U ProEMay 12, 2017, 7:10 PM / 295.29 kB

L1970.U SolidWorksMay 12, 2017, 7:10 PM / 1.40 MB

L1970.U StepMay 12, 2017, 7:11 PM / 351.20 kB
