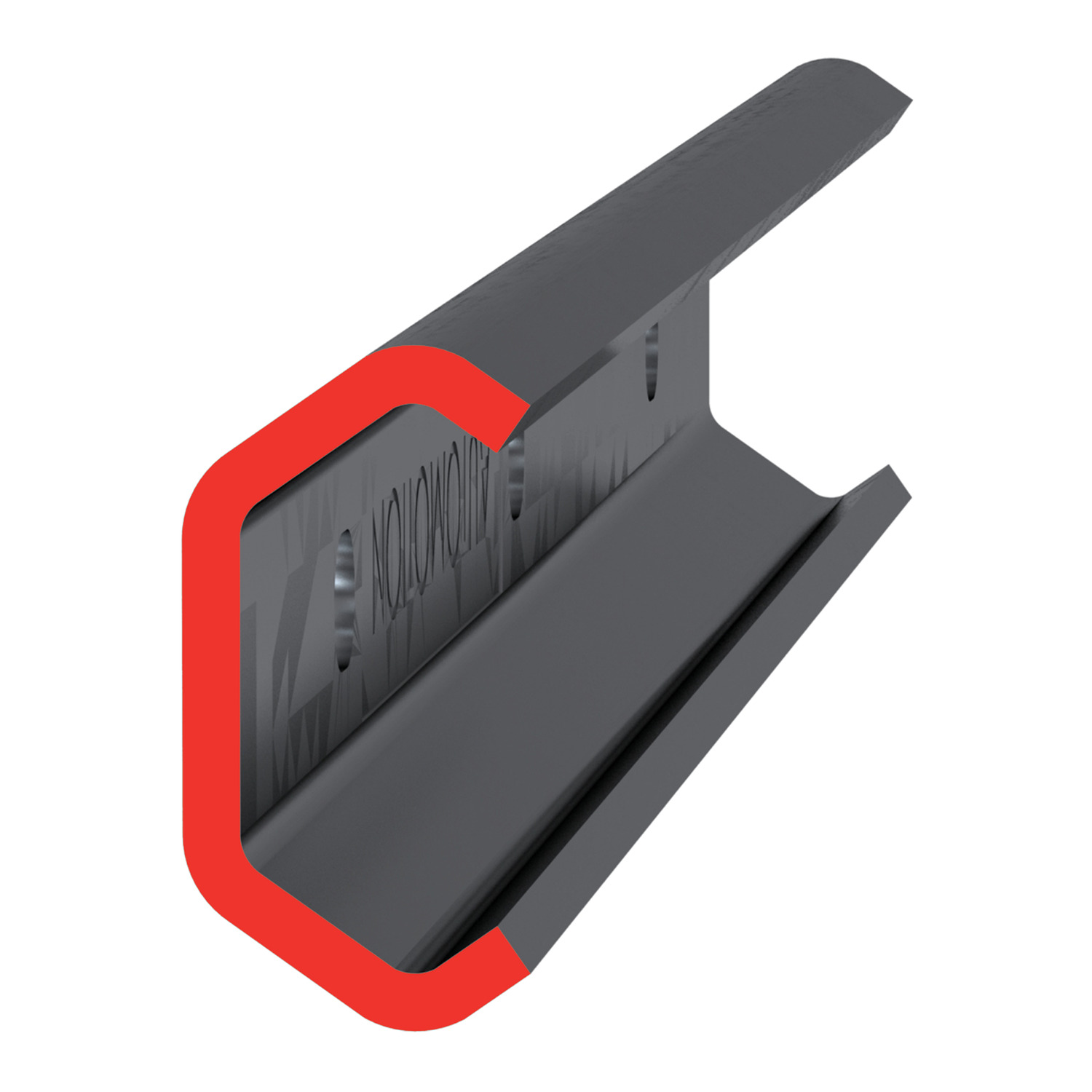

L1970.T Steel X Rail

Name: L1970.30T-1040
Brand: WC
SKU: L1970.30T-1040
Price: 58.47 EUR
Availability: InStock

T rail (master), material: Steel

Article properties

Order No.

L1970.30T-1040

Rail size

For screw

M 5

h₁

29.5

l₁

1040

l₂

l₃

l₄

l₅

6.0

l₆

5.0

w₁

14.1

w₂

2.5

w₃

10.0

w₄

4.5

Weight kg

0.90

See full product selection

£ 58.47 per unit (click for quantity discounts)

Ready to despatch 175
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 58.47	0%
5-9	£ 52.62	10%
10-19	£ 49.70	15%
20-49	£ 43.85	25%
50+	£ 38.01	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel (BS1449-HR1), zinc plated.

Technical Notes

Use hex. socket oval head screws (ISO 7380) or Torx screws (see part no. L1970.S).

Product Datasheets

L1970.T Steel X RailJanuary 3, 2025, 3:25 PM / 925.97 kB

Low Cost RailsJanuary 3, 2025, 3:12 PM / 1.39 MB

Long Linear RailsJanuary 3, 2025, 3:12 PM / 9.71 MB

Linear Guideways & RailsJanuary 3, 2025, 3:13 PM / 15.66 MB

Linear ComponentsJanuary 3, 2025, 3:14 PM / 37.90 MB

CAD files

L1970.T AcisMay 13, 2017, 7:50 AM / 269.22 kB

L1970.T IGESMay 13, 2017, 7:50 AM / 895.41 kB

L1970.T ParasolidMay 13, 2017, 7:51 AM / 401.72 kB

L1970.T ProEMay 13, 2017, 7:51 AM / 292.18 kB

L1970.T SolidWorksMay 13, 2017, 7:51 AM / 1.54 MB

L1970.T StepMay 13, 2017, 7:51 AM / 322.97 kB
