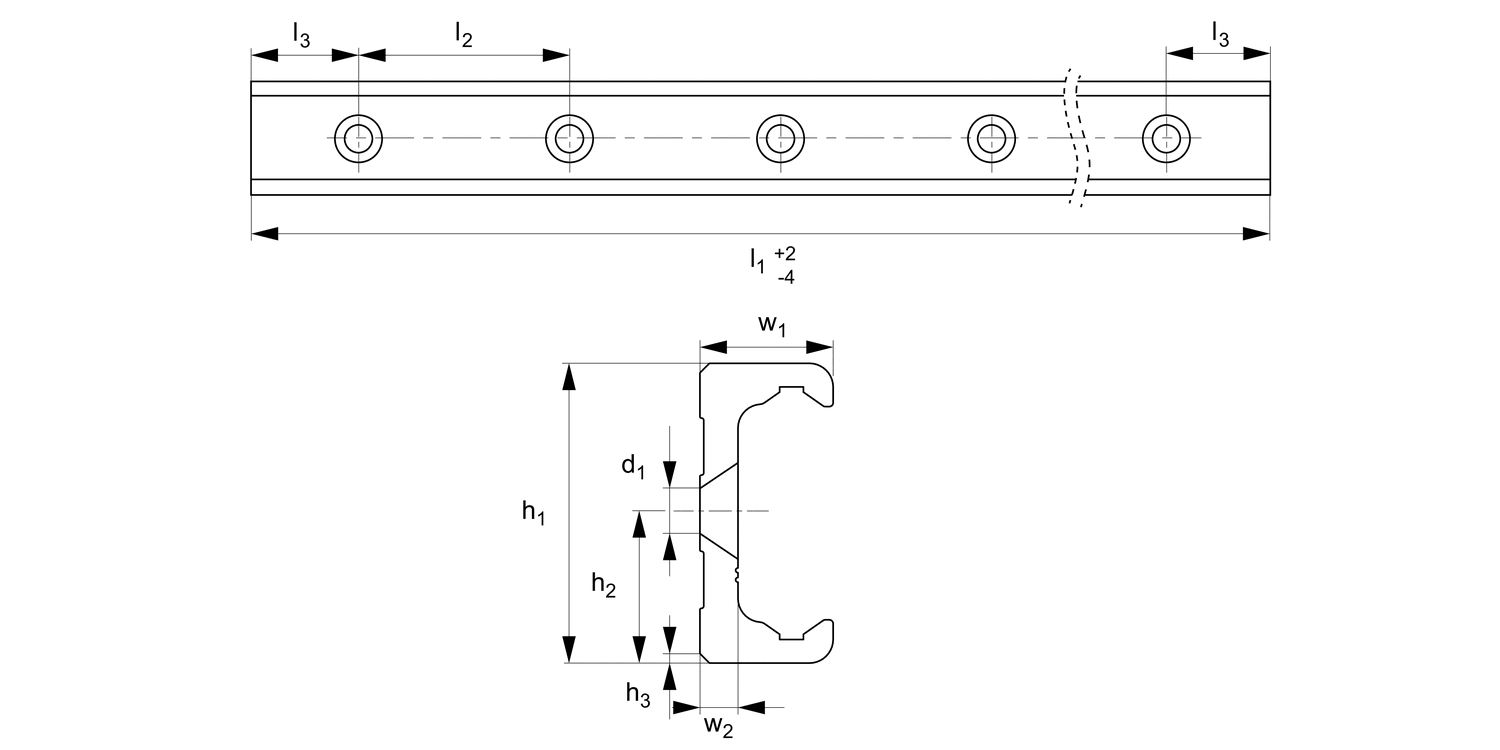

L1963.63T-V Very Heavy Duty T Rail

countersunk holes, material: Steel
L1963.63T-V Very Heavy Duty T Rail
L1963.63T-V Very Heavy Duty T Rail
Article properties
Order No.
L1963.63T-2960-V
d1 for screw
M8
h1
63
h2
31.5
h3
2x45°
l1
2960
l2
80
l3
40
w1
28
w2
8
See full product selection
Ready to despatch 0
Need more? Please call us.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1+-
Download product datasheet
Download FREE CAD

Technical & Application

Material

Carbon steel. Raceways induction hardened and ground.
Electrolytic zinc-plated (excluding raceways).

Technical Notes

The T rail is a master rail and is usually used with a U slave rails (allows for misalignment).
This is the TLV countersunk rail which is usually used with a corresponding ULV rail.
For fixing use countersunk DIN 7991 screws.
Weight: 6,0 Kg/m.

Tips

Standard carriages are the L1963.N versions (die cast aluminium alloy with wipers). Alternatively the L1963.C type is also available (without wipers).

Product Datasheets

L1963.63T-V Very Heavy Duty T RailJanuary 3, 2025, 3:25 PM / 83.54 kB
Easy to Install RailsJanuary 3, 2025, 3:12 PM / 6.51 MB
Long Linear RailsJanuary 3, 2025, 3:12 PM / 9.71 MB
