L1963.63K-C Very Heavy Duty K Rail

counterbored holes, material: Steel
L1963.63K-C Very Heavy Duty K Rail
L1963.63K-C Very Heavy Duty K Rail

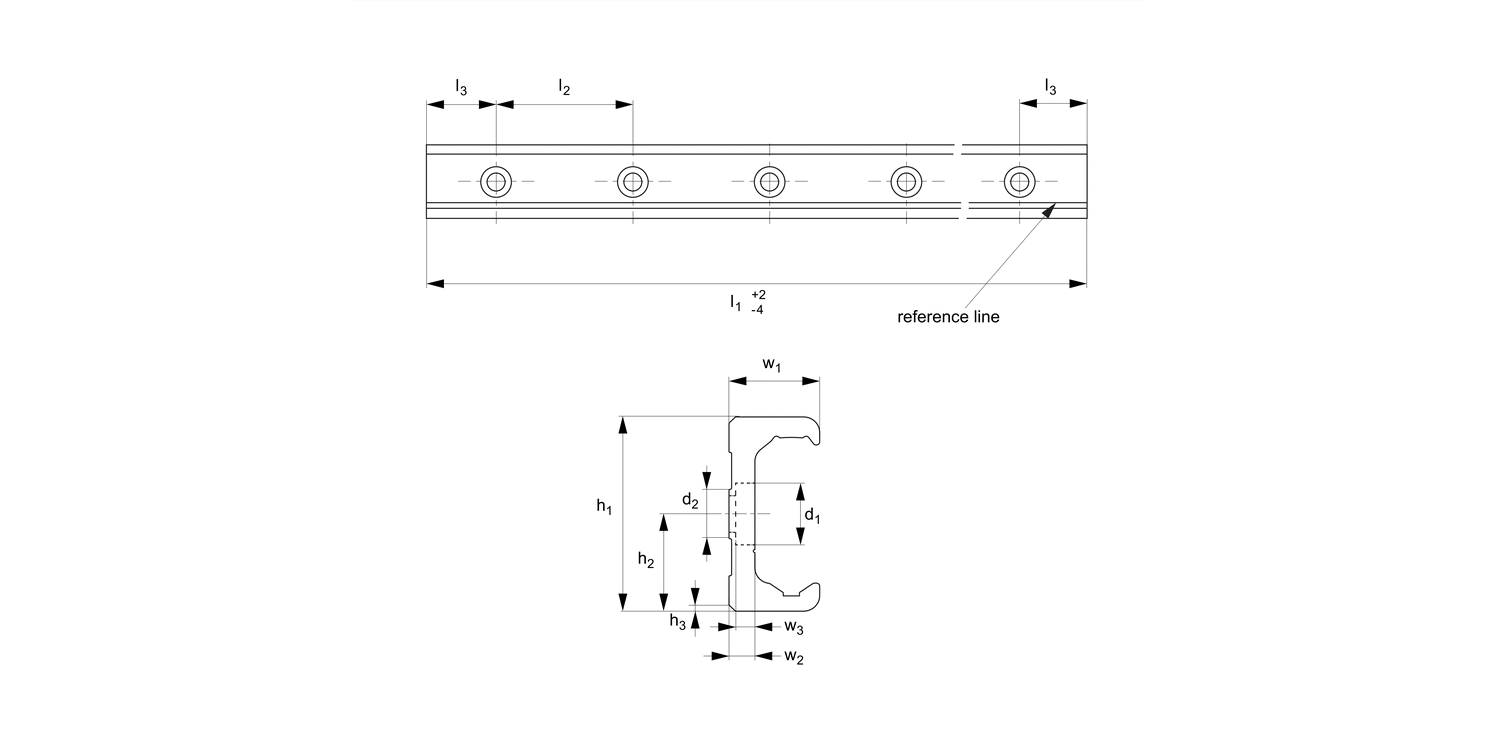

Article properties
Order No.
L1963.63K-2960-C
d1
15
d2 for screws
M8
h1
63
h2
31.5
h3
2x45°
l1
2960
l2
80
l3
40
w1
28
w2
8
w3
5.2
See full product selection
Ready to despatch 0
Need more? Please call us.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1+-
Download product datasheet
Download FREE CAD

Technical & Application

Material

Carbon steel. Raceways induction hardened and ground.
Electrolytic zinc-plated (excluding raceways).

Technical Notes

The K rail is a master rail and is usually used with a U slave rail (allows for system misalignment in two planes).
This is the counterbored rail type (most popular), which is usually used with a corresponding ULC rail.
Special low profile Torx head screws provided free of charge.
Weight: 6,0 Kg/m.

Tips

Standard carriages are the L1963.N versions (die cast aluminium alloy with wipers). Alternatively the L1963.C type is also available (without wipers).

Important Notes

K Rails are not suited for vertical applications.

Product Datasheets

L1963.63K-C Very Heavy Duty K RailJanuary 3, 2025, 3:25 PM / 80.70 kB
Easy to Install RailsJanuary 3, 2025, 3:12 PM / 6.51 MB
Long Linear RailsJanuary 3, 2025, 3:12 PM / 9.71 MB
Linear Guideways & RailsJanuary 3, 2025, 3:13 PM / 15.66 MB
Linear ComponentsJanuary 3, 2025, 3:14 PM / 37.90 MB

CAD files

L1963.63K-C AcisJune 5, 2017, 9:41 AM / 2.15 MB
L1963.63K-C IGESJune 5, 2017, 9:42 AM / 7.54 MB
L1963.63K-C ParasolidJune 5, 2017, 9:42 AM / 1.55 MB
L1963.63K-C ProEJune 5, 2017, 9:41 AM / 2.13 MB
L1963.63K-C SolidWorksJune 5, 2017, 9:42 AM / 9.10 MB
L1963.63K-C StepJune 5, 2017, 9:41 AM / 2.59 MB
