L1943.KLC43
HomeProductsLinear ComponentsLinear Guideways & RailsLong Linear RailsEasy to Install RailsL1943.KLC43L1943.KLC43-2960

L1943.KLC43 Heavy Duty K Rail

counterbored holes, material: Steel
L1943.KLC43 Heavy Duty K Rail
L1943.KLC43 Heavy Duty K Rail

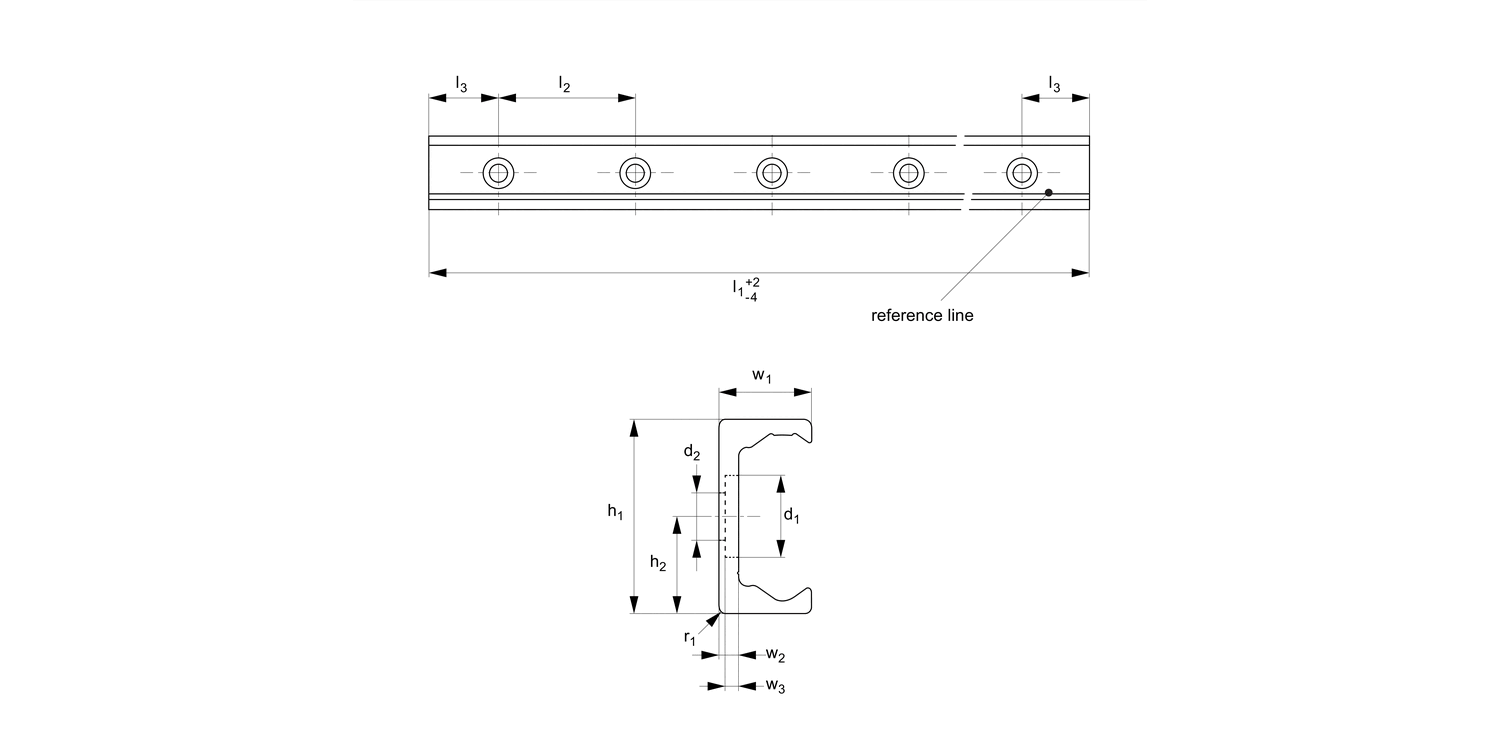

Article properties
Order No.
L1943.KLC43-2960
d1
18
d2 for screws
M8
h1
43
h2
21.5
l1
2960
l2
80
l3
40
r
2.5
w1
21
w2
4.5
w3
3.1
See full product selection
£ 709.80 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-4£ 709.800%
5-9£ 638.8210%
10-19£ 603.3315%
20-49£ 532.3525%
50+£ 461.3735%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Carbon steel. Raceways induction hardened and ground.
Electrolytic zinc-plated (excluding raceways).

Technical Notes

The K rail is a master rail and is usually used with a U slave rail (allows for system misalignment in two planes).
This is the counterbored rail type (most popular), which is usually used with a corresponding ULC rail.
Special low profile Torx head screws provided free of charge.
Weight: 2,6 Kg/m.

Tips

Standard carriages are the L1943.N versions (die cast aluminium alloy with wipers). Alternatively the L1943.C type is also available (without wipers).

Important Notes

K Rails are not suited for vertical applications.

Product Datasheets

L1943.KLC43 Heavy Duty K RailJanuary 3, 2025, 3:25 PM / 79.79 kB
Easy to Install RailsJanuary 3, 2025, 3:12 PM / 6.51 MB
Long Linear RailsJanuary 3, 2025, 3:12 PM / 9.71 MB
Linear Guideways & RailsJanuary 3, 2025, 3:13 PM / 15.66 MB
Linear ComponentsJanuary 3, 2025, 3:14 PM / 37.90 MB

CAD files

L1943.KLC43 AcisMarch 18, 2019, 3:11 PM / 1.83 MB
L1943.KLC43 IGESMarch 18, 2019, 3:11 PM / 7.00 MB
L1943.KLC43 ParasolidMarch 18, 2019, 3:11 PM / 1.26 MB
L1943.KLC43 ProEMarch 18, 2019, 3:11 PM / 15.99 MB
L1943.KLC43 SolidWorksMarch 18, 2019, 3:11 PM / 14.15 MB
L1943.KLC43 StepMarch 18, 2019, 3:11 PM / 2.52 MB
