L1943.43T-C Heavy Duty T Rail

counterbored holes, material: Steel
L1943.43T-C Heavy Duty T Rail
L1943.43T-C Heavy Duty T Rail

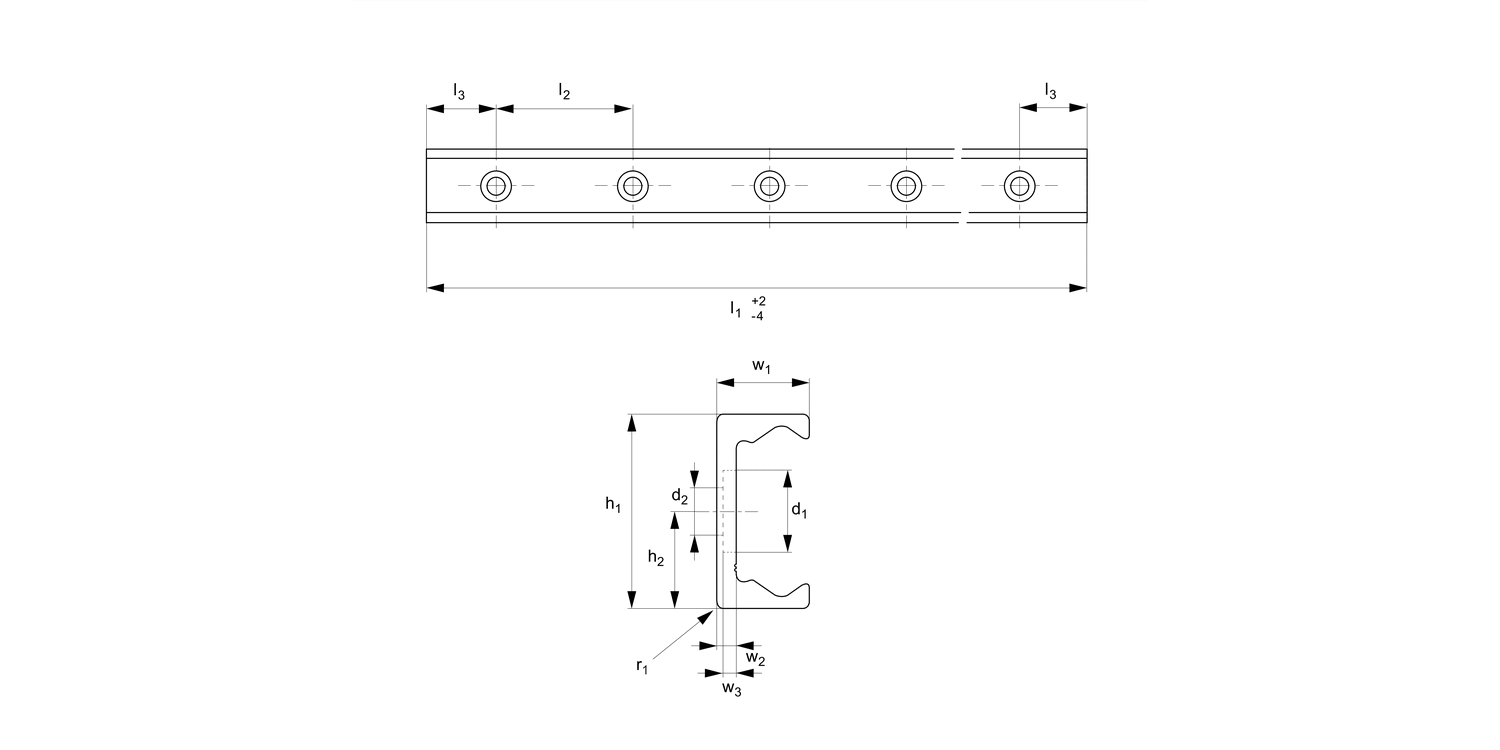

Article properties
Order No.
L1943.43T-2080-C
d1
18
d2 for screws
M8
h1
43
h2
21.5
l1
2080
l2
80
l3
40
r1
2.5
w1
21
w2
4.5
w3
3.1
See full product selection
£ 508.28 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-4£ 508.280%
5-9£ 482.875%
10-19£ 457.4510%
20-49£ 432.0415%
50+£ 381.2125%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Carbon steel. Raceways induction hardened and ground.
Electrolytic zinc-plated (excluding raceways).

Technical Notes

The T rail is a master rail and is usually used with a U slave rail (allows for system misalignment).
This is the counterbored rail type (most popular), which is usually used with a corresponding U-C rail.
Special low profile Torx head screws provided free of charge.
Weight: 2,6 Kg/m.

Tips

Standard carriages are the L1943.CL series.
