L1928.28T-V
HomeProductsLinear ComponentsLinear Guideways & RailsLong Linear RailsEasy to Install RailsL1928.28T-VL1928.28T-2960-V

L1928.28T-V Medium Duty T Rail

countersunk holes, material: Steel
L1928.28T-V Medium Duty T Rail
L1928.28T-V Medium Duty T Rail

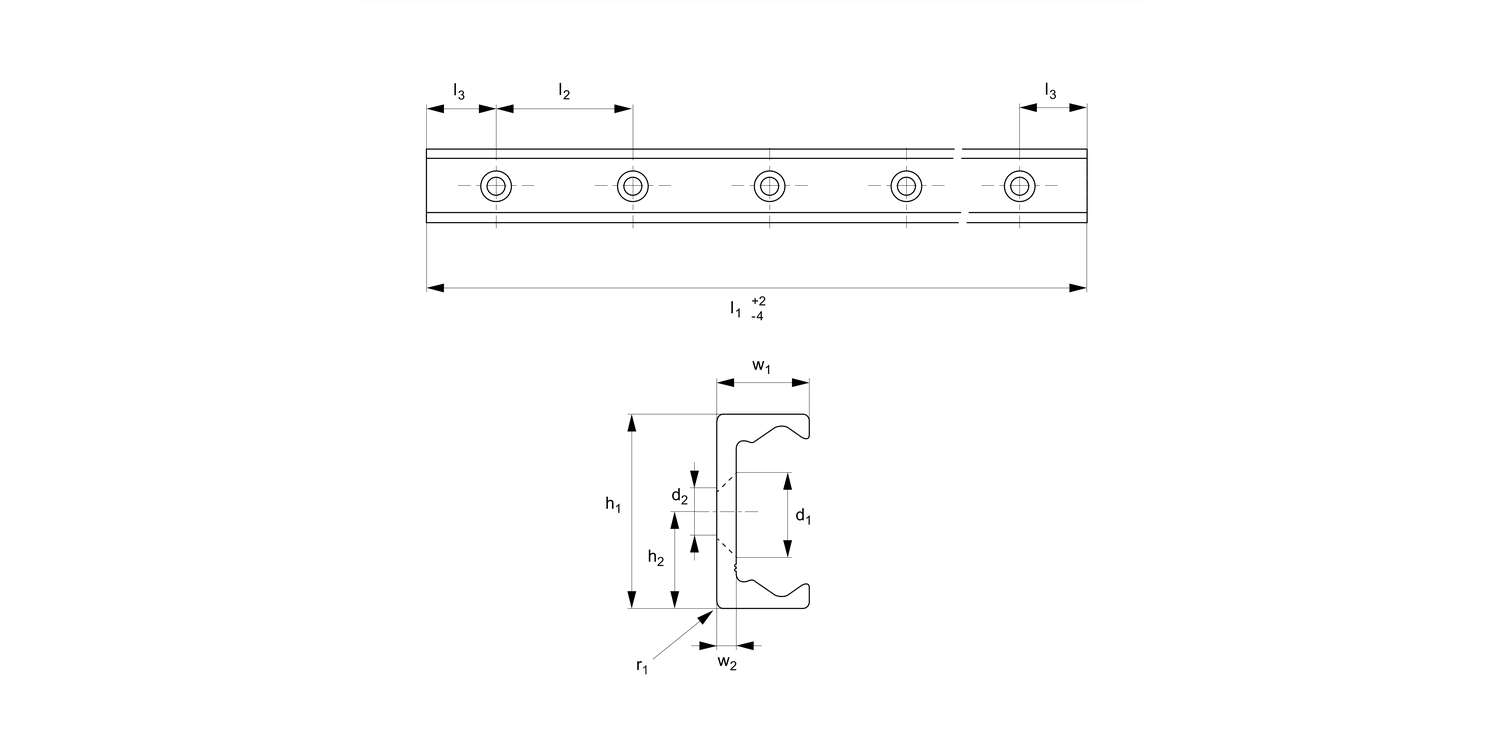

Article properties
Order No.
L1928.28T-2960-V
h1
28
h2
14
l1
2960
l2
80
l3
40
r1
1
w1
12.3
w2
3
d for screws
M5
See full product selection
£ 412.17 per unit (click for quantity discounts)
Ready to despatch 7
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-4£ 412.170%
5-9£ 391.565%
10-19£ 370.9510%
20-49£ 350.3415%
50+£ 309.1325%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Carbon steel. Raceways induction hardened and ground.
Electrolytic zinc-plated (excluding raceways).

Technical Notes

The T rail is a master rail and is usually used with a U slave rail (allows for misalignment).
This is the T-V countersunk rail which is usually used with a corresponding U-V rail.
For fixing use countersunk DIN 7991 screws.
Weight: 1,0 Kg/m.

Tips

Standard carriages are the L1928.N versions (die cast aluminium alloy with wipers). Alternatively the L1928.C type is also available (without wipers).

Product Datasheets

L1928.28T-V Medium Duty T RailJanuary 3, 2025, 3:25 PM / 82.44 kB
Easy to Install RailsJanuary 3, 2025, 3:12 PM / 6.51 MB
Long Linear RailsJanuary 3, 2025, 3:12 PM / 9.71 MB
Linear Guideways & RailsJanuary 3, 2025, 3:13 PM / 15.66 MB
Linear ComponentsJanuary 3, 2025, 3:14 PM / 37.90 MB

CAD files

L1928.28T-V AcisMay 18, 2017, 3:37 PM / 1.60 MB
L1928.28T-V IGESMay 18, 2017, 3:37 PM / 5.73 MB
L1928.28T-V ParasolidMay 18, 2017, 3:37 PM / 1.06 MB
L1928.28T-V ProEMay 18, 2017, 3:37 PM / 1.72 MB
L1928.28T-V SolidWorksMay 18, 2017, 3:37 PM / 6.44 MB
L1928.28T-V StepMay 18, 2017, 3:37 PM / 1.88 MB
