L1918.18U-V
HomeProductsLinear ComponentsLinear Guideways & RailsLong Linear RailsEasy to Install RailsL1918.18U-VL1918.18U-3040-V

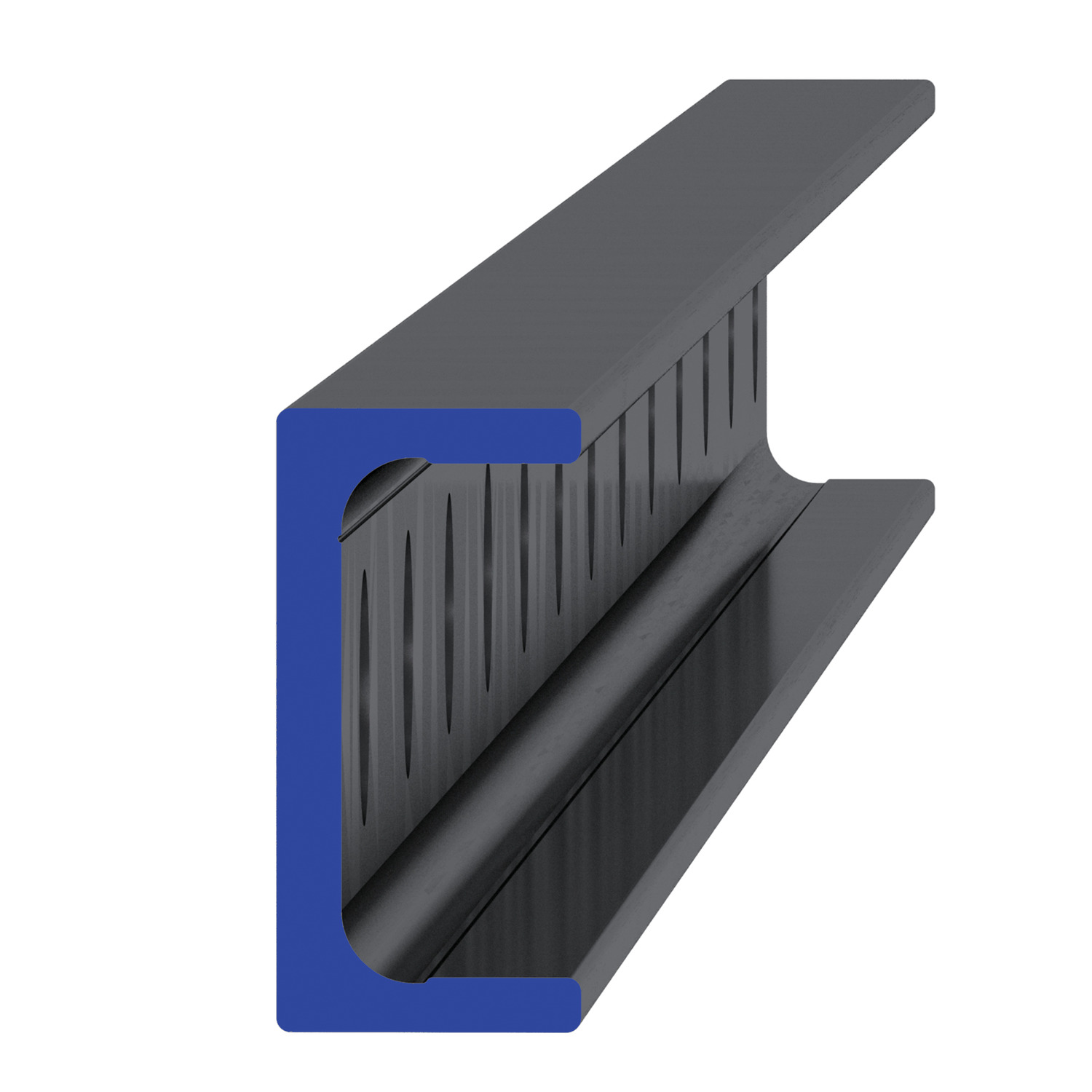

L1918.18U-V Light Duty U Rail

countersunk holes, material: Steel
L1918.18U-V Light Duty U Rail
L1918.18U-V Light Duty U Rail

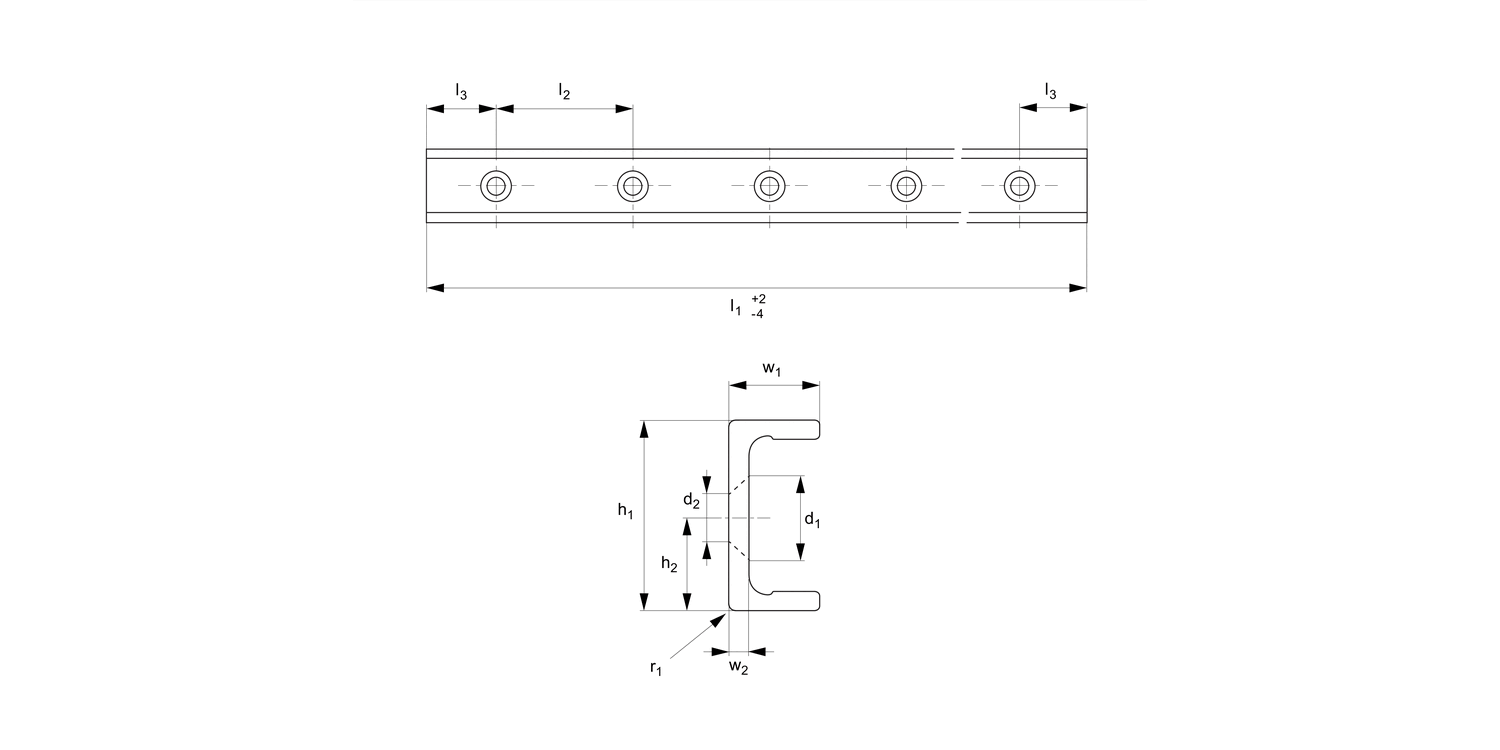

Article properties
Order No.
L1918.18U-3040-V
d2 for screws
M4
h1
18
h2
9
l1
3040
l2
80
l3
40
r1
1
w1
8.25
w2
2.6
See full product selection
£ 419.94 per unit (click for quantity discounts)
Ready to despatch 4
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-4£ 419.940%
5-9£ 377.9510%
10-19£ 356.9515%
20-49£ 314.9625%
50+£ 272.9635%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Carbon steel. Raceways induction hardened and ground.
Electrolytic zinc-plated (excluding raceways).

Technical Notes

The U rail is a slave rail and is usually used with a T master rail.
This is the U-V countersunk rail type which is usually used with a corresponding T-V rail.
For fixing use countersunk DIN 7991 screws.
Weight: 0,55 Kg/m.

Tips

Standard carriages are the L1918.CL series.
