L1918.18U-C
HomeProductsLinear ComponentsLinear Guideways & RailsLong Linear RailsEasy to Install RailsL1918.18U-CL1918.18U-1040-C

L1918.18U-C Light Duty U Rail

counterbored holes, material: Steel

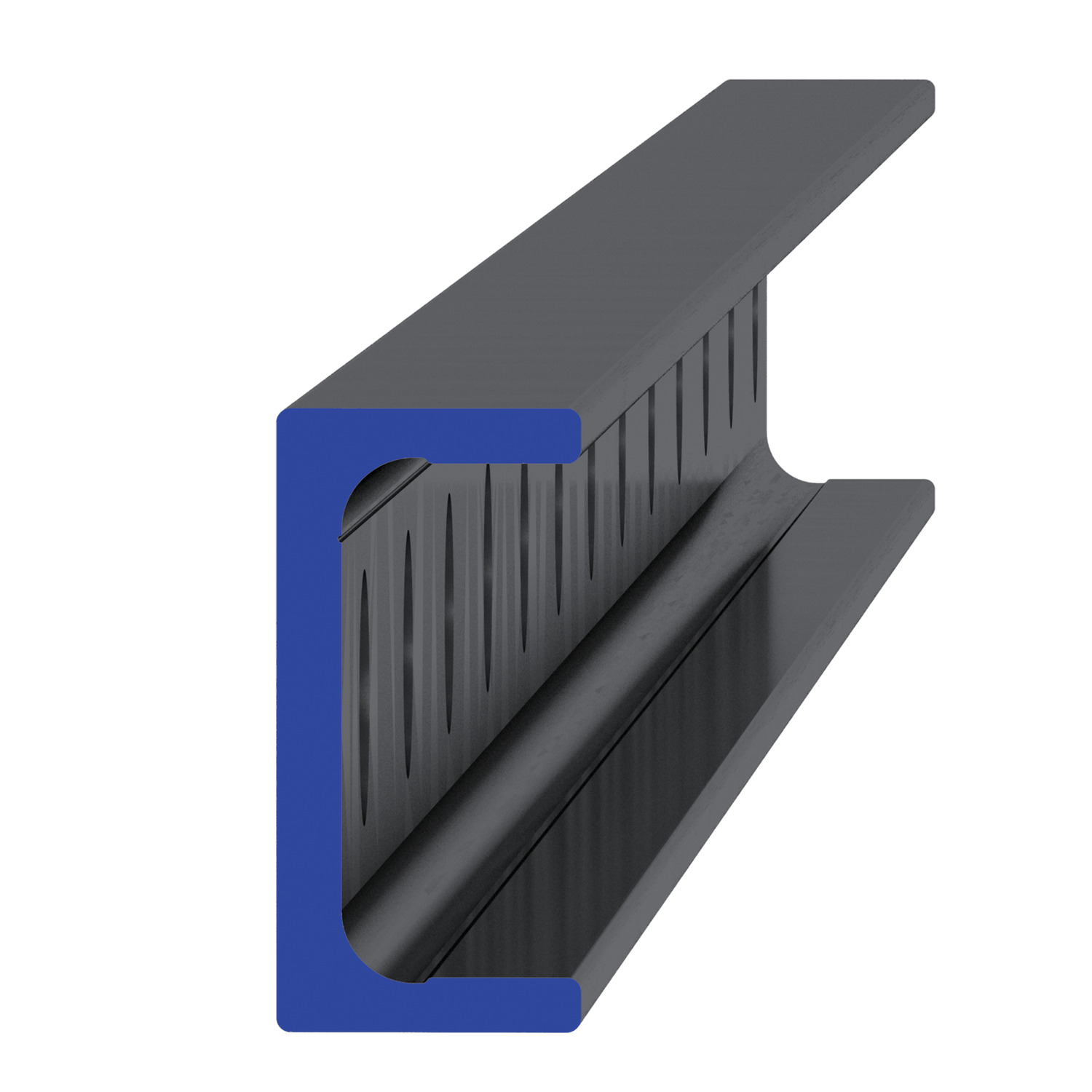

L1918.18U-C Light Duty U Rail

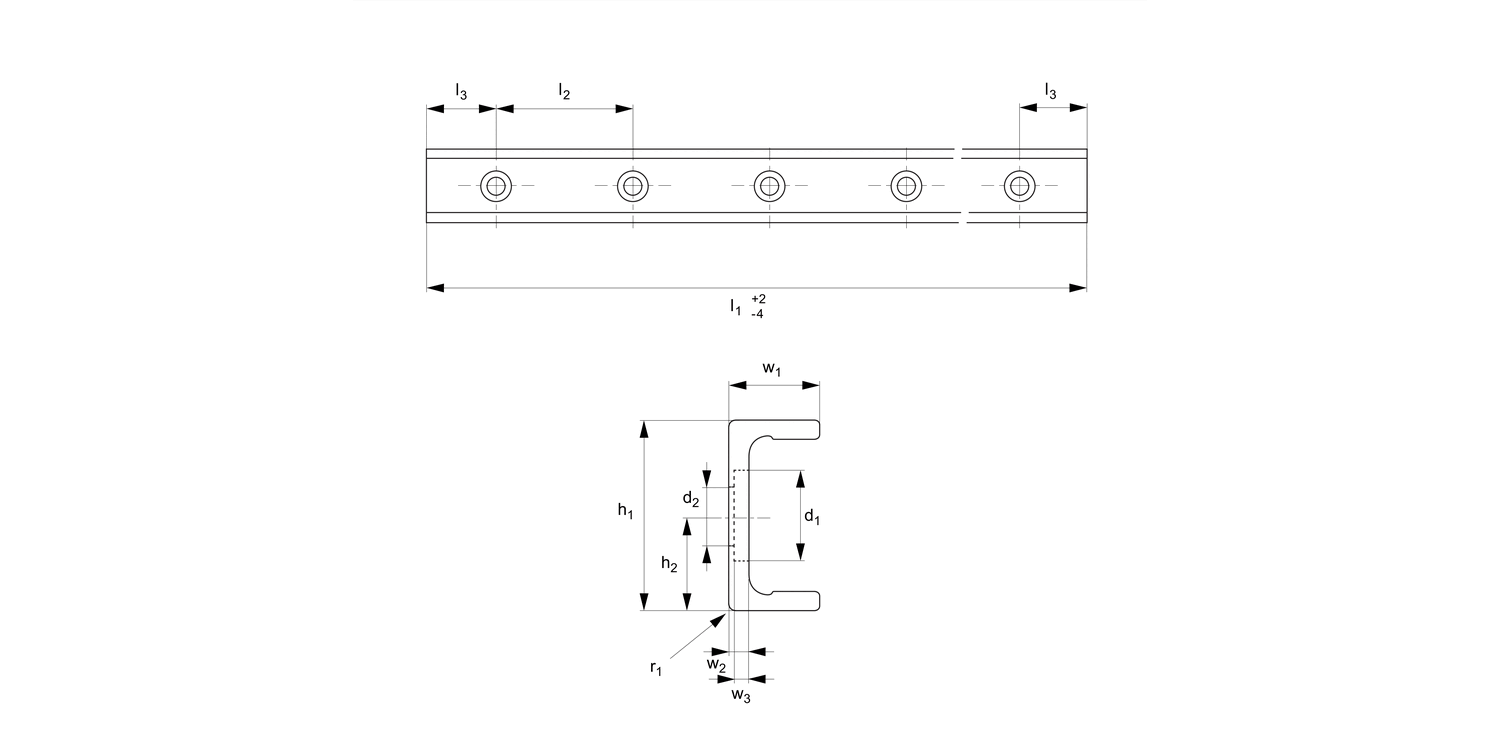

L1918.18U-C Light Duty U Rail
Article properties
Order No.
L1918.18U-1040-C
d1
9.5
d2 for screws
M4
h1
18
h2
9
l1
1040
l2
80
l3
40
r1
1
w1
8.25
w2
2.6
w3
1.9
See full product selection
£ 118.06 per unit (click for quantity discounts)
Ready to despatch 13
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-4£ 118.060%
5-9£ 112.165%
10-19£ 106.2510%
20-49£ 100.3515%
50+£ 88.5525%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Carbon steel. Raceways induction hardened and ground.
Electrolytic zinc-plated (excluding raceways).

Technical Notes

The U rail is a slave rail and is usually used with a T master rail.
This is the U-C counterbored rail type (most popular), which is usually used with a corresponding T-C rail.
Special low profile Torx head screws provided free of charge.
Weight: 0,55 Kg/m.

Tips

Standard carriages are the L1918.CL series.
