L1918.18T-V
HomeProductsLinear ComponentsLinear Guideways & RailsLong Linear RailsEasy to Install RailsL1918.18T-VL1918.18T-0400-V

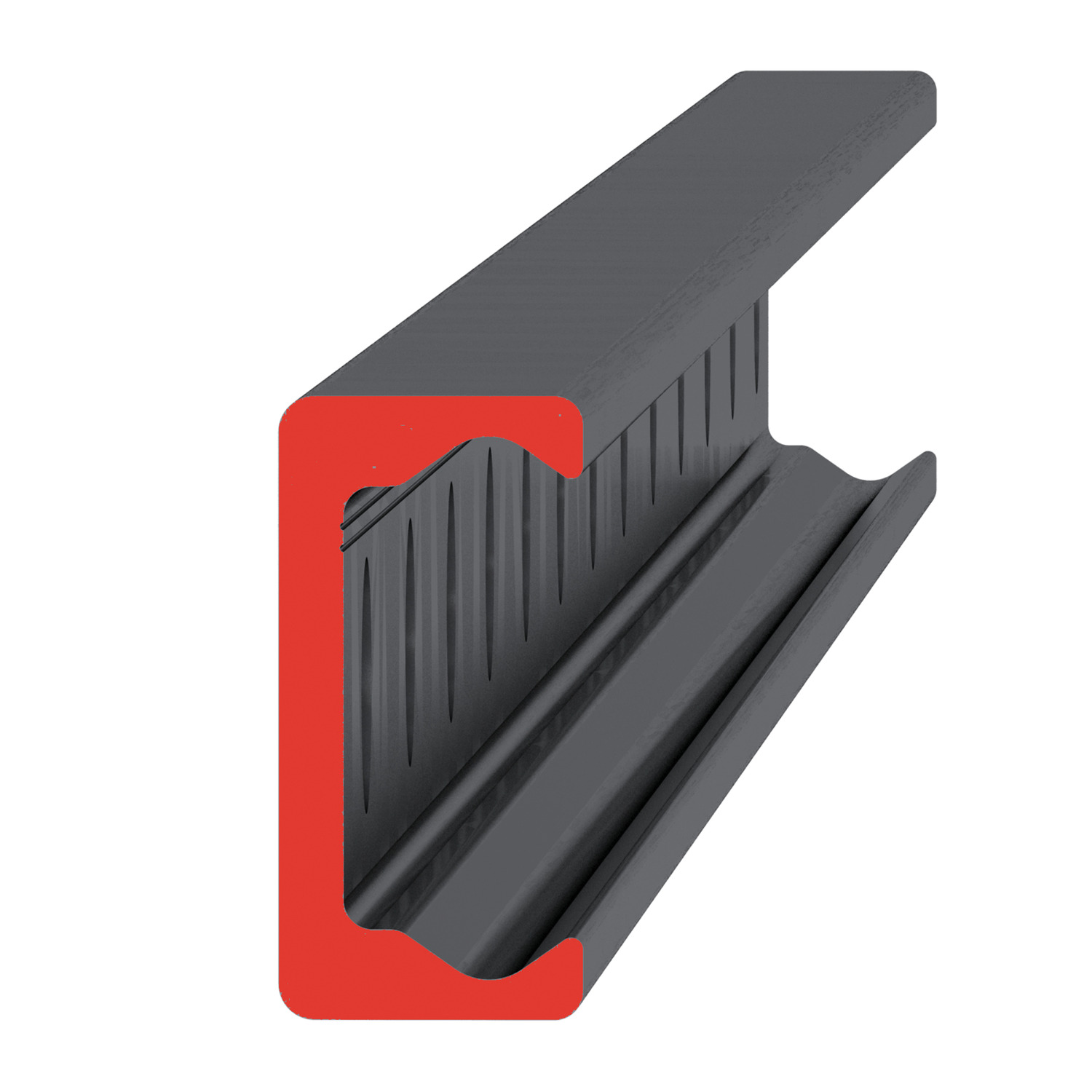

L1918.18T-V Light Duty T Rail

countersunk holes, material: Steel
L1918.18T-V Light Duty T Rail
L1918.18T-V Light Duty T Rail
Article properties
Order No.
L1918.18T-0400-V
d2 for screws
M4
h1
18
h2
9
l1
400
l2
80
l3
40
r1
1.5
w1
8.25
w2
2.8
See full product selection
£ 79.07 per unit (click for quantity discounts)
Ready to despatch 42
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-4£ 79.070%
5-9£ 75.125%
10-19£ 71.1610%
20-49£ 67.2115%
50+£ 59.3025%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Carbon steel. Raceways induction hardened and ground.
Electrolytic zinc-plated (excluding raceways).

Technical Notes

The T rail is a master rail and is usually used with a U slave rails (allows for misalignment).
This is the T-V countersunk rail which is usually used with a corresponding U-V rail.
For fixing use countersunk DIN 7991 screws.
Weight: 0,55 Kg/m.

Tips

Standard carriages are the L1918.CL series.

Product Datasheets

L1918.18T-V Light Duty T Rail19 June 2025, 16:38 / 81.83 kB
Easy to Install Rails19 June 2025, 16:55 / 34.89 MB
Long Linear Rails19 June 2025, 16:49 / 50.84 MB
Linear Guideways & Rails19 June 2025, 16:45 / 78.39 MB
Linear Components19 June 2025, 16:38 / 38.25 MB

CAD files

L1918.18T-V Acis5 May 2017, 12:14 / 971.07 kB
L1918.18T-V IGES5 May 2017, 12:14 / 3.41 MB
L1918.18T-V Parasolid5 May 2017, 12:14 / 722.12 kB
L1918.18T-V ProE5 May 2017, 12:14 / 1.20 MB
L1918.18T-V SolidWorks5 May 2017, 12:14 / 5.07 MB
L1918.18T-V Step5 May 2017, 12:14 / 1.13 MB
