Linear Ball Bushings
closed

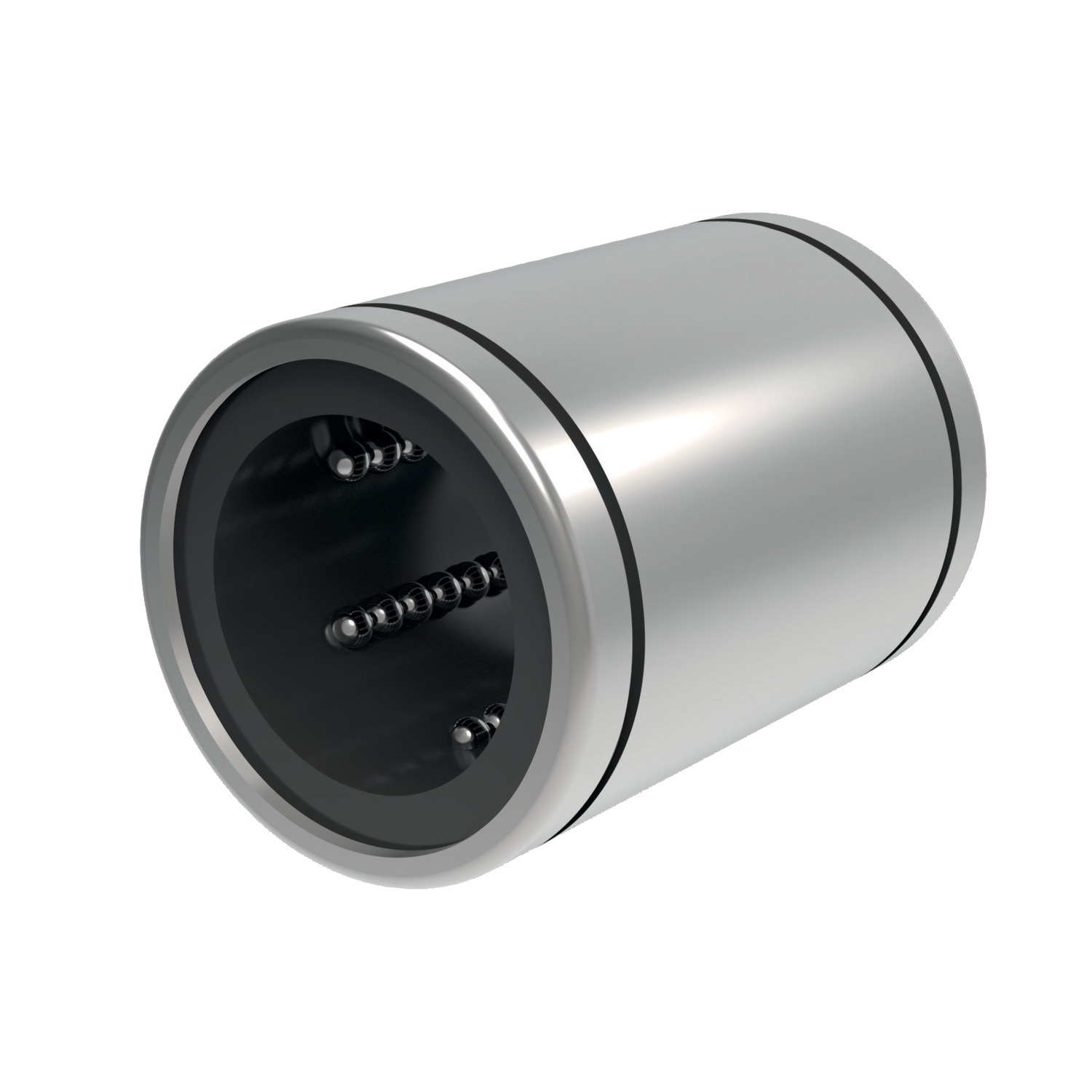

L1706 Closed Linear Ball Bushings
material: Steel
Order No.
L1706.008
d1
tol. h6
8
d2
tol. h6
16
l1
+0|-0.3
25
d3
15.2
l2
+0|-0.3
16.5
l3
1.10
No. of ball circuits
4
Dyn. load C
max.
N
260
Static load C0
max.
N
400
Weight
g
20
£ 12.54 per unit (click for quantity discounts)
Ready to despatch 105
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 12.54 | 0% |
| 10-19 | £ 11.29 | 10% |
| 20-49 | £ 10.66 | 15% |
| 50-99 | £ 10.03 | 20% |
| 100+ | £ 8.78 | 30% |
Technical & Application
Material
Hardened and ground body from bearing steel. Single body resin retainer (POM). Supplied with nitrile rubber (NBR) end-seals -UU as standard.
Technical Notes
For use with hardened shafts only (see part nos. L1770 - L1772) - tolerance h6. Perpendicularity .A is better than 15µ.
For part numbers with -1 shaft tolerance required is g6. Temperature range: -20°C to +80°C.
Steel ball retainers can be supplied for higher temperature applications up to 120°C - with no end seals. Please advise at time of ordering if this is required.
Tips
Superball linear bearings are also available (3 x load rating of standard bushings and 27 x travel life see part nos. L1740 and L1742.)
Nickel plated version with stainless steel balls (for corrosion resistance) on request - or stainless steel version no. L1709.
