Linear Ball Bushings
closed
L1707 Open Linear Ball Bushings
material: Steel
Alternative products you may wish to consider

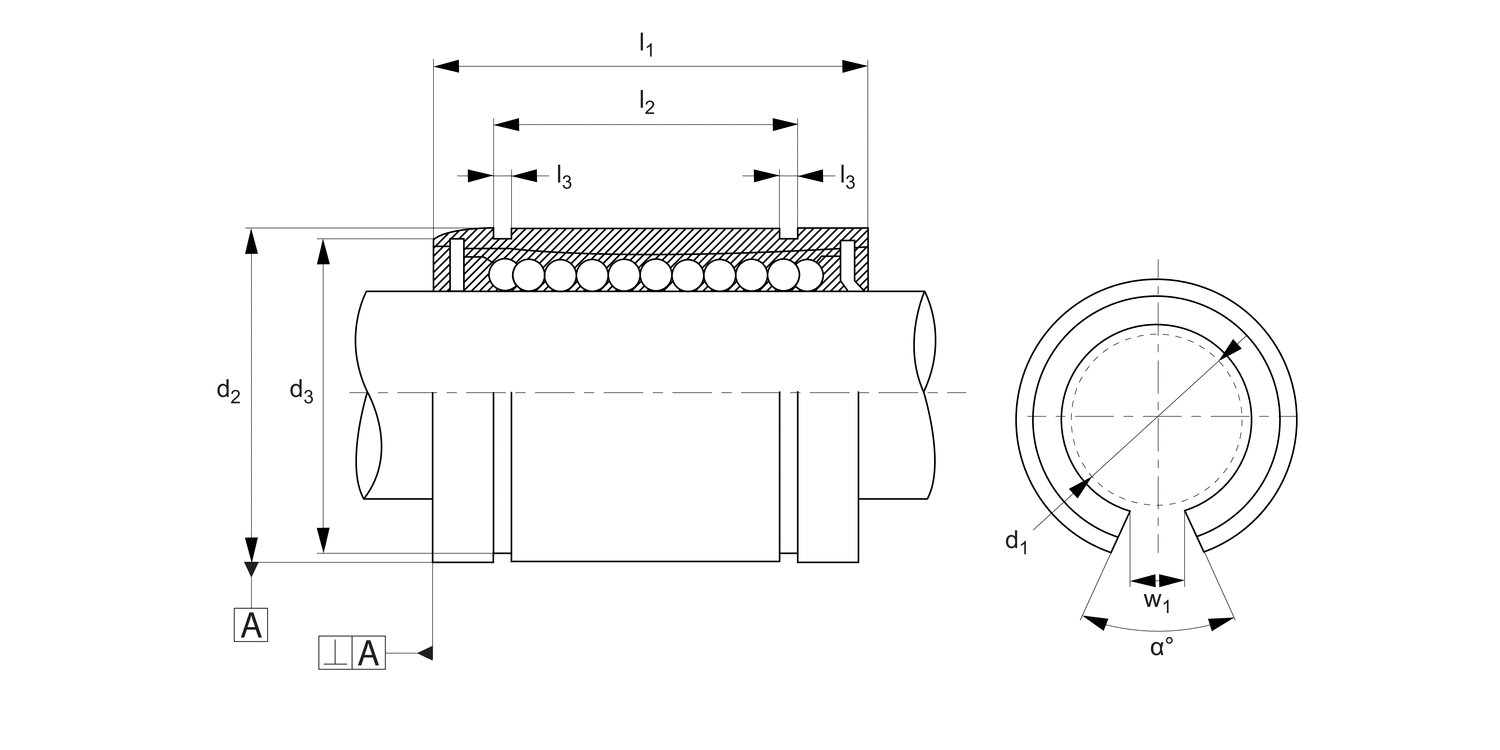

d1
tol. h6
12
d2
tol. h6
22
l1
+0|-0.3
32
d3
21.0
l2
+0|-0.3
22.9
l3
1.30
w1
7.3
α
°
78°
No. of ball circuits
3
Dyn. load C
max.
N
410
Static load C0
max.
N
590
Weight
g
41
£ 14.10 per unit (click for quantity discounts)
d1
tol. h6
16
d2
tol. h6
26
l1
+0|-0.3
36
d3
24.9
l2
+0|-0.3
24.9
l3
1.30
w1
10.0
α
°
78°
No. of ball circuits
4
Dyn. load C
max.
N
770
Static load C0
max.
N
1170
Weight
g
57
£ 21.73 per unit (click for quantity discounts)
d1
tol. h6
20
d2
tol. h6
32
l1
+0|-0.3
45
d3
30.3
l2
+0|-0.3
31.5
l3
1.60
w1
10.0
α
°
60°
No. of ball circuits
5
Dyn. load C
max.
N
860
Static load C0
max.
N
1370
Weight
g
91
£ 25.05 per unit (click for quantity discounts)
d1
tol. h6
25
d2
tol. h6
40
l1
+0|-0.3
58
d3
37.5
l2
+0|-0.3
44.1
l3
1.85
w1
12.5
α
°
60°
No. of ball circuits
6
Dyn. load C
max.
N
980
Static load C0
max.
N
1560
Weight
g
215
£ 33.17 per unit (click for quantity discounts)
d1
tol. h6
30
d2
tol. h6
47
l1
+0|-0.3
68
d3
44.5
l2
+0|-0.3
52.1
l3
1.85
w1
12.5
α
°
50°
No. of ball circuits
6
Dyn. load C
max.
N
1560
Static load C0
max.
N
2740
Weight
g
325
£ 41.62 per unit (click for quantity discounts)
d1
tol. h6
40
d2
tol. h6
62
l1
+0|-0.3
80
d3
59.0
l2
+0|-0.3
60.6
l3
2.15
w1
16.8
α
°
50°
No. of ball circuits
6
Dyn. load C
max.
N
2150
Static load C0
max.
N
4010
Weight
g
705
£ 59.25 per unit (click for quantity discounts)
d1
tol. h6
50
d2
tol. h6
75
l1
+0|-0.3
100
d3
72.0
l2
+0|-0.3
77.6
l3
2.65
w1
21.0
α
°
50°
No. of ball circuits
6
Dyn. load C
max.
N
3820
Static load C0
max.
N
7930
Weight
g
1130
£ 79.81 per unit (click for quantity discounts)
d1
tol. h6
60
d2
tol. h6
90
l1
+0|-0.3
125
d3
86.5
l2
+0|-0.3
101.7
l3
3.15
w1
27.2
α
°
54°
No. of ball circuits
6
Dyn. load C
max.
N
4700
Static load C0
max.
N
9990
Weight
g
2220
£ 112.21 per unit (click for quantity discounts)
d1
tol. h6
d2
tol. h6
l1
+0|-0.3
d3
l2
+0|-0.3
l3
w1
α
°
No. of ball circuits
Dyn. load C
max.
N
Static load C0
max.
N
Weight
g
| Price & Availability | Article | d1 tol. h6 | d2 tol. h6 | l1 +0|-0.3 | d3 | l2 +0|-0.3 | l3 | w1 | α ° | No. of ball circuits | Dyn. load C max. N | Static load C0 max. N | Weight g | ||||||||||||||||||
| L1707.012 | 12 | 22 | 32 | 21.0 | 22.9 | 1.30 | 7.3 | 78° | 3 | 410 | 590 | 41 | |||||||||||||||||||
£ 14.10 per unit (click for quantity discounts) Ready to despatch 109 Need more? Please call us.
d1
tol. h6 12 d2
tol. h6 22 l1
+0|-0.3 32 d3 21.0 l2
+0|-0.3 22.9 l3 1.30 w1 7.3 α
° 78° No. of ball circuits 3 Dyn. load C
max.
N 410 Static load C0
max.
N 590 Weight
g 41 | |||||||||||||||||||||||||||||||
| L1707.016 | 16 | 26 | 36 | 24.9 | 24.9 | 1.30 | 10.0 | 78° | 4 | 770 | 1170 | 57 | |||||||||||||||||||
£ 21.73 per unit (click for quantity discounts) Ready to despatch 14 Need more? Please call us.
d1
tol. h6 16 d2
tol. h6 26 l1
+0|-0.3 36 d3 24.9 l2
+0|-0.3 24.9 l3 1.30 w1 10.0 α
° 78° No. of ball circuits 4 Dyn. load C
max.
N 770 Static load C0
max.
N 1170 Weight
g 57 | |||||||||||||||||||||||||||||||
| L1707.020 | 20 | 32 | 45 | 30.3 | 31.5 | 1.60 | 10.0 | 60° | 5 | 860 | 1370 | 91 | |||||||||||||||||||
£ 25.05 per unit (click for quantity discounts) Ready to despatch 13 Need more? Please call us.
d1
tol. h6 20 d2
tol. h6 32 l1
+0|-0.3 45 d3 30.3 l2
+0|-0.3 31.5 l3 1.60 w1 10.0 α
° 60° No. of ball circuits 5 Dyn. load C
max.
N 860 Static load C0
max.
N 1370 Weight
g 91 | |||||||||||||||||||||||||||||||
| L1707.025 | 25 | 40 | 58 | 37.5 | 44.1 | 1.85 | 12.5 | 60° | 6 | 980 | 1560 | 215 | |||||||||||||||||||
£ 33.17 per unit (click for quantity discounts) Ready to despatch 41 Need more? Please call us.
d1
tol. h6 25 d2
tol. h6 40 l1
+0|-0.3 58 d3 37.5 l2
+0|-0.3 44.1 l3 1.85 w1 12.5 α
° 60° No. of ball circuits 6 Dyn. load C
max.
N 980 Static load C0
max.
N 1560 Weight
g 215 | |||||||||||||||||||||||||||||||
| L1707.030 | 30 | 47 | 68 | 44.5 | 52.1 | 1.85 | 12.5 | 50° | 6 | 1560 | 2740 | 325 | |||||||||||||||||||
£ 41.62 per unit (click for quantity discounts) Ready to despatch 42 Need more? Please call us.
d1
tol. h6 30 d2
tol. h6 47 l1
+0|-0.3 68 d3 44.5 l2
+0|-0.3 52.1 l3 1.85 w1 12.5 α
° 50° No. of ball circuits 6 Dyn. load C
max.
N 1560 Static load C0
max.
N 2740 Weight
g 325 | |||||||||||||||||||||||||||||||
| L1707.040 | 40 | 62 | 80 | 59.0 | 60.6 | 2.15 | 16.8 | 50° | 6 | 2150 | 4010 | 705 | |||||||||||||||||||
£ 59.25 per unit (click for quantity discounts) Ready to despatch 13 Need more? Please call us.
d1
tol. h6 40 d2
tol. h6 62 l1
+0|-0.3 80 d3 59.0 l2
+0|-0.3 60.6 l3 2.15 w1 16.8 α
° 50° No. of ball circuits 6 Dyn. load C
max.
N 2150 Static load C0
max.
N 4010 Weight
g 705 | |||||||||||||||||||||||||||||||
| L1707.050 | 50 | 75 | 100 | 72.0 | 77.6 | 2.65 | 21.0 | 50° | 6 | 3820 | 7930 | 1130 | |||||||||||||||||||
£ 79.81 per unit (click for quantity discounts) Ready to despatch 18 Need more? Please call us.
d1
tol. h6 50 d2
tol. h6 75 l1
+0|-0.3 100 d3 72.0 l2
+0|-0.3 77.6 l3 2.65 w1 21.0 α
° 50° No. of ball circuits 6 Dyn. load C
max.
N 3820 Static load C0
max.
N 7930 Weight
g 1130 | |||||||||||||||||||||||||||||||
| L1707.060 | 60 | 90 | 125 | 86.5 | 101.7 | 3.15 | 27.2 | 54° | 6 | 4700 | 9990 | 2220 | |||||||||||||||||||
£ 112.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
d1
tol. h6 60 d2
tol. h6 90 l1
+0|-0.3 125 d3 86.5 l2
+0|-0.3 101.7 l3 3.15 w1 27.2 α
° 54° No. of ball circuits 6 Dyn. load C
max.
N 4700 Static load C0
max.
N 9990 Weight
g 2220 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Hardened and ground body from bearing steel. Single body resin retainer (POM). Supplied with nitrile rubber (NBR) end-seals -UU as standard.
Technical Notes
For use with hardened shafts only (see part nos. L1770 - L1772) - tolerance h6. Perpendicularity . A is better than 15µ.
Temperature range: -20°C to +80°C.
Steel ball retainers can be supplied for higher temperature applications up to +120°C - with no end seals. Please advise at time of ordering if this is required.
Tips
d2 is the dimension before the bush has been slotted. Superball linear bearings are also available (3 x load rating of standard bushings and 27 x travel life see part nos. L1740 and L1742.)
