Flanged Ball Bushings
circular flange

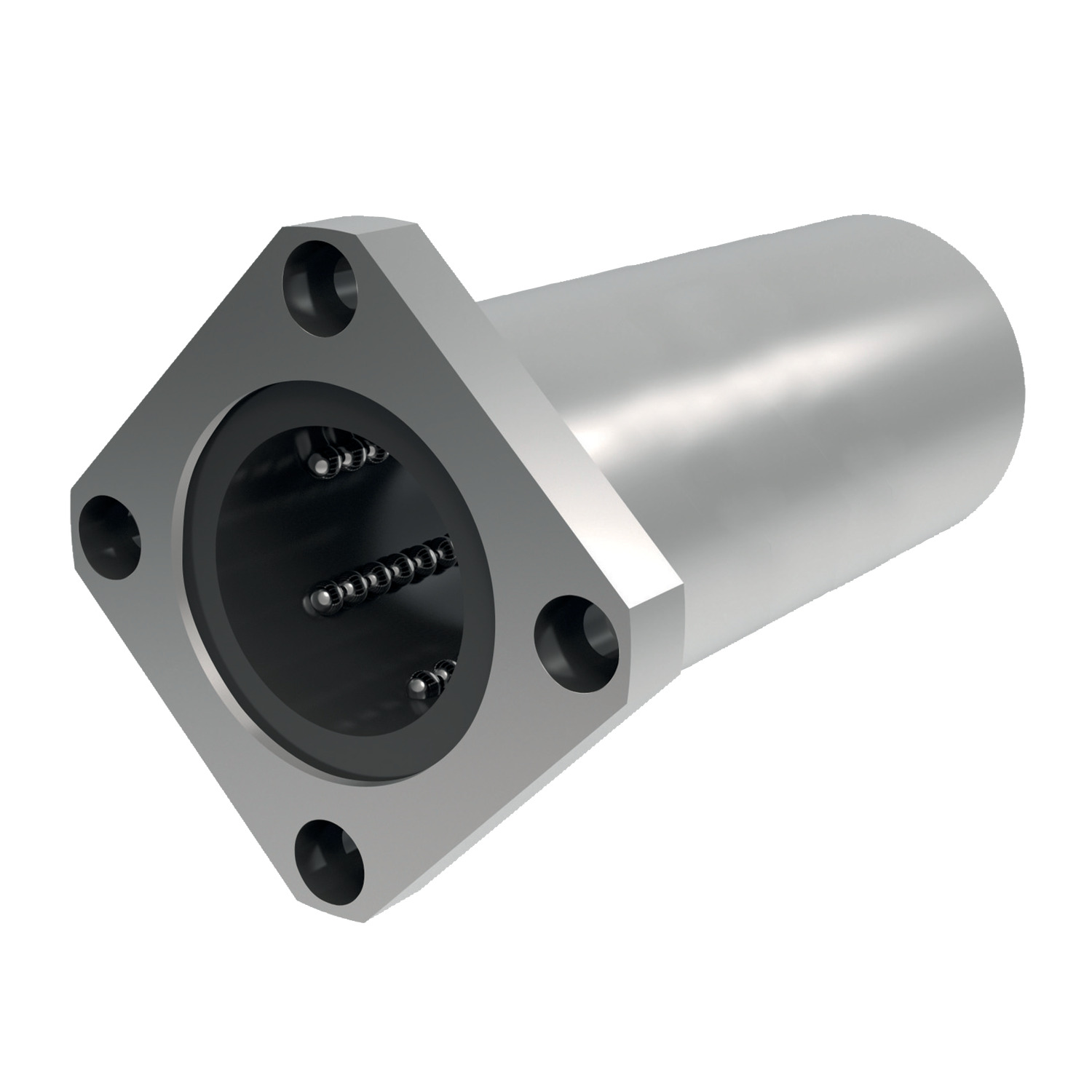

L1723 Long Flanged Linear Ball Bushings
double compliment

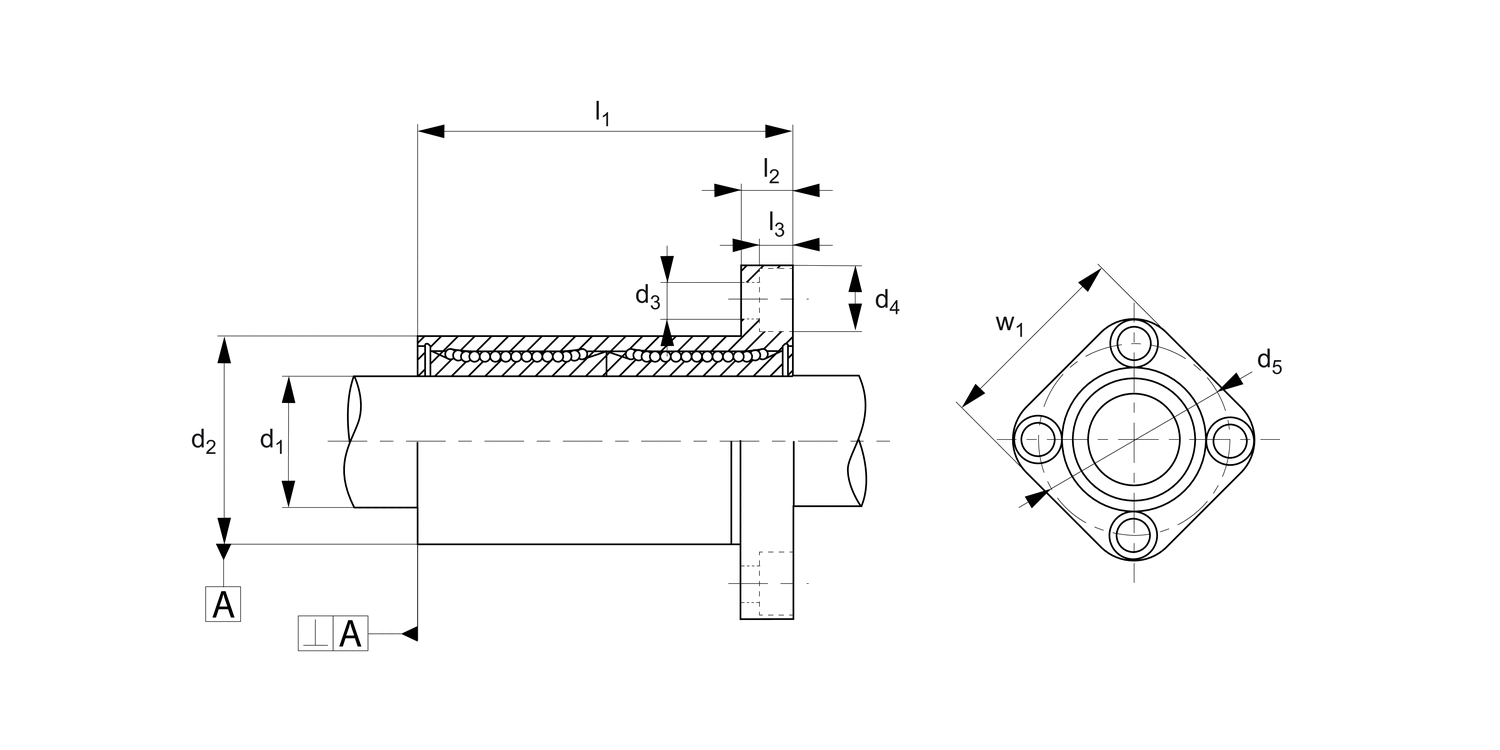

d1
H6
d2
h6
l1
d3
d4
d5
l2
l3
w
Square
-ness A
µ
No. of ball
circuits
Max.
dynamic
load C N
Max.
static
load C0N
X
g
| Order No. | d1 H6 |
d2 h6 |
l1 | d3 | d4 | d5 | l2 | l3 | w | Square -ness A µ |
No. of ball circuits |
Max. dynamic load C N |
Max. static load C0N |
X g |
|||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L1723.006-1 | 6 | 12 | 35 | 3,4 | 6,5 | 20 | 5 | 3,3 | 22 | 15 | 4 | 320 | 520 | 31 | ||||||||||||||||||||||||||||||||||||||
£ 31.42 per unit (click for quantity discounts)
Ready to despatch 8 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
L1723.008 | 8 | 16 | 45 | 3,4 | 6,5 | 24 | 5 | 3,3 | 25 | 15 | 4 | 430 | 780 | 53 | ||||||||||||||||||||||||||||||||||||||
£ 28.74 per unit (click for quantity discounts)
Ready to despatch 19 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
L1723.010-1 | 10 | 19 | 55 | 4,5 | 8,0 | 29 | 6 | 4,4 | 30 | 15 | 4 | 580 | 1100 | 105 | ||||||||||||||||||||||||||||||||||||||
£ 38.56 per unit (click for quantity discounts)
Ready to despatch 19 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
L1723.012 | 12 | 22 | 57 | 4,5 | 8,0 | 32 | 6 | 4,4 | 32 | 15 | 4 | 650 | 1200 | 100 | ||||||||||||||||||||||||||||||||||||||
£ 36.19 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
L1723.016 | 16 | 26 | 70 | 4,5 | 8,0 | 36 | 6 | 4,4 | 35 | 15 | 5 | 1230 | 2350 | 187 | ||||||||||||||||||||||||||||||||||||||
£ 43.59 per unit (click for quantity discounts)
Ready to despatch 29 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
L1723.020 | 20 | 32 | 80 | 5,5 | 9,5 | 43 | 8 | 5,4 | 42 | 17 | 5 | 1400 | 2750 | 260 | ||||||||||||||||||||||||||||||||||||||
£ 50.07 per unit (click for quantity discounts)
Ready to despatch 18 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
L1723.025 | 25 | 40 | 112 | 5,5 | 9,5 | 51 | 8 | 5,4 | 50 | 17 | 6 | 1560 | 3140 | 515 | ||||||||||||||||||||||||||||||||||||||
£ 70.98 per unit (click for quantity discounts)
Ready to despatch 19 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
L1723.030 | 30 | 47 | 123 | 6,6 | 11,0 | 62 | 10 | 6,5 | 60 | 17 | 6 | 2490 | 5490 | 655 | ||||||||||||||||||||||||||||||||||||||
£ 79.21 per unit (click for quantity discounts)
Ready to despatch 38 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
L1723.040 | 40 | 62 | 154 | 9,0 | 14,0 | 80 | 13 | 8,6 | 75 | 20 | 6 | 3430 | 8040 | 1560 | ||||||||||||||||||||||||||||||||||||||
£ 135.21 per unit (click for quantity discounts)
Ready to despatch 2 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
L1723.050 | 50 | 75 | 192 | 9,0 | 14,0 | 94 | 13 | 8,6 | 88 | 20 | 6 | 6080 | 15900 | 3500 | ||||||||||||||||||||||||||||||||||||||
£ 220.40 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
L1723.060 | 60 | 90 | 211 | 11,0 | 17,5 | 112 | 18 | 10,8 | 106 | 25 | 6 | 7650 | 20000 | 4500 | ||||||||||||||||||||||||||||||||||||||
£ 268.01 per unit (click for quantity discounts)
Ready to despatch 0 Need more? Manufactured within 7-10 working days from order. Typical UK delivery charge: £5.25 ( Goods < £30 ) otherwise £9.50. Confirmed at checkout.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Hardened and ground body from bearing steel.
Single body resin retainer (POM).
Supplied with nitrile rubber (NBR) end-seals -UU as standard.
Technical Notes
For use with hardened shafts only (see part nos. L1770 - L1772) - tolerance h6. For part numbers with -1 shaft tolerance required is g6. Temperature range : -20°C to +80°C.
Steel ball retainers can be supplied for higher temperature applications (up to +120°C - with no end seals. Please advise at time of ordering if this is required.
Tips
Nickel plated version with stainless steel balls (for corrosion resistance) on request - or stainless steel version no. L1725.
