P1243 Retaining Pins (R Clips)

R clips, material: Zinc-plated or Stainless A2
P1243 Retaining Pins (R Clips)
P1243 Retaining Pins (R Clips)
Download product datasheet
Download FREE CAD

Alternative products you may wish to consider

P1240 - Steel Cotter Pins
Steel Cotter Pins
P1241 - Stainless Cotter Pins
Stainless Cotter Pins
P1242 - Clevis Pins
Steel Clevis Pins
P1243 - Retaining Pins (R Clips)
Retaining Pins
Steel or stainless steel

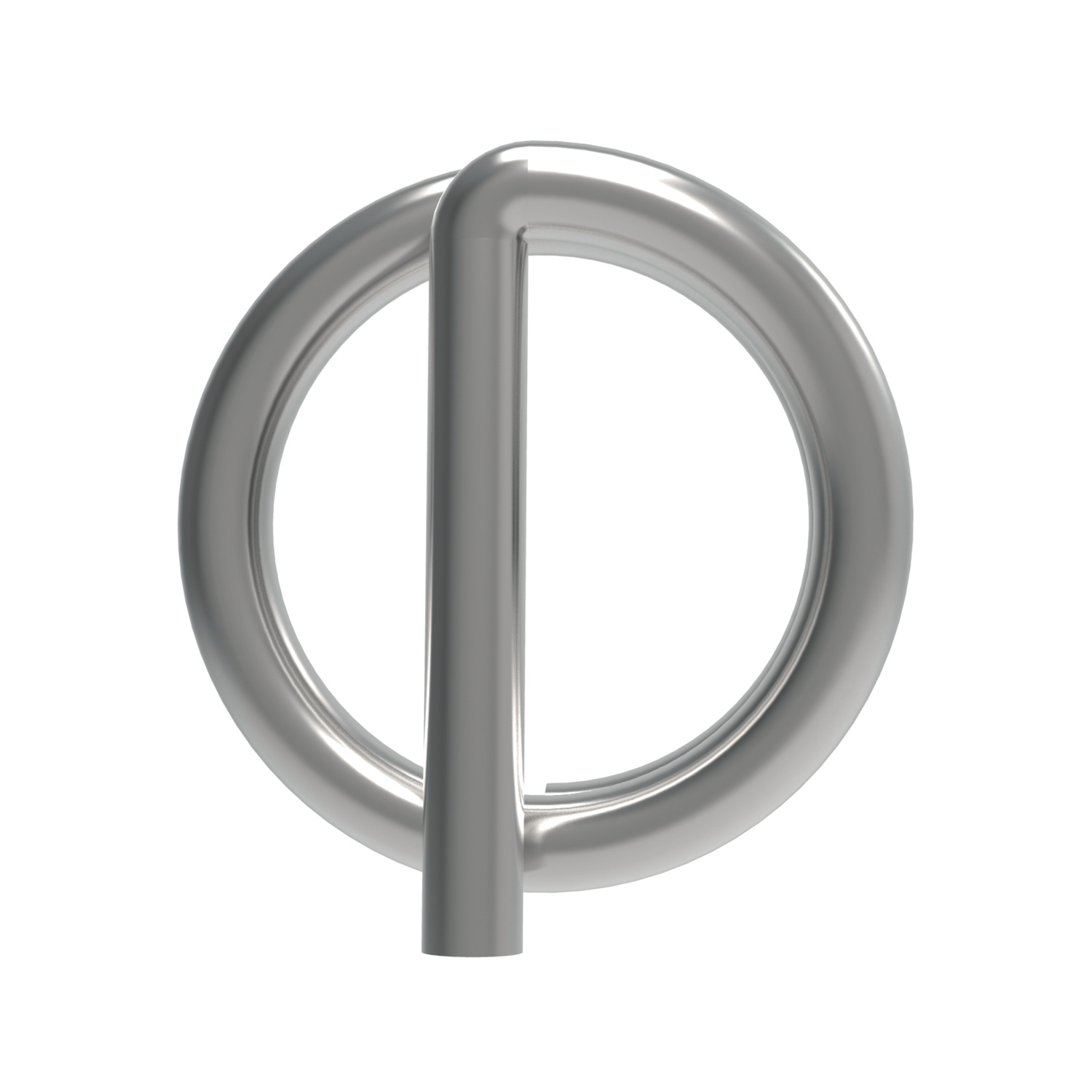

P1244 - Locking Rings
Locking Rings
P1243.015-S-ZP Retaining Pins Single Loop for Hole Ø1.5
Retaining Pins Single Loop for Hole Ø1.5

P1243.015-S-ZP

For hole dia. d1
1.5
Type
Single
d2 range
5-8
d4
-
l1
22
l2
-
Wire dia. d3
1.2
Material
Steel
£ 0.14 per unit (click for quantity discounts)
P1243.020-S-ZP Retaining Pins Single Loop for Hole Ø2 Z
Retaining Pins Single Loop for Hole Ø2 Z

P1243.020-S-ZP

For hole dia. d1
2.0
Type
Single
d2 range
6-10
d4
8.5
l1
25
l2
14.4
Wire dia. d3
1.6
Material
Steel
£ 0.18 per unit (click for quantity discounts)
P1243.022-S-ZP Retaining Pins Single Loop for Hole Ø2.2
Retaining Pins Single Loop for Hole Ø2.2

P1243.022-S-ZP

For hole dia. d1
2.2
Type
Single
d2 range
8-13
d4
8.8
l1
36
l2
15.8
Wire dia. d3
1.8
Material
Steel
£ 0.18 per unit (click for quantity discounts)
P1243.025-S-ZP Retaining Pins Single Loop for Hole Ø2.5
Retaining Pins Single Loop for Hole Ø2.5

P1243.025-S-ZP

For hole dia. d1
2.5
Type
Single
d2 range
9-14
d4
10.2
l1
56
l2
25.6
Wire dia. d3
2.0
Material
Steel
£ 0.20 per unit (click for quantity discounts)
P1243.035-S-ZP Retaining Pins Single Loop for Hole Ø3.5
Retaining Pins Single Loop for Hole Ø3.5

P1243.035-S-ZP

For hole dia. d1
3.5
Type
Single
d2 range
10-20
d4
18.5
l1
72
l2
30.0
Wire dia. d3
3.0
Material
Steel
£ 0.20 per unit (click for quantity discounts)
P1243.045-S-ZP Retaining Pins Single Loop for Hole Ø4.5
Retaining Pins Single Loop for Hole Ø4.5

P1243.045-S-ZP

For hole dia. d1
4.0
Type
Single
d2 range
16-25
d4
20.7
l1
60
l2
33.4
Wire dia. d3
4.0
Material
Steel
£ 0.24 per unit (click for quantity discounts)
P1243.060-S-ZP Retaining Pins Single Loop for Hole Ø6 Z
Retaining Pins Single Loop for Hole Ø6 Z

P1243.060-S-ZP

For hole dia. d1
6.0
Type
Single
d2 range
20-28
d4
25.0
l1
102
l2
43.0
Wire dia. d3
5.0
Material
Steel
£ 0.32 per unit (click for quantity discounts)
P1243.070-S-ZP Retaining Pins Single Loop for Hole Ø7 Z
Retaining Pins Single Loop for Hole Ø7 Z

P1243.070-S-ZP

For hole dia. d1
7.0
Type
Single
d2 range
28-40
d4
-
l1
124
l2
-
Wire dia. d3
6.0
Material
Steel
£ 0.46 per unit (click for quantity discounts)
P1243.080-S-ZP Retaining Pins Single Loop for Hole Ø8 Z
Retaining Pins Single Loop for Hole Ø8 Z

P1243.080-S-ZP

For hole dia. d1
8.0
Type
Single
d2 range
28-45
d4
28.9
l1
110
l2
59.0
Wire dia. d3
7.0
Material
Steel
£ 0.55 per unit (click for quantity discounts)
P1243.090-S-ZP Retaining Pins Single Loop for Hole Ø9 Z
Retaining Pins Single Loop for Hole Ø9 Z

P1243.090-S-ZP

For hole dia. d1
9.0
Type
Single
d2 range
30-45
d4
-
l1
128
l2
-
Wire dia. d3
8.0
Material
Steel
P1243.020-S-A2 Retaining Pins Single Loop for Hole Ø2 A
Retaining Pins Single Loop for Hole Ø2 A

P1243.020-S-A2

For hole dia. d1
2.5
Type
Single
d2 range
8-7
d4
10.0
l1
40
l2
25.0
Wire dia. d3
2.0
Material
A2 s/s
£ 0.23 per unit (click for quantity discounts)
P1243.025-S-A2 Retaining Pins Single Loop for Hole Ø2.5
Retaining Pins Single Loop for Hole Ø2.5

P1243.025-S-A2

For hole dia. d1
3.0
Type
Single
d2 range
10-16
d4
11.0
l1
46
l2
24.0
Wire dia. d3
2.5
Material
A2 s/s
£ 0.28 per unit (click for quantity discounts)
P1243.030-S-A2 Retaining Pins Single Loop for Hole Ø3 A
Retaining Pins Single Loop for Hole Ø3 A

P1243.030-S-A2

For hole dia. d1
3.5
Type
Single
d2 range
16-18
d4
16.0
l1
60
l2
34.0
Wire dia. d3
3.0
Material
A2 s/s
£ 0.45 per unit (click for quantity discounts)
P1243.045-S-A2 Retaining Pins Single Loop for Hole Ø4.5
Retaining Pins Single Loop for Hole Ø4.5

P1243.045-S-A2

For hole dia. d1
4.5
Type
Single
d2 range
18-20
d4
19.0
l1
64
l2
36.0
Wire dia. d3
4.0
Material
A2 s/s
£ 0.97 per unit (click for quantity discounts)
P1243.050-S-A2 Retaining Pins Single Loop for Hole Ø5 A
Retaining Pins Single Loop for Hole Ø5 A

P1243.050-S-A2

For hole dia. d1
6.0
Type
Single
d2 range
20-28
d4
26.0
l1
82
l2
45.0
Wire dia. d3
5.0
Material
A2 s/s
£ 1.10 per unit (click for quantity discounts)
P1243.060-S-A2 Retaining Pins Single Loop for Hole Ø6 A
Retaining Pins Single Loop for Hole Ø6 A

P1243.060-S-A2

For hole dia. d1
7.0
Type
Single
d2 range
28-40
d4
30.0
l1
110
l2
60.0
Wire dia. d3
6.0
Material
A2 s/s
£ 2.27 per unit (click for quantity discounts)
P1243.020-S-A4 Retaining pins single loop Ø2 A4 s/s
Retaining pins single loop Ø2 A4 s/s

P1243.020-S-A4

For hole dia. d1
2.5
Type
Single
d2 range
8-7
d4
10.0
l1
40
l2
25.0
Wire dia. d3
2.0
Material
A4 s/s
P1243.025-S-A4 Retaining pins single loop Ø2 A4 s/s
Retaining pins single loop Ø2 A4 s/s

P1243.025-S-A4

For hole dia. d1
3.0
Type
Single
d2 range
10-16
d4
11.0
l1
46
l2
24.0
Wire dia. d3
2.5
Material
A4 s/s
£ 187.10 per 100 units (click for quantity discounts)
P1243.030-S-A4 Retaining pins single loop Ø3 A4 s/s
Retaining pins single loop Ø3 A4 s/s

P1243.030-S-A4

For hole dia. d1
3.5
Type
Single
d2 range
16-18
d4
16.0
l1
60
l2
34.0
Wire dia. d3
3.0
Material
A4 s/s
£ 0.89 per unit (click for quantity discounts)
P1243.045-S-A4 Retaining Pins Single Loop for Hole Ø4.5 OVERALL LENGTH 90mm
Retaining Pins Single Loop for Hole Ø4.5 OVERALL LENGTH 90mm

P1243.045-S-A4

For hole dia. d1
4.5
Type
Single
d2 range
18-20
d4
19.0
l1
64
l2
36.0
Wire dia. d3
4.0
Material
A4 s/s
£ 0.93 per unit (click for quantity discounts)
P1243.050-S-A4 Retaining pins single loop Ø5 A4 s/s
Retaining pins single loop Ø5 A4 s/s

P1243.050-S-A4

For hole dia. d1
6.0
Type
Single
d2 range
20-28
d4
26.0
l1
82
l2
45.0
Wire dia. d3
5.0
Material
A4 s/s
£ 349.00 per 100 units (click for quantity discounts)
P1243.060-S-A4 Retaining pins single loop Ø6 A4 s/s
Retaining pins single loop Ø6 A4 s/s

P1243.060-S-A4

For hole dia. d1
7.0
Type
Single
d2 range
28-40
d4
30.0
l1
110
l2
60.0
Wire dia. d3
6.0
Material
A4 s/s
£ 392.00 per 100 units (click for quantity discounts)
P1243.025-D-ZP Retaining Pins Double Loop for Hole Ø2.5
Retaining Pins Double Loop for Hole Ø2.5

P1243.025-D-ZP

For hole dia. d1
2.5
Type
Double
d2 range
8-14
d4
10.3
l1
52
l2
26.3
Wire dia. d3
2.0
Material
Steel
£ 0.31 per unit (click for quantity discounts)
P1243.035-D-ZP Retaining Pins Double Loop for Hole Ø3.5
Retaining Pins Double Loop for Hole Ø3.5

P1243.035-D-ZP

For hole dia. d1
3.5
Type
Double
d2 range
14-20
d4
16.0
l1
72
l2
36.4
Wire dia. d3
3.0
Material
Steel
£ 0.44 per unit (click for quantity discounts)
P1243.045-D-ZP Retaining Pins Double Loop for Hole Ø4.5
Retaining Pins Double Loop for Hole Ø4.5

P1243.045-D-ZP

For hole dia. d1
4.5
Type
Double
d2 range
17-24
d4
24.7
l1
80
l2
43.8
Wire dia. d3
4.0
Material
Steel
£ 0.69 per unit (click for quantity discounts)
P1243.055-D-ZP Retaining pins double loop Ø5.5 Steel
Retaining pins double loop Ø5.5 Steel

P1243.055-D-ZP

For hole dia. d1
5.5
Type
Double
d2 range
18-30
d4
26.1
l1
98
l2
53.4
Wire dia. d3
5.0
Material
Steel
£ 1.14 per unit (click for quantity discounts)
P1243.065-D-ZP Retaining pins double loop Ø6.5 Steel
Retaining pins double loop Ø6.5 Steel

P1243.065-D-ZP

For hole dia. d1
6.5
Type
Double
d2 range
24-36
d4
28.9
l1
120
l2
72.5
Wire dia. d3
6.0
Material
Steel
£ 1.72 per unit (click for quantity discounts)
P1243.080-D-ZP Retaining Pins Double Loop for Hole Ø8 Z
Retaining Pins Double Loop for Hole Ø8 Z

P1243.080-D-ZP

For hole dia. d1
8.0
Type
Double
d2 range
26-40
d4
-
l1
148
l2
-
Wire dia. d3
7.0
Material
Steel
£ 3.10 per unit (click for quantity discounts)
P1243.090-D-ZP Retaining Pins Double Loop for Hole Ø9 Z
Retaining Pins Double Loop for Hole Ø9 Z

P1243.090-D-ZP

For hole dia. d1
9.0
Type
Double
d2 range
24-40
d4
-
l1
149
l2
-
Wire dia. d3
8.0
Material
Steel
£ 3.10 per unit (click for quantity discounts)
P1243.025-D-A2 Retaining pins double loop Ø2.5 A2 s/s
Retaining pins double loop Ø2.5 A2 s/s

P1243.025-D-A2

For hole dia. d1
2.5
Type
Double
d2 range
9-11
d4
20.0
l1
48
l2
24.0
Wire dia. d3
2.25
Material
A2 s/s
£ 0.61 per unit (click for quantity discounts)
P1243.032-D-A2 Retaining Pins Double Loop for Hole Ø3.2
Retaining Pins Double Loop for Hole Ø3.2

P1243.032-D-A2

For hole dia. d1
3.2
Type
Double
d2 range
11-14
d4
20.0
l1
48
l2
26.0
Wire dia. d3
2.8
Material
A2 s/s
£ 0.96 per unit (click for quantity discounts)
P1243.040-D-A2 Retaining Pins Double Loop for Hole Ø4 A
Retaining Pins Double Loop for Hole Ø4 A

P1243.040-D-A2

For hole dia. d1
4.0
Type
Double
d2 range
14-20
d4
20.0
l1
64
l2
32.0
Wire dia. d3
3.6
Material
A2 s/s
£ 1.05 per unit (click for quantity discounts)
P1243.050-D-A2 Retaining Pins Double Loop for Hole Ø5 A
Retaining Pins Double Loop for Hole Ø5 A

P1243.050-D-A2

For hole dia. d1
5.0
Type
Double
d2 range
20-26
d4
25.0
l1
80
l2
39.0
Wire dia. d3
4.5
Material
A2 s/s
£ 1.29 per unit (click for quantity discounts)
P1243.063-D-A2 Retaining Pins Double Loop for Hole Ø6.3
Retaining Pins Double Loop for Hole Ø6.3

P1243.063-D-A2

For hole dia. d1
6.3
Type
Double
d2 range
26-34
d4
25.0
l1
97
l2
45.0
Wire dia. d3
5.6
Material
A2 s/s
£ 2.34 per unit (click for quantity discounts)
P1243.070-D-A2 Retaining Pins Double Loop for Hole Ø7 A
Retaining Pins Double Loop for Hole Ø7 A

P1243.070-D-A2

For hole dia. d1
7.0
Type
Double
d2 range
34-35
d4
30.0
l1
125
l2
56.0
Wire dia. d3
6.3
Material
A2 s/s
£ 6.12 per unit (click for quantity discounts)
P1243.080-D-A2 Retaining Pins Double Loop for Hole Ø8 A
Retaining Pins Double Loop for Hole Ø8 A

P1243.080-D-A2

For hole dia. d1
8.0
Type
Double
d2 range
45-56
d4
30.0
l1
150
l2
63.0
Wire dia. d3
7.0
Material
A2 s/s
£ 5.21 per unit (click for quantity discounts)
P1243.025-D-A4 Retaining Pins (R Clips)
Retaining Pins (R Clips)

P1243.025-D-A4

For hole dia. d1
2.5
Type
Double
d2 range
9-11
d4
20.0
l1
42
l2
24.0
Wire dia. d3
2.25
Material
A4 s/s
P1243.032-D-A4 Retaining Pins (R Clips)
Retaining Pins (R Clips)

P1243.032-D-A4

For hole dia. d1
3.2
Type
Double
d2 range
11-14
d4
20.0
l1
48
l2
26.0
Wire dia. d3
2.8
Material
A4 s/s
P1243.040-D-A4 Retaining pins double loop Ø4 A4 s/s MOQ = 100 pieces
Retaining pins double loop Ø4 A4 s/s MOQ = 100 pieces

P1243.040-D-A4

For hole dia. d1
4.0
Type
Double
d2 range
14-20
d4
20.0
l1
64
l2
32.0
Wire dia. d3
3.6
Material
A4 s/s
£ 1.69 per unit (click for quantity discounts)
P1243.050-D-A4 Retaining pins double loop Ø5 A4 s/s MOQ = 100 pieces
Retaining pins double loop Ø5 A4 s/s MOQ = 100 pieces

P1243.050-D-A4

For hole dia. d1
5.0
Type
Double
d2 range
20-26
d4
25.0
l1
80
l2
39.0
Wire dia. d3
4.5
Material
A4 s/s
£ 1.93 per unit (click for quantity discounts)
P1243.063-D-A4 Retaining Pins (R Clips)
Retaining Pins (R Clips)

P1243.063-D-A4

For hole dia. d1
6.3
Type
Double
d2 range
26-34
d4
25.0
l1
97
l2
45.0
Wire dia. d3
5.6
Material
A4 s/s
P1243.070-D-A4 Retaining pin double loop Ø7 DIN11024 A4
Retaining pin double loop Ø7 DIN11024 A4

P1243.070-D-A4

For hole dia. d1
7.0
Type
Double
d2 range
34-45
d4
30.0
l1
125
l2
56.0
Wire dia. d3
6.3
Material
A4 s/s
£ 4.59 per unit (click for quantity discounts)
P1243.080-D-A4 Retaining pins double loop Ø8 A4 s/s
Retaining pins double loop Ø8 A4 s/s

P1243.080-D-A4

For hole dia. d1
8.0
Type
Double
d2 range
45-56
d4
30.0
l1
150
l2
63.0
Wire dia. d3
7.0
Material
A4 s/s
£ 14.77 per unit (click for quantity discounts)
P1243.015-S-ZP Retaining Pins Single Loop for Hole Ø1.5
Retaining Pins Single Loop for Hole Ø1.5

P1243.015-S-ZP

For hole dia. d1
1.5
Type
Single
d2 range
5-8
d4
-
l1
22
l2
-
Wire dia. d3
1.2
Material
Steel
£ 0.14 per unit (click for quantity discounts)
P1243.020-S-ZP Retaining Pins Single Loop for Hole Ø2 Z
Retaining Pins Single Loop for Hole Ø2 Z

P1243.020-S-ZP

For hole dia. d1
2.0
Type
Single
d2 range
6-10
d4
8.5
l1
25
l2
14.4
Wire dia. d3
1.6
Material
Steel
£ 0.18 per unit (click for quantity discounts)
P1243.022-S-ZP Retaining Pins Single Loop for Hole Ø2.2
Retaining Pins Single Loop for Hole Ø2.2

P1243.022-S-ZP

For hole dia. d1
2.2
Type
Single
d2 range
8-13
d4
8.8
l1
36
l2
15.8
Wire dia. d3
1.8
Material
Steel
£ 0.18 per unit (click for quantity discounts)
P1243.025-S-ZP Retaining Pins Single Loop for Hole Ø2.5
Retaining Pins Single Loop for Hole Ø2.5

P1243.025-S-ZP

For hole dia. d1
2.5
Type
Single
d2 range
9-14
d4
10.2
l1
56
l2
25.6
Wire dia. d3
2.0
Material
Steel
£ 0.20 per unit (click for quantity discounts)
P1243.035-S-ZP Retaining Pins Single Loop for Hole Ø3.5
Retaining Pins Single Loop for Hole Ø3.5

P1243.035-S-ZP

For hole dia. d1
3.5
Type
Single
d2 range
10-20
d4
18.5
l1
72
l2
30.0
Wire dia. d3
3.0
Material
Steel
£ 0.20 per unit (click for quantity discounts)
P1243.045-S-ZP Retaining Pins Single Loop for Hole Ø4.5
Retaining Pins Single Loop for Hole Ø4.5

P1243.045-S-ZP

For hole dia. d1
4.0
Type
Single
d2 range
16-25
d4
20.7
l1
60
l2
33.4
Wire dia. d3
4.0
Material
Steel
£ 0.24 per unit (click for quantity discounts)
P1243.060-S-ZP Retaining Pins Single Loop for Hole Ø6 Z
Retaining Pins Single Loop for Hole Ø6 Z

P1243.060-S-ZP

For hole dia. d1
6.0
Type
Single
d2 range
20-28
d4
25.0
l1
102
l2
43.0
Wire dia. d3
5.0
Material
Steel
£ 0.32 per unit (click for quantity discounts)
P1243.070-S-ZP Retaining Pins Single Loop for Hole Ø7 Z
Retaining Pins Single Loop for Hole Ø7 Z

P1243.070-S-ZP

For hole dia. d1
7.0
Type
Single
d2 range
28-40
d4
-
l1
124
l2
-
Wire dia. d3
6.0
Material
Steel
£ 0.46 per unit (click for quantity discounts)
P1243.080-S-ZP Retaining Pins Single Loop for Hole Ø8 Z
Retaining Pins Single Loop for Hole Ø8 Z

P1243.080-S-ZP

For hole dia. d1
8.0
Type
Single
d2 range
28-45
d4
28.9
l1
110
l2
59.0
Wire dia. d3
7.0
Material
Steel
£ 0.55 per unit (click for quantity discounts)
P1243.090-S-ZP Retaining Pins Single Loop for Hole Ø9 Z
Retaining Pins Single Loop for Hole Ø9 Z

P1243.090-S-ZP

For hole dia. d1
9.0
Type
Single
d2 range
30-45
d4
-
l1
128
l2
-
Wire dia. d3
8.0
Material
Steel
P1243.020-S-A2 Retaining Pins Single Loop for Hole Ø2 A
Retaining Pins Single Loop for Hole Ø2 A

P1243.020-S-A2

For hole dia. d1
2.5
Type
Single
d2 range
8-7
d4
10.0
l1
40
l2
25.0
Wire dia. d3
2.0
Material
A2 s/s
£ 0.23 per unit (click for quantity discounts)
P1243.025-S-A2 Retaining Pins Single Loop for Hole Ø2.5
Retaining Pins Single Loop for Hole Ø2.5

P1243.025-S-A2

For hole dia. d1
3.0
Type
Single
d2 range
10-16
d4
11.0
l1
46
l2
24.0
Wire dia. d3
2.5
Material
A2 s/s
£ 0.28 per unit (click for quantity discounts)
P1243.030-S-A2 Retaining Pins Single Loop for Hole Ø3 A
Retaining Pins Single Loop for Hole Ø3 A

P1243.030-S-A2

For hole dia. d1
3.5
Type
Single
d2 range
16-18
d4
16.0
l1
60
l2
34.0
Wire dia. d3
3.0
Material
A2 s/s
£ 0.45 per unit (click for quantity discounts)
P1243.045-S-A2 Retaining Pins Single Loop for Hole Ø4.5
Retaining Pins Single Loop for Hole Ø4.5

P1243.045-S-A2

For hole dia. d1
4.5
Type
Single
d2 range
18-20
d4
19.0
l1
64
l2
36.0
Wire dia. d3
4.0
Material
A2 s/s
£ 0.97 per unit (click for quantity discounts)
P1243.050-S-A2 Retaining Pins Single Loop for Hole Ø5 A
Retaining Pins Single Loop for Hole Ø5 A

P1243.050-S-A2

For hole dia. d1
6.0
Type
Single
d2 range
20-28
d4
26.0
l1
82
l2
45.0
Wire dia. d3
5.0
Material
A2 s/s
£ 1.10 per unit (click for quantity discounts)
P1243.060-S-A2 Retaining Pins Single Loop for Hole Ø6 A
Retaining Pins Single Loop for Hole Ø6 A

P1243.060-S-A2

For hole dia. d1
7.0
Type
Single
d2 range
28-40
d4
30.0
l1
110
l2
60.0
Wire dia. d3
6.0
Material
A2 s/s
£ 2.27 per unit (click for quantity discounts)
P1243.020-S-A4 Retaining pins single loop Ø2 A4 s/s
Retaining pins single loop Ø2 A4 s/s

P1243.020-S-A4

For hole dia. d1
2.5
Type
Single
d2 range
8-7
d4
10.0
l1
40
l2
25.0
Wire dia. d3
2.0
Material
A4 s/s
P1243.025-S-A4 Retaining pins single loop Ø2 A4 s/s
Retaining pins single loop Ø2 A4 s/s

P1243.025-S-A4

For hole dia. d1
3.0
Type
Single
d2 range
10-16
d4
11.0
l1
46
l2
24.0
Wire dia. d3
2.5
Material
A4 s/s
£ 187.10 per 100 units (click for quantity discounts)
P1243.030-S-A4 Retaining pins single loop Ø3 A4 s/s
Retaining pins single loop Ø3 A4 s/s

P1243.030-S-A4

For hole dia. d1
3.5
Type
Single
d2 range
16-18
d4
16.0
l1
60
l2
34.0
Wire dia. d3
3.0
Material
A4 s/s
£ 0.89 per unit (click for quantity discounts)
P1243.045-S-A4 Retaining Pins Single Loop for Hole Ø4.5 OVERALL LENGTH 90mm
Retaining Pins Single Loop for Hole Ø4.5 OVERALL LENGTH 90mm

P1243.045-S-A4

For hole dia. d1
4.5
Type
Single
d2 range
18-20
d4
19.0
l1
64
l2
36.0
Wire dia. d3
4.0
Material
A4 s/s
£ 0.93 per unit (click for quantity discounts)
P1243.050-S-A4 Retaining pins single loop Ø5 A4 s/s
Retaining pins single loop Ø5 A4 s/s

P1243.050-S-A4

For hole dia. d1
6.0
Type
Single
d2 range
20-28
d4
26.0
l1
82
l2
45.0
Wire dia. d3
5.0
Material
A4 s/s
£ 349.00 per 100 units (click for quantity discounts)
P1243.060-S-A4 Retaining pins single loop Ø6 A4 s/s
Retaining pins single loop Ø6 A4 s/s

P1243.060-S-A4

For hole dia. d1
7.0
Type
Single
d2 range
28-40
d4
30.0
l1
110
l2
60.0
Wire dia. d3
6.0
Material
A4 s/s
£ 392.00 per 100 units (click for quantity discounts)
P1243.025-D-ZP Retaining Pins Double Loop for Hole Ø2.5
Retaining Pins Double Loop for Hole Ø2.5

P1243.025-D-ZP

For hole dia. d1
2.5
Type
Double
d2 range
8-14
d4
10.3
l1
52
l2
26.3
Wire dia. d3
2.0
Material
Steel
£ 0.31 per unit (click for quantity discounts)
P1243.035-D-ZP Retaining Pins Double Loop for Hole Ø3.5
Retaining Pins Double Loop for Hole Ø3.5

P1243.035-D-ZP

For hole dia. d1
3.5
Type
Double
d2 range
14-20
d4
16.0
l1
72
l2
36.4
Wire dia. d3
3.0
Material
Steel
£ 0.44 per unit (click for quantity discounts)
P1243.045-D-ZP Retaining Pins Double Loop for Hole Ø4.5
Retaining Pins Double Loop for Hole Ø4.5

P1243.045-D-ZP

For hole dia. d1
4.5
Type
Double
d2 range
17-24
d4
24.7
l1
80
l2
43.8
Wire dia. d3
4.0
Material
Steel
£ 0.69 per unit (click for quantity discounts)
P1243.055-D-ZP Retaining pins double loop Ø5.5 Steel
Retaining pins double loop Ø5.5 Steel

P1243.055-D-ZP

For hole dia. d1
5.5
Type
Double
d2 range
18-30
d4
26.1
l1
98
l2
53.4
Wire dia. d3
5.0
Material
Steel
£ 1.14 per unit (click for quantity discounts)
P1243.065-D-ZP Retaining pins double loop Ø6.5 Steel
Retaining pins double loop Ø6.5 Steel

P1243.065-D-ZP

For hole dia. d1
6.5
Type
Double
d2 range
24-36
d4
28.9
l1
120
l2
72.5
Wire dia. d3
6.0
Material
Steel
£ 1.72 per unit (click for quantity discounts)
P1243.080-D-ZP Retaining Pins Double Loop for Hole Ø8 Z
Retaining Pins Double Loop for Hole Ø8 Z

P1243.080-D-ZP

For hole dia. d1
8.0
Type
Double
d2 range
26-40
d4
-
l1
148
l2
-
Wire dia. d3
7.0
Material
Steel
£ 3.10 per unit (click for quantity discounts)
P1243.090-D-ZP Retaining Pins Double Loop for Hole Ø9 Z
Retaining Pins Double Loop for Hole Ø9 Z

P1243.090-D-ZP

For hole dia. d1
9.0
Type
Double
d2 range
24-40
d4
-
l1
149
l2
-
Wire dia. d3
8.0
Material
Steel
£ 3.10 per unit (click for quantity discounts)
P1243.025-D-A2 Retaining pins double loop Ø2.5 A2 s/s
Retaining pins double loop Ø2.5 A2 s/s

P1243.025-D-A2

For hole dia. d1
2.5
Type
Double
d2 range
9-11
d4
20.0
l1
48
l2
24.0
Wire dia. d3
2.25
Material
A2 s/s
£ 0.61 per unit (click for quantity discounts)
P1243.032-D-A2 Retaining Pins Double Loop for Hole Ø3.2
Retaining Pins Double Loop for Hole Ø3.2

P1243.032-D-A2

For hole dia. d1
3.2
Type
Double
d2 range
11-14
d4
20.0
l1
48
l2
26.0
Wire dia. d3
2.8
Material
A2 s/s
£ 0.96 per unit (click for quantity discounts)
P1243.040-D-A2 Retaining Pins Double Loop for Hole Ø4 A
Retaining Pins Double Loop for Hole Ø4 A

P1243.040-D-A2

For hole dia. d1
4.0
Type
Double
d2 range
14-20
d4
20.0
l1
64
l2
32.0
Wire dia. d3
3.6
Material
A2 s/s
£ 1.05 per unit (click for quantity discounts)
P1243.050-D-A2 Retaining Pins Double Loop for Hole Ø5 A
Retaining Pins Double Loop for Hole Ø5 A

P1243.050-D-A2

For hole dia. d1
5.0
Type
Double
d2 range
20-26
d4
25.0
l1
80
l2
39.0
Wire dia. d3
4.5
Material
A2 s/s
£ 1.29 per unit (click for quantity discounts)
P1243.063-D-A2 Retaining Pins Double Loop for Hole Ø6.3
Retaining Pins Double Loop for Hole Ø6.3

P1243.063-D-A2

For hole dia. d1
6.3
Type
Double
d2 range
26-34
d4
25.0
l1
97
l2
45.0
Wire dia. d3
5.6
Material
A2 s/s
£ 2.34 per unit (click for quantity discounts)
P1243.070-D-A2 Retaining Pins Double Loop for Hole Ø7 A
Retaining Pins Double Loop for Hole Ø7 A

P1243.070-D-A2

For hole dia. d1
7.0
Type
Double
d2 range
34-35
d4
30.0
l1
125
l2
56.0
Wire dia. d3
6.3
Material
A2 s/s
£ 6.12 per unit (click for quantity discounts)
P1243.080-D-A2 Retaining Pins Double Loop for Hole Ø8 A
Retaining Pins Double Loop for Hole Ø8 A

P1243.080-D-A2

For hole dia. d1
8.0
Type
Double
d2 range
45-56
d4
30.0
l1
150
l2
63.0
Wire dia. d3
7.0
Material
A2 s/s
£ 5.21 per unit (click for quantity discounts)
P1243.025-D-A4 Retaining Pins (R Clips)
Retaining Pins (R Clips)

P1243.025-D-A4

For hole dia. d1
2.5
Type
Double
d2 range
9-11
d4
20.0
l1
42
l2
24.0
Wire dia. d3
2.25
Material
A4 s/s
P1243.032-D-A4 Retaining Pins (R Clips)
Retaining Pins (R Clips)

P1243.032-D-A4

For hole dia. d1
3.2
Type
Double
d2 range
11-14
d4
20.0
l1
48
l2
26.0
Wire dia. d3
2.8
Material
A4 s/s
P1243.040-D-A4 Retaining pins double loop Ø4 A4 s/s MOQ = 100 pieces
Retaining pins double loop Ø4 A4 s/s MOQ = 100 pieces

P1243.040-D-A4

For hole dia. d1
4.0
Type
Double
d2 range
14-20
d4
20.0
l1
64
l2
32.0
Wire dia. d3
3.6
Material
A4 s/s
£ 1.69 per unit (click for quantity discounts)
P1243.050-D-A4 Retaining pins double loop Ø5 A4 s/s MOQ = 100 pieces
Retaining pins double loop Ø5 A4 s/s MOQ = 100 pieces

P1243.050-D-A4

For hole dia. d1
5.0
Type
Double
d2 range
20-26
d4
25.0
l1
80
l2
39.0
Wire dia. d3
4.5
Material
A4 s/s
£ 1.93 per unit (click for quantity discounts)
P1243.063-D-A4 Retaining Pins (R Clips)
Retaining Pins (R Clips)

P1243.063-D-A4

For hole dia. d1
6.3
Type
Double
d2 range
26-34
d4
25.0
l1
97
l2
45.0
Wire dia. d3
5.6
Material
A4 s/s
P1243.070-D-A4 Retaining pin double loop Ø7 DIN11024 A4
Retaining pin double loop Ø7 DIN11024 A4

P1243.070-D-A4

For hole dia. d1
7.0
Type
Double
d2 range
34-45
d4
30.0
l1
125
l2
56.0
Wire dia. d3
6.3
Material
A4 s/s
£ 4.59 per unit (click for quantity discounts)
P1243.080-D-A4 Retaining pins double loop Ø8 A4 s/s
Retaining pins double loop Ø8 A4 s/s

P1243.080-D-A4

For hole dia. d1
8.0
Type
Double
d2 range
45-56
d4
30.0
l1
150
l2
63.0
Wire dia. d3
7.0
Material
A4 s/s
£ 14.77 per unit (click for quantity discounts)

For hole dia. d1
Type
d2 range
d4
l1
l2
Wire dia. d3
Material
Price & AvailabilityArticleFor hole dia. d1Typed2 ranged4l1l2Wire dia. d3Material
P1243.015-S-ZP1.5Single5-8-22-1.2Steel
P1243.020-S-ZP2.0Single6-108.52514.41.6Steel
P1243.022-S-ZP2.2Single8-138.83615.81.8Steel
P1243.025-S-ZP2.5Single9-1410.25625.62.0Steel
P1243.035-S-ZP3.5Single10-2018.57230.03.0Steel
P1243.045-S-ZP4.0Single16-2520.76033.44.0Steel
P1243.060-S-ZP6.0Single20-2825.010243.05.0Steel
P1243.070-S-ZP7.0Single28-40-124-6.0Steel
P1243.080-S-ZP8.0Single28-4528.911059.07.0Steel
P1243.090-S-ZP9.0Single30-45-128-8.0Steel
P1243.020-S-A22.5Single8-710.04025.02.0A2 s/s
P1243.025-S-A23.0Single10-1611.04624.02.5A2 s/s
P1243.030-S-A23.5Single16-1816.06034.03.0A2 s/s
P1243.045-S-A24.5Single18-2019.06436.04.0A2 s/s
P1243.050-S-A26.0Single20-2826.08245.05.0A2 s/s
P1243.060-S-A27.0Single28-4030.011060.06.0A2 s/s
P1243.020-S-A42.5Single8-710.04025.02.0A4 s/s
P1243.025-S-A43.0Single10-1611.04624.02.5A4 s/s
P1243.030-S-A43.5Single16-1816.06034.03.0A4 s/s
P1243.045-S-A44.5Single18-2019.06436.04.0A4 s/s
P1243.050-S-A46.0Single20-2826.08245.05.0A4 s/s
P1243.060-S-A47.0Single28-4030.011060.06.0A4 s/s
P1243.025-D-ZP2.5Double8-1410.35226.32.0Steel
P1243.035-D-ZP3.5Double14-2016.07236.43.0Steel
P1243.045-D-ZP4.5Double17-2424.78043.84.0Steel
P1243.055-D-ZP5.5Double18-3026.19853.45.0Steel
P1243.065-D-ZP6.5Double24-3628.912072.56.0Steel
P1243.080-D-ZP8.0Double26-40-148-7.0Steel
P1243.090-D-ZP9.0Double24-40-149-8.0Steel
P1243.025-D-A22.5Double9-1120.04824.02.25A2 s/s
P1243.032-D-A23.2Double11-1420.04826.02.8A2 s/s
P1243.040-D-A24.0Double14-2020.06432.03.6A2 s/s
P1243.050-D-A25.0Double20-2625.08039.04.5A2 s/s
P1243.063-D-A26.3Double26-3425.09745.05.6A2 s/s
P1243.070-D-A27.0Double34-3530.012556.06.3A2 s/s
P1243.080-D-A28.0Double45-5630.015063.07.0A2 s/s
P1243.025-D-A42.5Double9-1120.04224.02.25A4 s/s
P1243.032-D-A43.2Double11-1420.04826.02.8A4 s/s
P1243.040-D-A44.0Double14-2020.06432.03.6A4 s/s
P1243.050-D-A45.0Double20-2625.08039.04.5A4 s/s
P1243.063-D-A46.3Double26-3425.09745.05.6A4 s/s
P1243.070-D-A47.0Double34-4530.012556.06.3A4 s/s
P1243.080-D-A48.0Double45-5630.015063.07.0A4 s/s

Technical & Application

Material

Spring steel (zinc-plated) or stainless steel (A2, AISI 303 or A4, AISI 316).

Technical Notes

To DIN 11024.
Single coils and double coils (for more demanding applications).

Product Datasheets

P1243 Retaining Pins (R Clips)January 3, 2025, 3:29 PM / 81.65 kB
Cotter & Clevis PinsJanuary 3, 2025, 3:14 PM / 277.53 kB
Other PinsJanuary 3, 2025, 3:14 PM / 777.26 kB
Pins & SpacersJanuary 3, 2025, 3:14 PM / 1.91 MB
Mechanical ComponentsJanuary 3, 2025, 3:16 PM / 42.45 MB

CAD files

P1243 AcisAugust 4, 2018, 11:36 AM / 1.07 MB
P1243 IGESAugust 4, 2018, 11:36 AM / 1.24 MB
P1243 ParasolidAugust 4, 2018, 11:36 AM / 575.71 kB
P1243 ProEAugust 4, 2018, 11:36 AM / 6.89 MB
P1243 SolidWorksAugust 4, 2018, 11:36 AM / 21.03 MB
P1243 StepAugust 4, 2018, 11:36 AM / 1.01 MB

This content is not visible because of your cookie settings.


Contact
Automotion Components
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
sales@automotioncomponents.co.uk
Route via Google Maps

Company registration no: 00496138
Company VAT number GB 408154022

Information
FAQNewsTechnical ReferenceComponents In Motion
Follow us
© 2025 Automotion Components
Contact
Automotion Components

Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4498
