A-V Gel Bushes
Silcone gel
P2071 Anti-vibration Bushes
silicone gel, two-piece, material: Silicone gel
Alternative products you may wish to consider

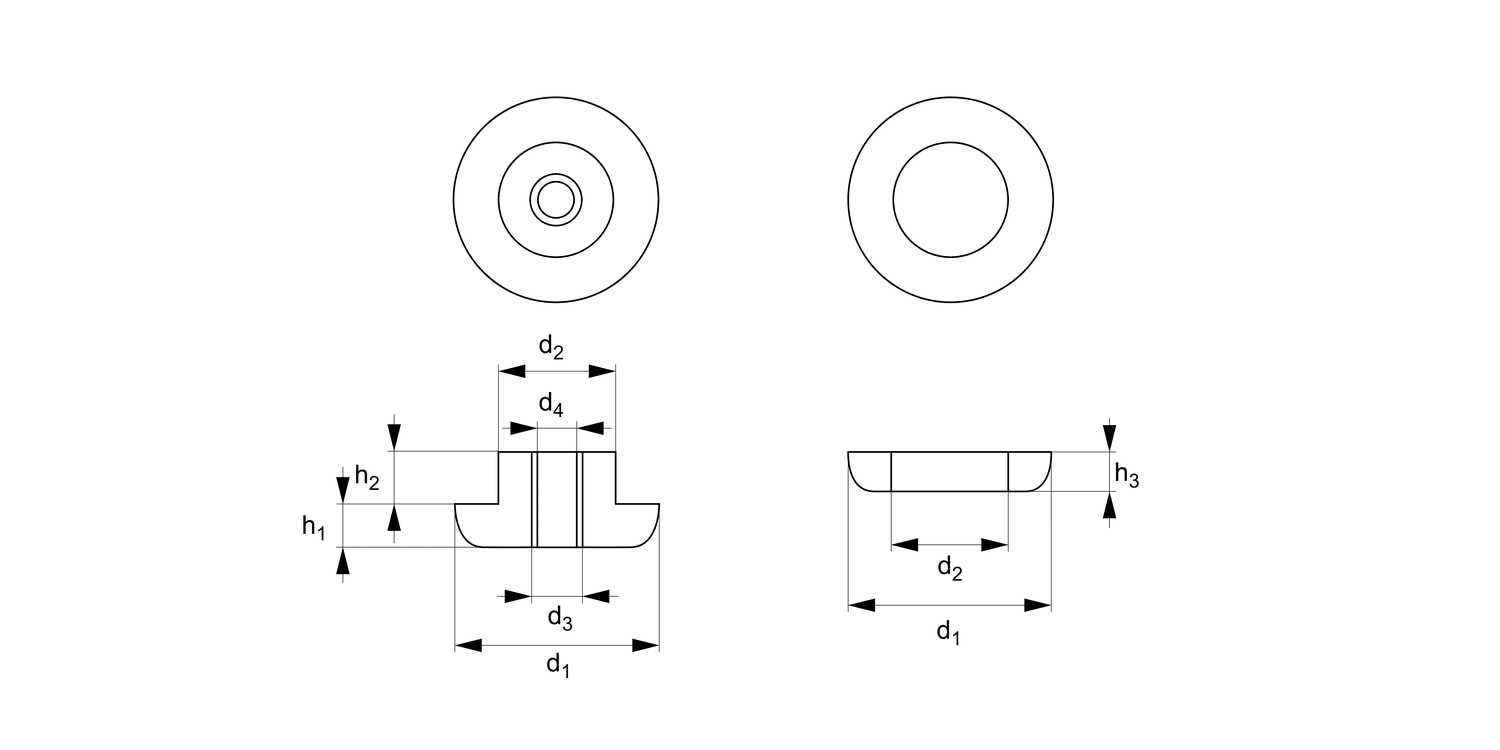

d1
11
h1
3
d2
7
d3
4
d4
3
h2
3.5
h3
3
Resonance point
Hz
64~42
Resonance magnification
dB
7~9
Recommended frequency
Hz
0,2kg: 90~
0,75kg : 60~
Optimum working load
kgf
0,05-0,1875
£ 10.40 per unit (click for quantity discounts)
d1
14
h1
4
d2
9
d3
5
d4
3
h2
4
h3
4
Resonance point
Hz
67~35
Resonance magnification
dB
9~10
Recommended frequency
Hz
0,5kg: 95~
2,5kg : 50~
Optimum working load
kgf
0,125-0,625
£ 10.02 per unit (click for quantity discounts)
d1
25
h1
5
d2
14
d3
6
d4
4
h2
6.5
h3
5
Resonance point
Hz
49~23
Resonance magnification
dB
15~17
Recommended frequency
Hz
4kg: 70~
15kg : 35~
Optimum working load
kgf
1-3,75
£ 8.37 per unit (click for quantity discounts)
d1
14
h1
4
d2
9
d3
5
d4
4
h2
4
h3
4
Resonance point
Hz
49~37
Resonance magnification
dB
15~16
Recommended frequency
Hz
2,5kg: 70~
4,0kg : 55~
Optimum working load
kgf
0,625-1,0
£ 10.05 per unit (click for quantity discounts)
d1
25
h1
5
d2
14
d3
6
d4
4
h2
6.5
h3
5
Resonance point
Hz
38~20
Resonance magnification
dB
19~23
Recommended frequency
Hz
15kg : 40~
32kg : 25~
Optimum working load
kgf
3,75-8
£ 10.05 per unit (click for quantity discounts)
d1
h1
d2
d3
d4
h2
h3
Resonance point
Hz
Resonance magnification
dB
Recommended frequency
Hz
Optimum working load
kgf
| Price & Availability | Article | d1 | h1 | d2 | d3 | d4 | h2 | h3 | Resonance point Hz | Resonance magnification dB | Recommended frequency Hz | Optimum working load kgf | ||||||||||||||||||
| P2071.01-11 | 11 | 3 | 7 | 4 | 3 | 3.5 | 3 | 64~42 | 7~9 | 0,2kg: 90~ 0,75kg : 60~ | 0,05-0,1875 | |||||||||||||||||||
£ 10.40 per unit (click for quantity discounts) Ready to despatch 57 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 11 h1 3 d2 7 d3 4 d4 3 h2 3.5 h3 3 Resonance point
Hz 64~42 Resonance magnification
dB 7~9 Recommended frequency
Hz 0,2kg: 90~
0,75kg : 60~ Optimum working load
kgf 0,05-0,1875 | ||||||||||||||||||||||||||||||
| P2071.01-14 | 14 | 4 | 9 | 5 | 3 | 4 | 4 | 67~35 | 9~10 | 0,5kg: 95~ 2,5kg : 50~ | 0,125-0,625 | |||||||||||||||||||
£ 10.02 per unit (click for quantity discounts) Ready to despatch 152 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 14 h1 4 d2 9 d3 5 d4 3 h2 4 h3 4 Resonance point
Hz 67~35 Resonance magnification
dB 9~10 Recommended frequency
Hz 0,5kg: 95~
2,5kg : 50~ Optimum working load
kgf 0,125-0,625 | ||||||||||||||||||||||||||||||
| P2071.01-25 | 25 | 5 | 14 | 6 | 4 | 6.5 | 5 | 49~23 | 15~17 | 4kg: 70~ 15kg : 35~ | 1-3,75 | |||||||||||||||||||
£ 8.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 25 h1 5 d2 14 d3 6 d4 4 h2 6.5 h3 5 Resonance point
Hz 49~23 Resonance magnification
dB 15~17 Recommended frequency
Hz 4kg: 70~
15kg : 35~ Optimum working load
kgf 1-3,75 | ||||||||||||||||||||||||||||||
| P2071.02-14 | 14 | 4 | 9 | 5 | 4 | 4 | 4 | 49~37 | 15~16 | 2,5kg: 70~ 4,0kg : 55~ | 0,625-1,0 | |||||||||||||||||||
£ 10.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 14 h1 4 d2 9 d3 5 d4 4 h2 4 h3 4 Resonance point
Hz 49~37 Resonance magnification
dB 15~16 Recommended frequency
Hz 2,5kg: 70~
4,0kg : 55~ Optimum working load
kgf 0,625-1,0 | ||||||||||||||||||||||||||||||
| P2071.02-25 | 25 | 5 | 14 | 6 | 4 | 6.5 | 5 | 38~20 | 19~23 | 15kg : 40~ 32kg : 25~ | 3,75-8 | |||||||||||||||||||
£ 10.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 25 h1 5 d2 14 d3 6 d4 4 h2 6.5 h3 5 Resonance point
Hz 38~20 Resonance magnification
dB 19~23 Recommended frequency
Hz 15kg : 40~
32kg : 25~ Optimum working load
kgf 3,75-8 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Silicone gel.
Technical Notes
This anti-vibration bush is ideal for applications with very light loads, such as PCBs and computer components. This range is handmade and has a unique molecular structure that spreads the impact three dimensionally. This gives it outstanding vibration and shock absorbing properties. It is able to dampen to lower frequencies than bushes made of neoprene or rubber. These effective qualities are reflected in the cost. For a lower cost alternative please see part number P2072.
Important Notes
The double washer mounts are made of two parts of gel, one of which incorporates an internal metal bush which acts as a guide.
