Anti - Stiction Air Cylinder
Graphite

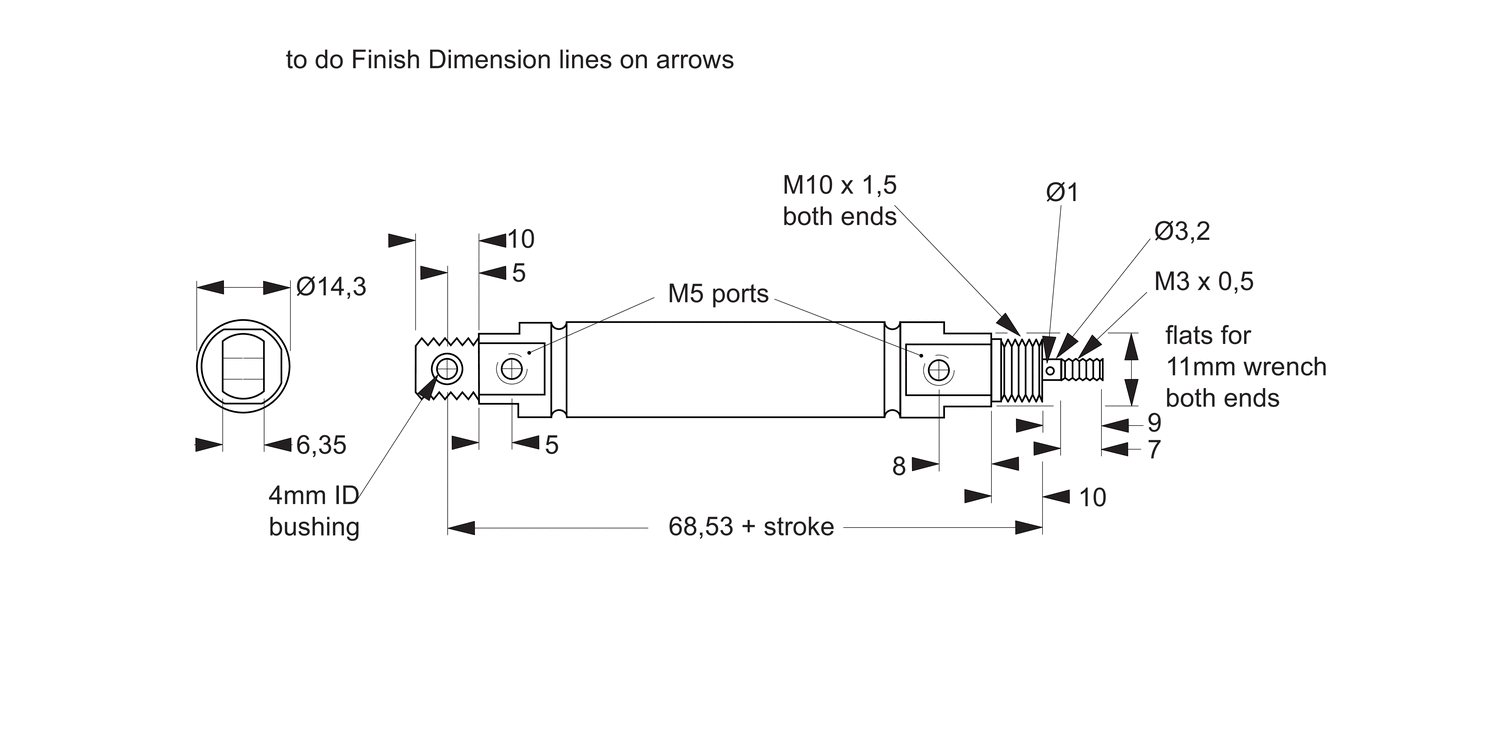

L4500 Anti - Stiction Air Cylinder - 9.3mm Bore
universal mounts, material: Stainless steel
Order No.
L4500.100
Bore dia.
9.3
Stroke
100.0
Length
168.53
Pressure
max.
MPa
0.7
Leak rate by piston SL/min
max.
1.16
Leak rate by rod SL/mm
max.
2.2
Weight
g
69.20
£ 178.91 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 178.91 | 0% |
| 5-19 | £ 161.02 | 10% |
| 20-39 | £ 143.13 | 20% |
| 40-99 | £ 125.24 | 30% |
| 100+ | £ 107.35 | 40% |
Technical & Application
Material
Carbon/graphite piston. Stainless steel rod (AISI 303). Stainless steel outer tube (AISI 304). Nickel plated aluminium cylinder heads and piston/rod coupling. Graphite filled bronze pivot bushing.
Technical Notes
Ultra low friction. Corrosion resistant, no need for lubrication.
Operating temperature range: -55ºC to +150ºC
For applications operating below -20°C please add -ET to part number>
Suitable for vacuum actuation.
Piston area = 67.7mm2
Force output at max pressure on rear side = 47.4N
Force output at max pressure on rod side = 42N
Piston friction as % of load (without side load) = 1% - 2%.
Min pressure differential required for actuation = < 0.0015 MPa
Force factor rear side = 67.7N
Force factor rod side - 60N
(factor x pressure (MPa) = force output (N))
*max leak measured at pressure of 0.34 MPa.
