Stub End Turnbuckle
stainless
R3852 Hook & Eye Turnbuckles
stainless steel, material: Stainless steel
Alternative products you may wish to consider

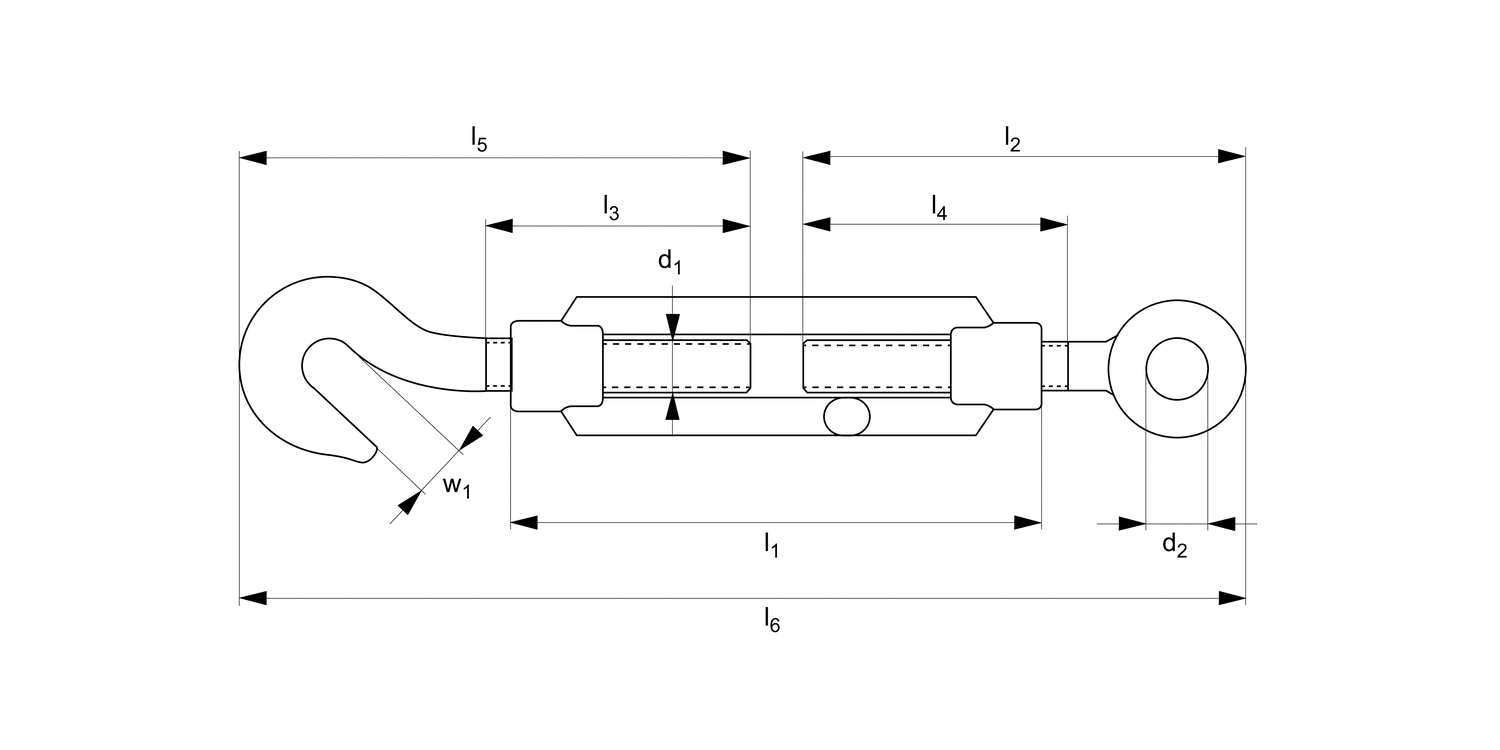

d1
M 6
d2
10
l1
110
l2
74
l3
50
l4
50
l5
77.0
l6
min.
151
w1
8.0
Weight
kg
0.09
£ 3.61 per unit (click for quantity discounts)
d1
M 8
d2
11
l1
110
l2
80
l3
52
l4
60
l5
98.0
l6
min.
178
w1
10.0
Weight
kg
0.15
£ 6.37 per unit (click for quantity discounts)
d1
M10
d2
15
l1
125
l2
95
l3
59
l4
73
l5
116.5
l6
min.
212
w1
12.5
Weight
kg
0.26
£ 9.46 per unit (click for quantity discounts)
d1
M12
d2
17
l1
125
l2
107
l3
66
l4
90
l5
146.0
l6
min.
264
w1
16.0
Weight
kg
0.40
£ 44.49 per unit (click for quantity discounts)
d1
M16
d2
22
l1
170
l2
146
l3
85
l4
100
l5
165.0
l6
min.
311
w1
16.0
Weight
kg
0.95
£ 40.30 per unit (click for quantity discounts)
d1
d2
l1
l2
l3
l4
l5
l6
min.
w1
Weight
kg
| Price & Availability | Article | d1 | d2 | l1 | l2 | l3 | l4 | l5 | l6 min. | w1 | Weight kg | |||||||||||||||||||||
| R3852.006-A4 | M 6 | 10 | 110 | 74 | 50 | 50 | 77.0 | 151 | 8.0 | 0.09 | ||||||||||||||||||||||
£ 3.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 6 d2 10 l1 110 l2 74 l3 50 l4 50 l5 77.0 l6
min. 151 w1 8.0 Weight
kg 0.09 | ||||||||||||||||||||||||||||||||
| R3852.008-A4 | M 8 | 11 | 110 | 80 | 52 | 60 | 98.0 | 178 | 10.0 | 0.15 | ||||||||||||||||||||||
£ 6.37 per unit (click for quantity discounts) Ready to despatch 48 Need more? Please call us.
d1 M 8 d2 11 l1 110 l2 80 l3 52 l4 60 l5 98.0 l6
min. 178 w1 10.0 Weight
kg 0.15 | ||||||||||||||||||||||||||||||||
| R3852.010-A4 | M10 | 15 | 125 | 95 | 59 | 73 | 116.5 | 212 | 12.5 | 0.26 | ||||||||||||||||||||||
£ 9.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M10 d2 15 l1 125 l2 95 l3 59 l4 73 l5 116.5 l6
min. 212 w1 12.5 Weight
kg 0.26 | ||||||||||||||||||||||||||||||||
| R3852.012-A4 | M12 | 17 | 125 | 107 | 66 | 90 | 146.0 | 264 | 16.0 | 0.40 | ||||||||||||||||||||||
£ 44.49 per unit (click for quantity discounts) Ready to despatch 60 Need more? Please call us.
d1 M12 d2 17 l1 125 l2 107 l3 66 l4 90 l5 146.0 l6
min. 264 w1 16.0 Weight
kg 0.40 | ||||||||||||||||||||||||||||||||
| R3852.016-A4 | M16 | 22 | 170 | 146 | 85 | 100 | 165.0 | 311 | 16.0 | 0.95 | ||||||||||||||||||||||
£ 40.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16 d2 22 l1 170 l2 146 l3 85 l4 100 l5 165.0 l6
min. 311 w1 16.0 Weight
kg 0.95 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (A4).
Technical Notes
To DIN 1480 hook & eye.
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Important Notes
Turnbuckles are not to be used for lifting.
Only suitable for use in tension.
