Stub End Turnbuckle
stainless

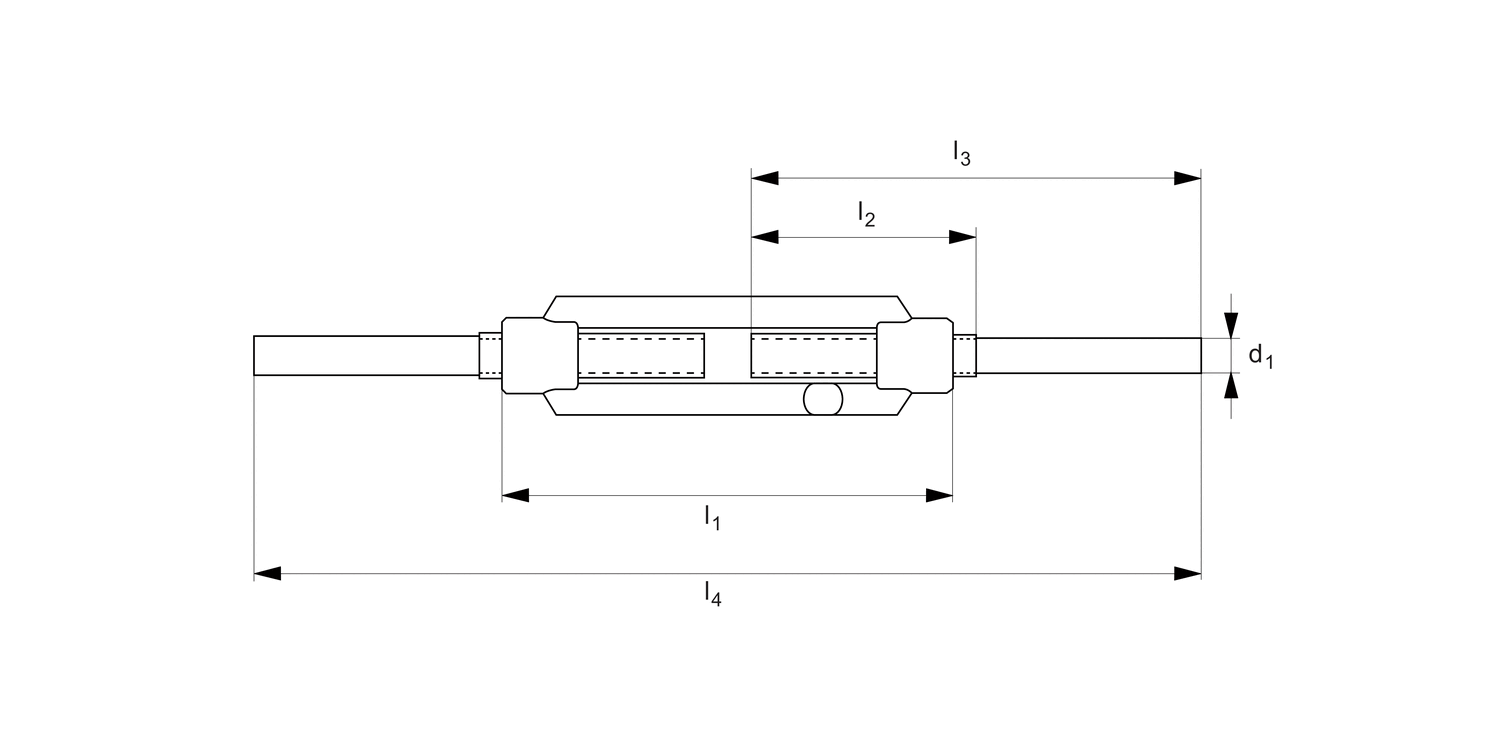

R3836 Stub End Turnbuckles
stainless steel, material: Stainless steel
Alternative products you may wish to consider
d1
M 6
l1
110
l2
60
l3
120
l4
min.
240
l4
max.
320
Weight
kg
0.10
d1
M 8
l1
110
l2
65
l3
120
l4
min.
240
l4
max.
315
Weight
kg
0.16
£ 19.27 per unit (click for quantity discounts)
d1
M10
l1
125
l2
75
l3
150
l4
min.
301
l4
max.
386
Weight
kg
0.30
£ 29.35 per unit (click for quantity discounts)
d1
M12
l1
125
l2
75
l3
150
l4
min.
301
l4
max.
381
Weight
kg
0.40
£ 32.64 per unit (click for quantity discounts)
d1
M16
l1
170
l2
100
l3
200
l4
min.
400
l4
max.
510
Weight
kg
0.96
£ 75.98 per unit (click for quantity discounts)
d1
M20
l1
200
l2
120
l3
220
l4
min.
440
l4
max.
570
Weight
kg
1.74
d1
M24
l1
255
l2
150
l3
260
l4
min.
521
l4
max.
691
Weight
kg
2.74
d1
l1
l2
l3
l4
min.
l4
max.
Weight
kg
| Price & Availability | Article | d1 | l1 | l2 | l3 | l4 min. | l4 max. | Weight kg | |||||||||||||||||||||
| R3836.006-A4 | M 6 | 110 | 60 | 120 | 240 | 320 | 0.10 | ||||||||||||||||||||||
Ready to despatch 25 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 6 l1 110 l2 60 l3 120 l4
min. 240 l4
max. 320 Weight
kg 0.10 | |||||||||||||||||||||||||||||
| R3836.008-A4 | M 8 | 110 | 65 | 120 | 240 | 315 | 0.16 | ||||||||||||||||||||||
£ 19.27 per unit (click for quantity discounts) Ready to despatch 48 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M 8 l1 110 l2 65 l3 120 l4
min. 240 l4
max. 315 Weight
kg 0.16 | |||||||||||||||||||||||||||||
| R3836.010-A4 | M10 | 125 | 75 | 150 | 301 | 386 | 0.30 | ||||||||||||||||||||||
£ 29.35 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M10 l1 125 l2 75 l3 150 l4
min. 301 l4
max. 386 Weight
kg 0.30 | |||||||||||||||||||||||||||||
| R3836.012-A4 | M12 | 125 | 75 | 150 | 301 | 381 | 0.40 | ||||||||||||||||||||||
£ 32.64 per unit (click for quantity discounts) Ready to despatch 55 Need more? Please call us.
d1 M12 l1 125 l2 75 l3 150 l4
min. 301 l4
max. 381 Weight
kg 0.40 | |||||||||||||||||||||||||||||
| R3836.016-A4 | M16 | 170 | 100 | 200 | 400 | 510 | 0.96 | ||||||||||||||||||||||
£ 75.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16 l1 170 l2 100 l3 200 l4
min. 400 l4
max. 510 Weight
kg 0.96 | |||||||||||||||||||||||||||||
| R3836.020-A4 | M20 | 200 | 120 | 220 | 440 | 570 | 1.74 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
d1 M20 l1 200 l2 120 l3 220 l4
min. 440 l4
max. 570 Weight
kg 1.74 | |||||||||||||||||||||||||||||
| R3836.024-A4 | M24 | 255 | 150 | 260 | 521 | 691 | 2.74 | ||||||||||||||||||||||
Ready to despatch 7 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M24 l1 255 l2 150 l3 260 l4
min. 521 l4
max. 691 Weight
kg 2.74 | |||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (A4).
Technical Notes
To DIN 1480 stub end.
Tips
Turnbuckles consist of a metal frame with right hand thread one end and left hand thread the other end. Used for tensioning by rotating turnbuckle body without twisting attached rope or cable.
Important Notes
Turnbuckles are not to be used for lifting.
Only suitable for use in tension.
