Positioning Stages
XY plain
L3112 Micrometer Positioning XY, XYZ Stages
side drive, medium sizes, material: Aluminium

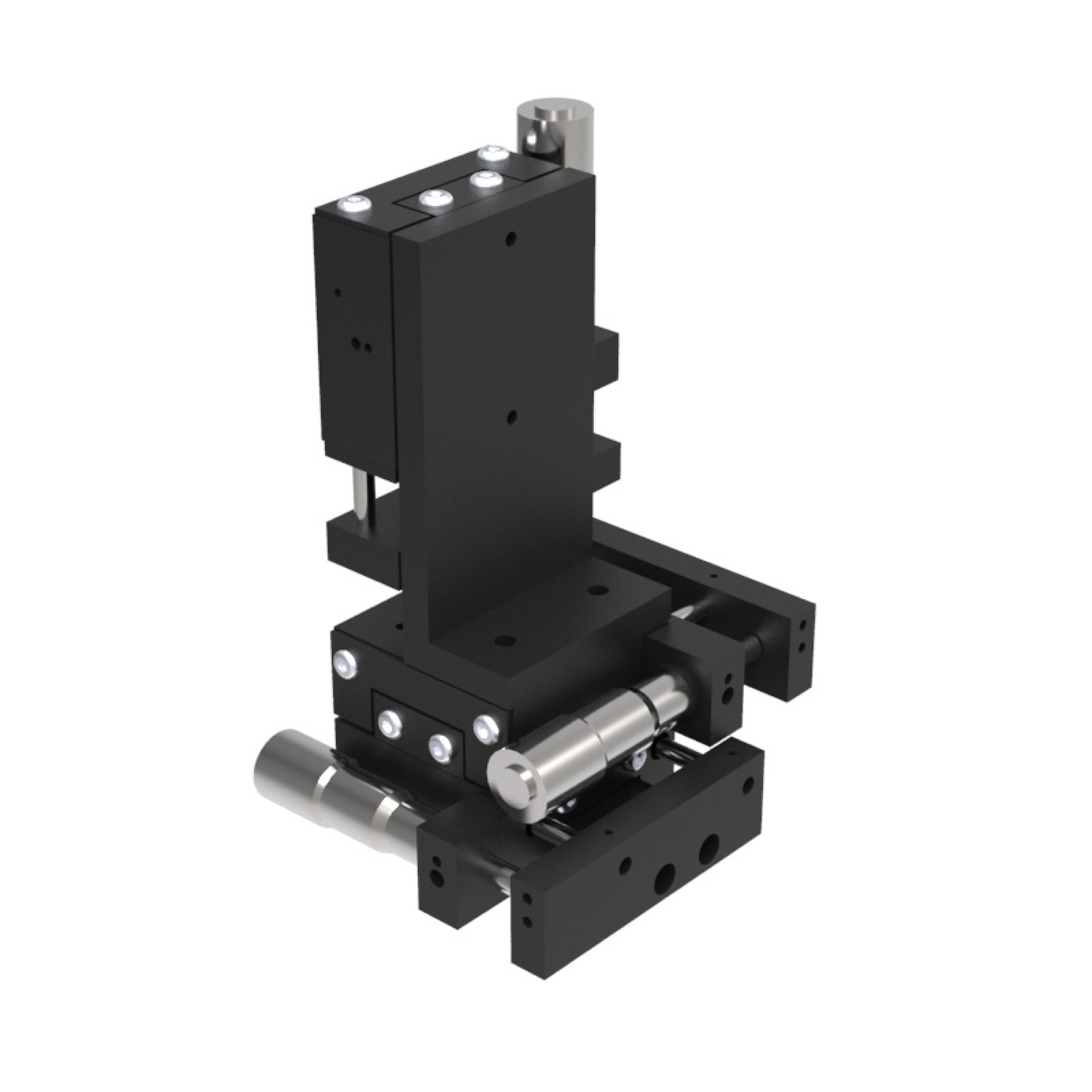

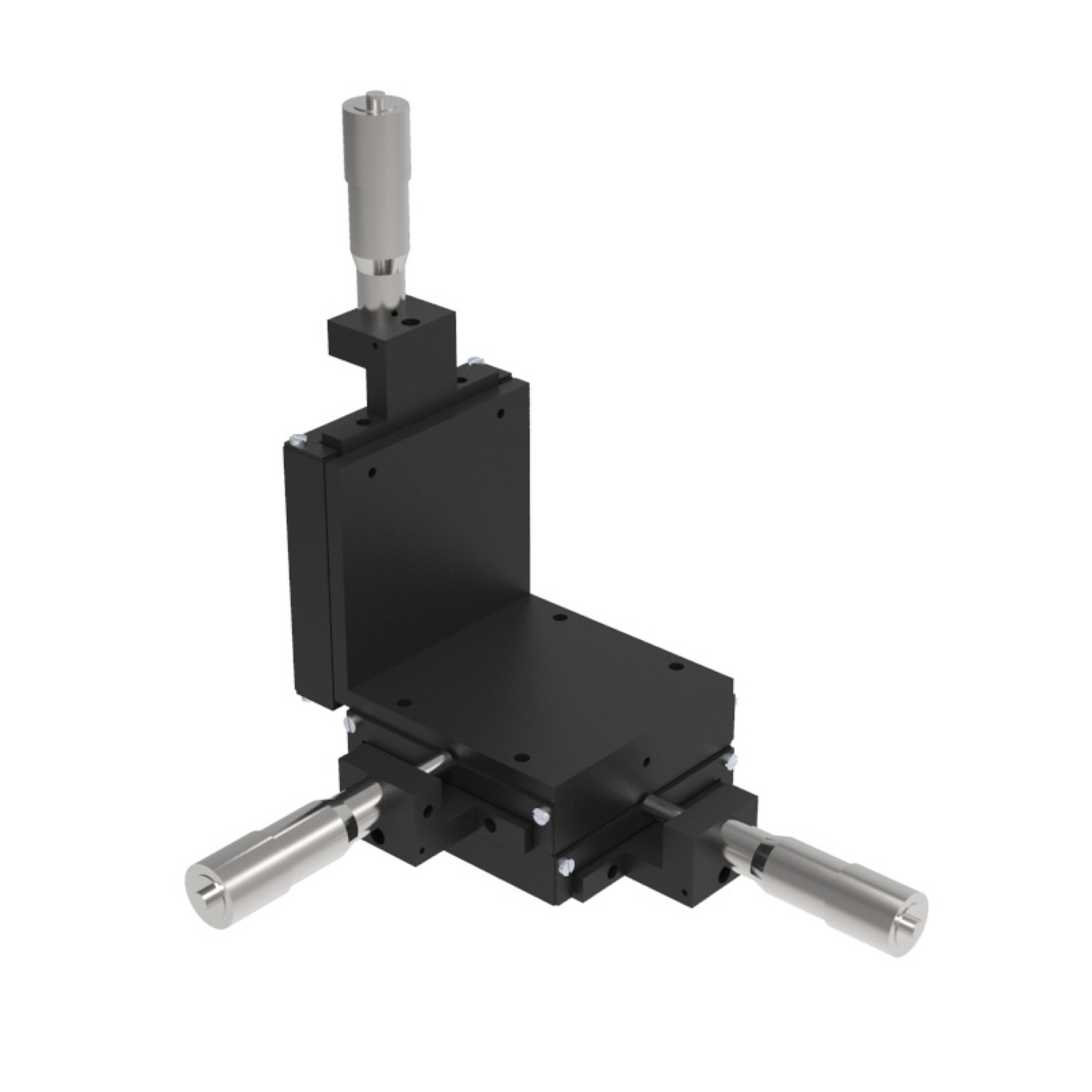

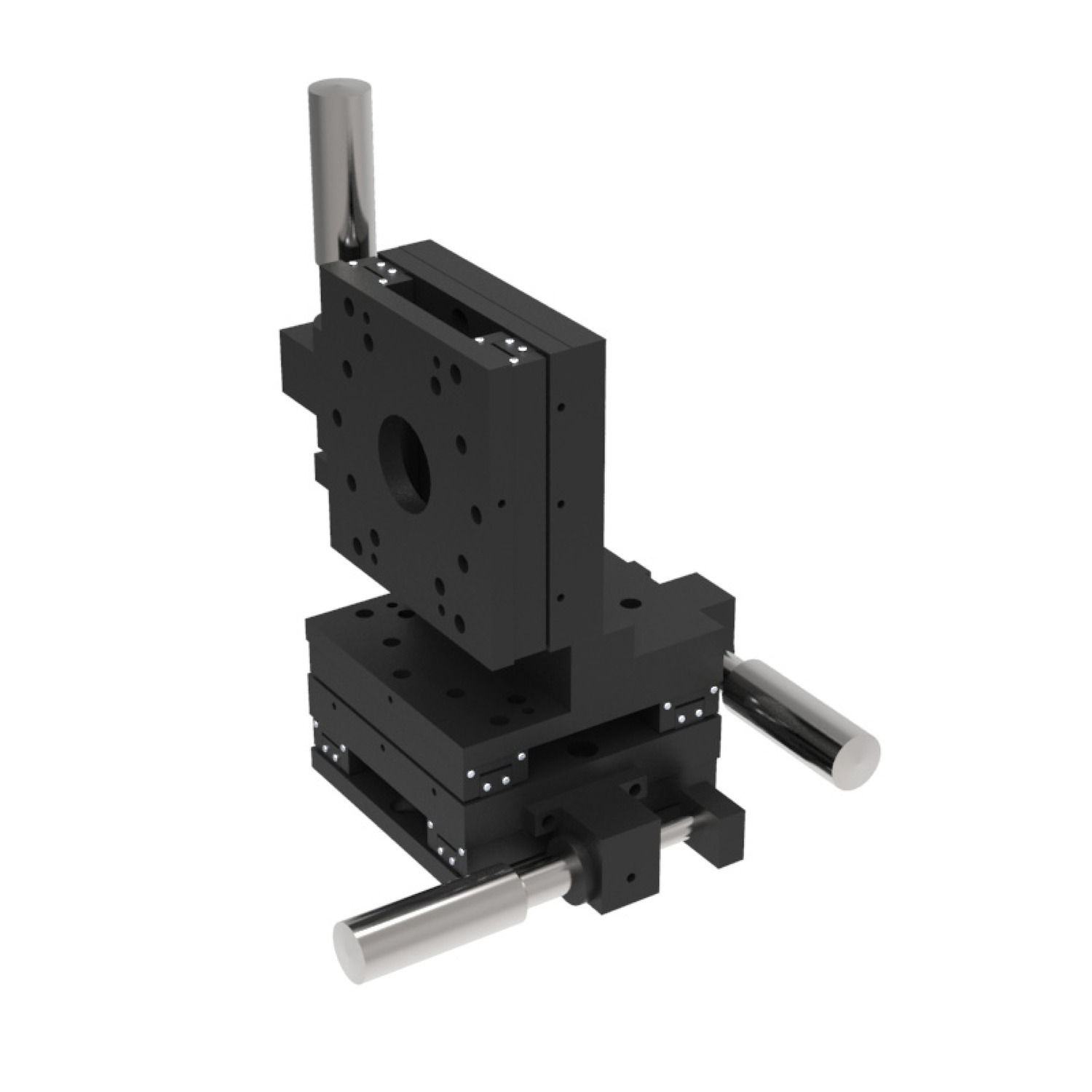

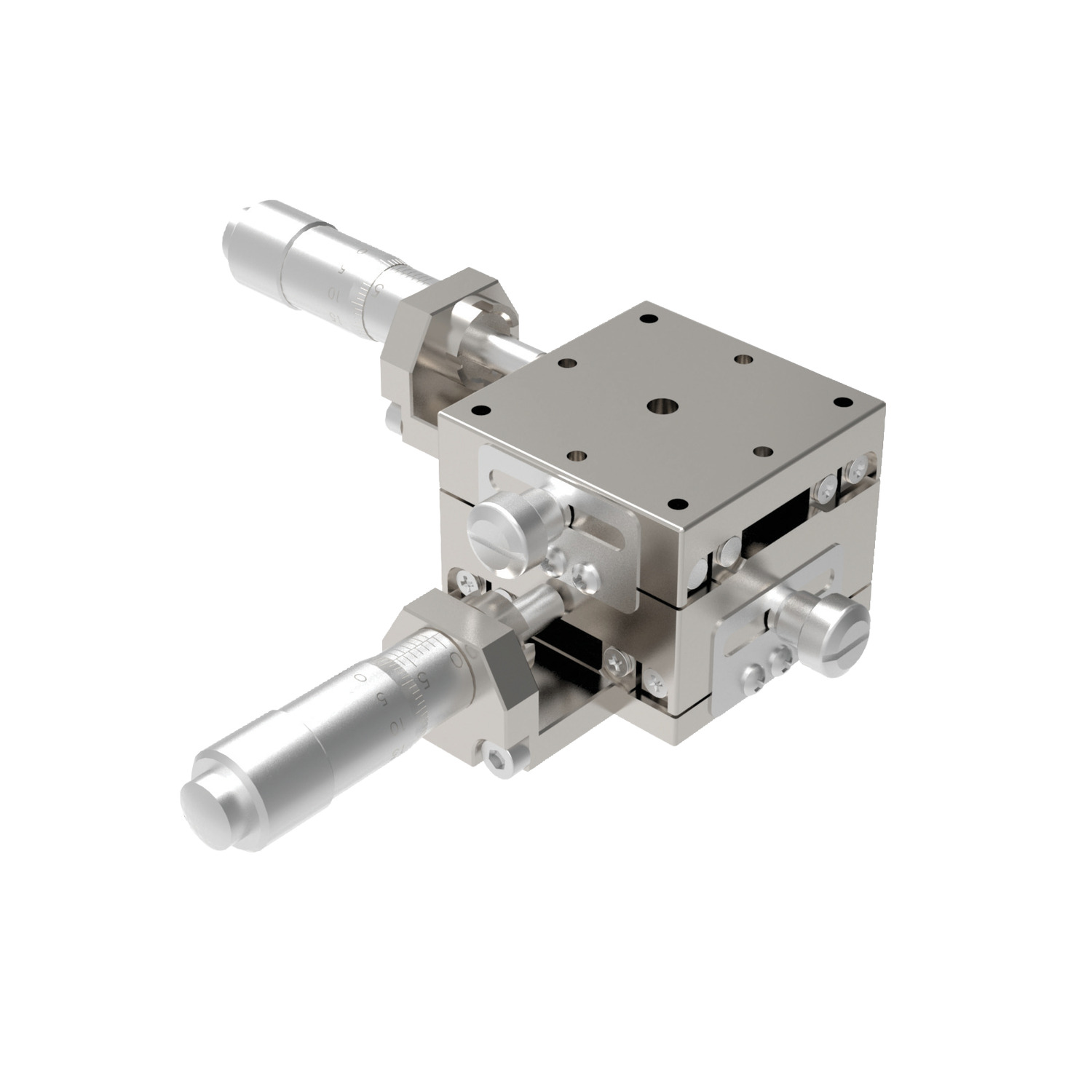

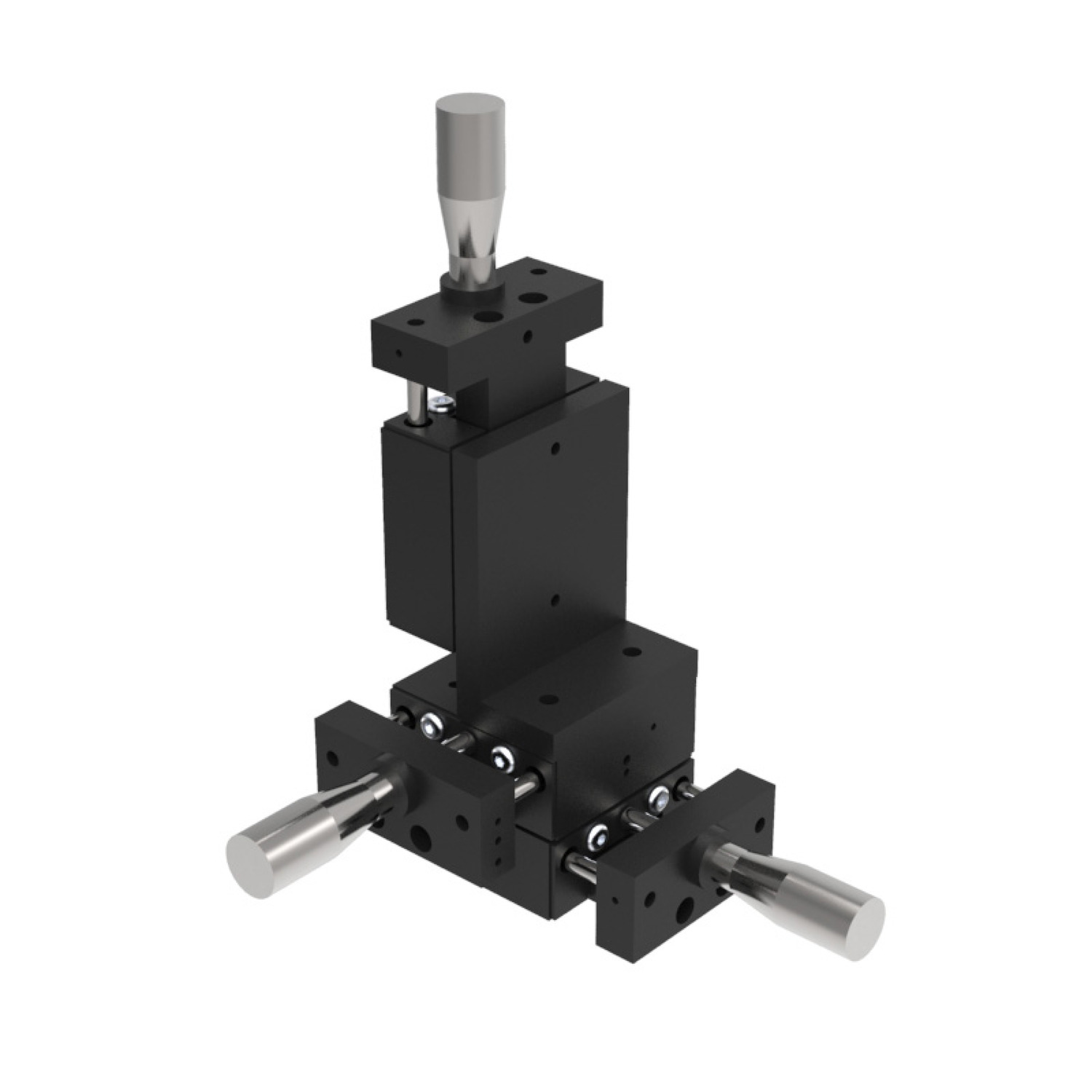

Alternative products you may wish to consider
Type
Travel
h1
h2
h3
l1
l2
l3
w1
| Price & Availability | Article | Type | Travel | h1 | h2 | h3 | l1 | l2 | l3 | w1 | |||||||||||||||
| L3112.0401-XYB | XY Ball | 13 | 19.1 | 42.9 | - | 50.8 | 74.9 | - | 44.5 | ||||||||||||||||
£ 828.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Ball Travel 13 h1 19.1 h2 42.9 h3 - l1 50.8 l2 74.9 l3 - w1 44.5 | |||||||||||||||||||||||||
| L3112.0501-XYB | XY Ball | 13 | 19.1 | 42.9 | - | 82.6 | 105.4 | - | 44.5 | ||||||||||||||||
£ 890.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Ball Travel 13 h1 19.1 h2 42.9 h3 - l1 82.6 l2 105.4 l3 - w1 44.5 | |||||||||||||||||||||||||
| L3112.0502-XYB | XY Ball | 25 | 19.1 | 42.9 | - | 82.6 | 114.5 | - | 44.5 | ||||||||||||||||
£ 868.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Ball Travel 25 h1 19.1 h2 42.9 h3 - l1 82.6 l2 114.5 l3 - w1 44.5 | |||||||||||||||||||||||||
| L3112.0701-XYB | XY Ball | 13 | 25.4 | 55.6 | - | 101.6 | 124.5 | - | 66.5 | ||||||||||||||||
£ 923.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Ball Travel 13 h1 25.4 h2 55.6 h3 - l1 101.6 l2 124.5 l3 - w1 66.5 | |||||||||||||||||||||||||
| L3112.0702-XYB | XY Ball | 25 | 25.4 | 55.6 | - | 101.6 | 131.6 | - | 66.5 | ||||||||||||||||
£ 1,082.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Ball Travel 25 h1 25.4 h2 55.6 h3 - l1 101.6 l2 131.6 l3 - w1 66.5 | |||||||||||||||||||||||||
| L3112.0401-XYR | XY Roller | 13 | 19.1 | 42.9 | - | 50.8 | 74.9 | - | 44.5 | ||||||||||||||||
£ 999.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Roller Travel 13 h1 19.1 h2 42.9 h3 - l1 50.8 l2 74.9 l3 - w1 44.5 | |||||||||||||||||||||||||
| L3112.0501-XYR | XY Roller | 13 | 19.1 | 42.9 | - | 82.6 | 105.4 | - | 44.5 | ||||||||||||||||
£ 1,121.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Roller Travel 13 h1 19.1 h2 42.9 h3 - l1 82.6 l2 105.4 l3 - w1 44.5 | |||||||||||||||||||||||||
| L3112.0502-XYR | XY Roller | 25 | 19.1 | 42.9 | - | 82.6 | 114.5 | - | 44.5 | ||||||||||||||||
£ 1,190.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Roller Travel 25 h1 19.1 h2 42.9 h3 - l1 82.6 l2 114.5 l3 - w1 44.5 | |||||||||||||||||||||||||
| L3112.0701-XYR | XY Roller | 13 | 25.4 | 55.6 | - | 101.6 | 124.5 | - | 66.5 | ||||||||||||||||
£ 1,187.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Roller Travel 13 h1 25.4 h2 55.6 h3 - l1 101.6 l2 124.5 l3 - w1 66.5 | |||||||||||||||||||||||||
| L3112.0702-XYR | XY Roller | 25 | 25.4 | 55.6 | - | 101.6 | 131.6 | - | 66.5 | ||||||||||||||||
£ 1,322.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XY Roller Travel 25 h1 25.4 h2 55.6 h3 - l1 101.6 l2 131.6 l3 - w1 66.5 | |||||||||||||||||||||||||
| L3112.0401-XYZB | XYZ Ball | 13 | 19.1 | 42.9 | 124.2 | 50.8 | 74.9 | 14.6 | 44.5 | ||||||||||||||||
£ 1,292.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Ball Travel 13 h1 19.1 h2 42.9 h3 124.2 l1 50.8 l2 74.9 l3 14.6 w1 44.5 | |||||||||||||||||||||||||
| L3112.0501-XYZB | XYZ Ball | 13 | 19.1 | 42.9 | 154.7 | 82.6 | 105.4 | 0 | 44.5 | ||||||||||||||||
£ 1,343.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Ball Travel 13 h1 19.1 h2 42.9 h3 154.7 l1 82.6 l2 105.4 l3 0 w1 44.5 | |||||||||||||||||||||||||
| L3112.0502-XYZB | XYZ Ball | 25 | 19.1 | 42.9 | 163.8 | 82.6 | 114.5 | 0 | 44.5 | ||||||||||||||||
£ 1,353.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Ball Travel 25 h1 19.1 h2 42.9 h3 163.8 l1 82.6 l2 114.5 l3 0 w1 44.5 | |||||||||||||||||||||||||
| L3112.0701-XYZB | XYZ Ball | 13 | 25.4 | 55.6 | 189.5 | 101.6 | 124.5 | 9.3 | 66.5 | ||||||||||||||||
£ 1,434.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Ball Travel 13 h1 25.4 h2 55.6 h3 189.5 l1 101.6 l2 124.5 l3 9.3 w1 66.5 | |||||||||||||||||||||||||
| L3112.0702-XYZB | XYZ Ball | 25 | 25.4 | 55.6 | 196.6 | 101.6 | 131.6 | 9.3 | 66.5 | ||||||||||||||||
£ 1,672.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Ball Travel 25 h1 25.4 h2 55.6 h3 196.6 l1 101.6 l2 131.6 l3 9.3 w1 66.5 | |||||||||||||||||||||||||
| L3112.0401-XYZR | XYZ Roller | 13 | 19.1 | 42.9 | 124.2 | 50.8 | 74.9 | 14.6 | 44.5 | ||||||||||||||||
£ 1,548.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Roller Travel 13 h1 19.1 h2 42.9 h3 124.2 l1 50.8 l2 74.9 l3 14.6 w1 44.5 | |||||||||||||||||||||||||
| L3112.0501-XYZR | XYZ Roller | 13 | 19.1 | 42.9 | 154.7 | 82.6 | 105.4 | 0 | 44.5 | ||||||||||||||||
£ 1,731.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Roller Travel 13 h1 19.1 h2 42.9 h3 154.7 l1 82.6 l2 105.4 l3 0 w1 44.5 | |||||||||||||||||||||||||
| L3112.0502-XYZR | XYZ Roller | 25 | 19.1 | 42.9 | 163.8 | 82.6 | 114.5 | 0 | 44.5 | ||||||||||||||||
£ 1,835.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Roller Travel 25 h1 19.1 h2 42.9 h3 163.8 l1 82.6 l2 114.5 l3 0 w1 44.5 | |||||||||||||||||||||||||
| L3112.0701-XYZR | XYZ Roller | 13 | 25.4 | 55.6 | 189.5 | 101.6 | 124.5 | 9.3 | 66.5 | ||||||||||||||||
£ 1,831.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Roller Travel 13 h1 25.4 h2 55.6 h3 189.5 l1 101.6 l2 124.5 l3 9.3 w1 66.5 | |||||||||||||||||||||||||
| L3112.0702-XYZR | XYZ Roller | 25 | 25.4 | 55.6 | 196.6 | 101.6 | 131.6 | 9.3 | 66.5 | ||||||||||||||||
£ 2,036.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type XYZ Roller Travel 25 h1 25.4 h2 55.6 h3 196.6 l1 101.6 l2 131.6 l3 9.3 w1 66.5 | |||||||||||||||||||||||||
Weight
kg
w2
Load Z
max.
kg
Load X & XY
max.
kg
X moment load
max.
Nm
Y moment load
max.
Nm
Z moment load
max.
Nm
| Price & Availability | Article | Weight kg | w2 | Load Z max. kg | Load X & XY max. kg | X moment load max. Nm | Y moment load max. Nm | Z moment load max. Nm | |||||||||||||||
| L3112.0401-XYB | 9.1 | 61.0 | 9.0 | 9.1 | 0.96 | 0.96 | 0.96 | ||||||||||||||||
£ 828.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 9.1 w2 61.0 Load Z
max.
kg 9.0 Load X & XY
max.
kg 9.1 X moment load
max.
Nm 0.96 Y moment load
max.
Nm 0.96 Z moment load
max.
Nm 0.96 | |||||||||||||||||||||||
| L3112.0501-XYB | 19.0 | 61.0 | 9.0 | 19.0 | 2.02 | 2.02 | 2.02 | ||||||||||||||||
£ 890.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 19.0 w2 61.0 Load Z
max.
kg 9.0 Load X & XY
max.
kg 19.0 X moment load
max.
Nm 2.02 Y moment load
max.
Nm 2.02 Z moment load
max.
Nm 2.02 | |||||||||||||||||||||||
| L3112.0502-XYB | 19.0 | 64.8 | 9.0 | 19.0 | 2.02 | 2.02 | 2.02 | ||||||||||||||||
£ 868.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 19.0 w2 64.8 Load Z
max.
kg 9.0 Load X & XY
max.
kg 19.0 X moment load
max.
Nm 2.02 Y moment load
max.
Nm 2.02 Z moment load
max.
Nm 2.02 | |||||||||||||||||||||||
| L3112.0701-XYB | 27.2 | 84.1 | 9.0 | 27.2 | 4.94 | 4.94 | 4.94 | ||||||||||||||||
£ 923.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 27.2 w2 84.1 Load Z
max.
kg 9.0 Load X & XY
max.
kg 27.2 X moment load
max.
Nm 4.94 Y moment load
max.
Nm 4.94 Z moment load
max.
Nm 4.94 | |||||||||||||||||||||||
| L3112.0702-XYB | 27.2 | 87.1 | 9.0 | 27.2 | 4.94 | 4.94 | 4.94 | ||||||||||||||||
£ 1,082.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 27.2 w2 87.1 Load Z
max.
kg 9.0 Load X & XY
max.
kg 27.2 X moment load
max.
Nm 4.94 Y moment load
max.
Nm 4.94 Z moment load
max.
Nm 4.94 | |||||||||||||||||||||||
| L3112.0401-XYR | 18.1 | 61.0 | 9.0 | 18.1 | 1.92 | 1.92 | 1.92 | ||||||||||||||||
£ 999.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 18.1 w2 61.0 Load Z
max.
kg 9.0 Load X & XY
max.
kg 18.1 X moment load
max.
Nm 1.92 Y moment load
max.
Nm 1.92 Z moment load
max.
Nm 1.92 | |||||||||||||||||||||||
| L3112.0501-XYR | 36.3 | 61.0 | 9.0 | 36.3 | 3.84 | 3.84 | 3.84 | ||||||||||||||||
£ 1,121.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 36.3 w2 61.0 Load Z
max.
kg 9.0 Load X & XY
max.
kg 36.3 X moment load
max.
Nm 3.84 Y moment load
max.
Nm 3.84 Z moment load
max.
Nm 3.84 | |||||||||||||||||||||||
| L3112.0502-XYR | 36.3 | 64.8 | 9.0 | 36.3 | 3.84 | 3.84 | 3.84 | ||||||||||||||||
£ 1,190.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 36.3 w2 64.8 Load Z
max.
kg 9.0 Load X & XY
max.
kg 36.3 X moment load
max.
Nm 3.84 Y moment load
max.
Nm 3.84 Z moment load
max.
Nm 3.84 | |||||||||||||||||||||||
| L3112.0701-XYR | 72.5 | 84.1 | 9.0 | 72.5 | 13.18 | 13.18 | 13.18 | ||||||||||||||||
£ 1,187.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 72.5 w2 84.1 Load Z
max.
kg 9.0 Load X & XY
max.
kg 72.5 X moment load
max.
Nm 13.18 Y moment load
max.
Nm 13.18 Z moment load
max.
Nm 13.18 | |||||||||||||||||||||||
| L3112.0702-XYR | 72.5 | 87.1 | 9.0 | 72.5 | 13.18 | 13.18 | 13.18 | ||||||||||||||||
£ 1,322.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 72.5 w2 87.1 Load Z
max.
kg 9.0 Load X & XY
max.
kg 72.5 X moment load
max.
Nm 13.18 Y moment load
max.
Nm 13.18 Z moment load
max.
Nm 13.18 | |||||||||||||||||||||||
| L3112.0401-XYZB | 9.1 | 61.0 | 9.0 | 9.1 | 0.96 | 0.96 | 0.96 | ||||||||||||||||
£ 1,292.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 9.1 w2 61.0 Load Z
max.
kg 9.0 Load X & XY
max.
kg 9.1 X moment load
max.
Nm 0.96 Y moment load
max.
Nm 0.96 Z moment load
max.
Nm 0.96 | |||||||||||||||||||||||
| L3112.0501-XYZB | 19.0 | 61.0 | 9.0 | 19.0 | 2.02 | 2.02 | 2.02 | ||||||||||||||||
£ 1,343.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 19.0 w2 61.0 Load Z
max.
kg 9.0 Load X & XY
max.
kg 19.0 X moment load
max.
Nm 2.02 Y moment load
max.
Nm 2.02 Z moment load
max.
Nm 2.02 | |||||||||||||||||||||||
| L3112.0502-XYZB | 19.0 | 64.8 | 9.0 | 19.0 | 2.02 | 2.02 | 2.02 | ||||||||||||||||
£ 1,353.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 19.0 w2 64.8 Load Z
max.
kg 9.0 Load X & XY
max.
kg 19.0 X moment load
max.
Nm 2.02 Y moment load
max.
Nm 2.02 Z moment load
max.
Nm 2.02 | |||||||||||||||||||||||
| L3112.0701-XYZB | 27.2 | 84.1 | 9.0 | 27.2 | 4.94 | 4.94 | 4.94 | ||||||||||||||||
£ 1,434.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 27.2 w2 84.1 Load Z
max.
kg 9.0 Load X & XY
max.
kg 27.2 X moment load
max.
Nm 4.94 Y moment load
max.
Nm 4.94 Z moment load
max.
Nm 4.94 | |||||||||||||||||||||||
| L3112.0702-XYZB | 27.2 | 87.1 | 9.0 | 27.2 | 4.94 | 4.94 | 4.94 | ||||||||||||||||
£ 1,672.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 27.2 w2 87.1 Load Z
max.
kg 9.0 Load X & XY
max.
kg 27.2 X moment load
max.
Nm 4.94 Y moment load
max.
Nm 4.94 Z moment load
max.
Nm 4.94 | |||||||||||||||||||||||
| L3112.0401-XYZR | 18.1 | 61.0 | 9.0 | 18.1 | 1.92 | 1.92 | 1.92 | ||||||||||||||||
£ 1,548.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 18.1 w2 61.0 Load Z
max.
kg 9.0 Load X & XY
max.
kg 18.1 X moment load
max.
Nm 1.92 Y moment load
max.
Nm 1.92 Z moment load
max.
Nm 1.92 | |||||||||||||||||||||||
| L3112.0501-XYZR | 36.3 | 61.0 | 9.0 | 36.3 | 3.84 | 3.84 | 3.84 | ||||||||||||||||
£ 1,731.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 36.3 w2 61.0 Load Z
max.
kg 9.0 Load X & XY
max.
kg 36.3 X moment load
max.
Nm 3.84 Y moment load
max.
Nm 3.84 Z moment load
max.
Nm 3.84 | |||||||||||||||||||||||
| L3112.0502-XYZR | 36.3 | 64.8 | 9.0 | 36.3 | 3.84 | 3.84 | 3.84 | ||||||||||||||||
£ 1,835.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 36.3 w2 64.8 Load Z
max.
kg 9.0 Load X & XY
max.
kg 36.3 X moment load
max.
Nm 3.84 Y moment load
max.
Nm 3.84 Z moment load
max.
Nm 3.84 | |||||||||||||||||||||||
| L3112.0701-XYZR | 72.5 | 84.1 | 9.0 | 72.5 | 13.18 | 13.18 | 13.18 | ||||||||||||||||
£ 1,831.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 72.5 w2 84.1 Load Z
max.
kg 9.0 Load X & XY
max.
kg 72.5 X moment load
max.
Nm 13.18 Y moment load
max.
Nm 13.18 Z moment load
max.
Nm 13.18 | |||||||||||||||||||||||
| L3112.0702-XYZR | 72.5 | 87.1 | 9.0 | 72.5 | 13.18 | 13.18 | 13.18 | ||||||||||||||||
£ 2,036.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Weight
kg 72.5 w2 87.1 Load Z
max.
kg 9.0 Load X & XY
max.
kg 72.5 X moment load
max.
Nm 13.18 Y moment load
max.
Nm 13.18 Z moment load
max.
Nm 13.18 | |||||||||||||||||||||||
Technical & Application
Material
Aluminium carriage and base, black anodised steel fixing, hardened steel shafts and balls and roller elements
Technical Notes
Ball roller versions recommended for light loads. Cross roller versions for heavier loads and moment loads.
Straight line accuracy 12µ/25mm travel. Repeatability 3µ.
Spring loaded micrometer allows precise repeatable adjustments with low friction and zero backlash.
Micrometer increments 0,01mm.
For further fixing and mounting hole dimensions please see part number L3100.FH.
Tips
Other options:
- LM (locking micrometer).
- PL (posi-lock carriage lock).
Loads on the Z axis may extend springs if the loads are too heavy. These stages have the micrometer bracket reversed to prevent this and increase the Z load capacity.
Important Notes
Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).
3D CAD available.
