Light Duty Sliders
solid body, no seals
L1918.N Light Duty Sliders, size 18
standard, material: Aluminium
Order No.
L1918.NT18
For rail type
T
No. of rollers
3
C
N
1530
C0ax
N
260
C0rad
N
820

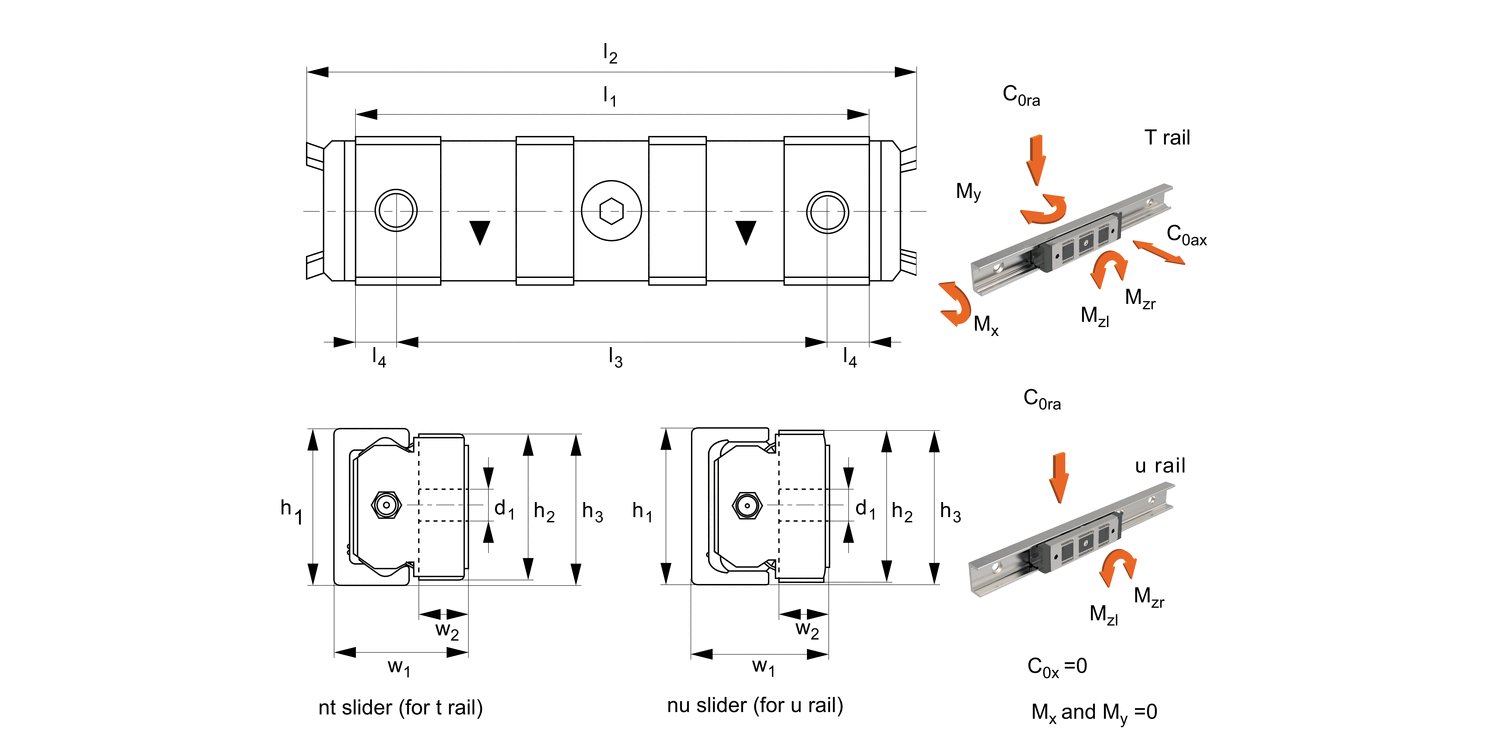

d
M5
h1
+0.25|-0.10
18
h2
+0|-0.2
17.6
h3
±0.25
18.3
l1
62
l2
74
l3
52
Weight
kg
0.03
l4
5
Mx
Nm
1.5
My
Nm
4.7
Mzr
Nm
8.2
Mzl
Nm
8.2
w1
-0.15
16.5
w2
6.4
£ 106.12 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 106.12 | 0% |
| 5-9 | £ 95.51 | 10% |
| 10-19 | £ 90.20 | 15% |
| 20-49 | £ 79.59 | 25% |
| 50+ | £ 68.98 | 35% |
Technical & Application
Material
Die cast aluminium body, chemically nickel plated.
Steel rollers (100Cr6) with metal seals (2Z).
Polyester end pieces and nytrilic rubber side seals.
Technical Notes
To be used with compact rail size 18.
Select the relevant sliders to suit the rail size and the required load to be carried (taking into account any moment loads).
Maintenance free, self-lubricating wipers.
Tips
Easy to install (the middle roller is eccentric allowing for adjustable preload). Coefficient of friction (without seals) 0.003.
Quiet and fast (up to 3 m/s).
