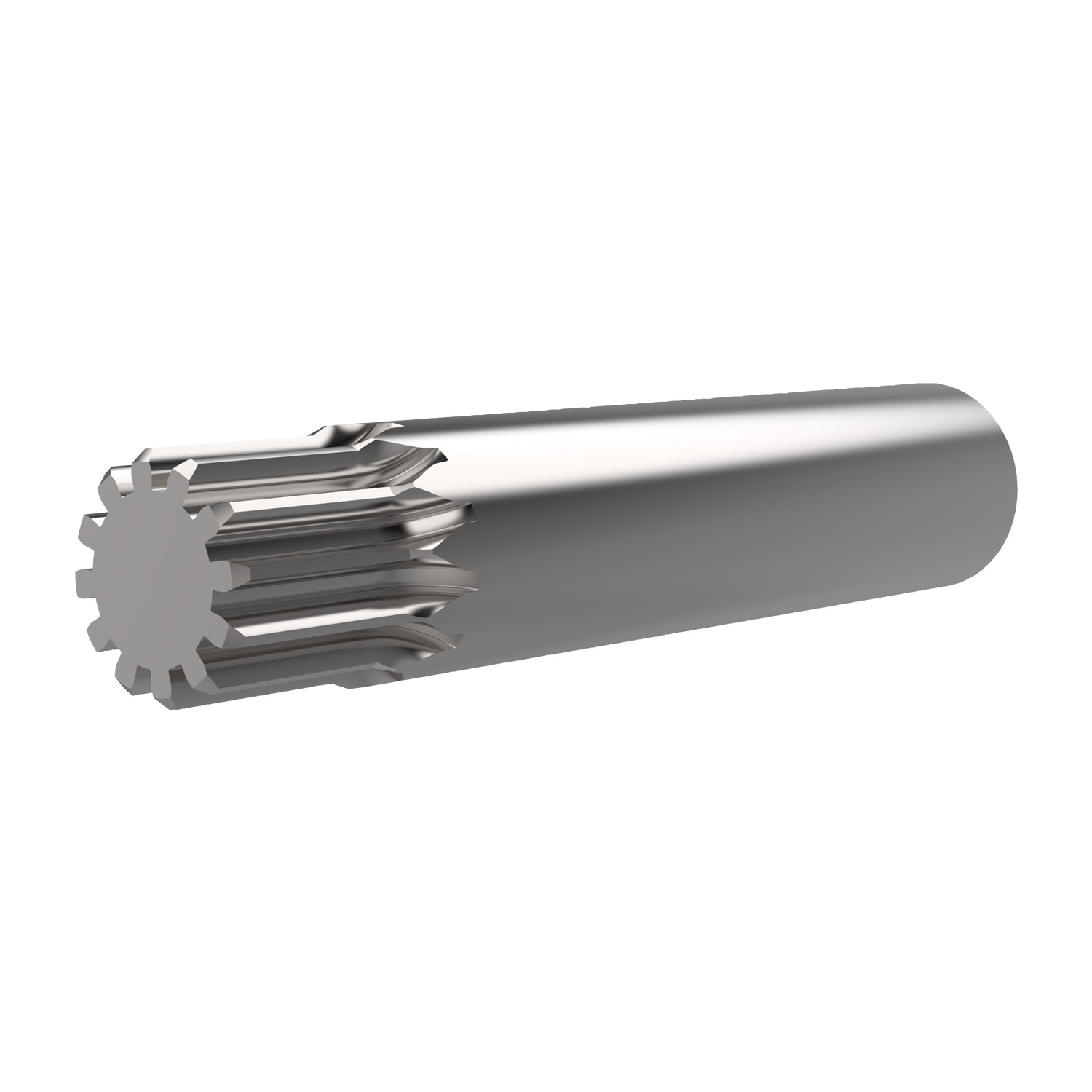

R5141 Spur Gears - Module 0.8 - Stainless

Name: R5141.080-012
Brand: WC
SKU: R5141.080-012
Price: 40.67 EUR
Availability: OutOfStock

stainless steel - 10-12 teeth, material: Stainless steel

Article properties

Order No.

R5141.080-012

Module

m 0.8

No. of teeth z

Pitch dia. d₁

9.6

d₂

11.2

w₁

d₃ tol. H8

l₁

l₂

Torque max. Nm

1.04

Weight g

50.6

See full product selection

£ 40.67 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 40.67	0%
5-19	£ 36.60	10%
20-39	£ 32.54	20%
40-99	£ 28.47	30%
100+	£ 24.40	40%

Download product datasheet

Technical & Application

Material

Stainless steel (SUS 304, JIS G 4303). Accuracy to JIS B 1702-1 (ISO) class 9.

Technical Notes

20° pressure angle, full depth tooth. Amount of backlash when assembling gears = 0,016 - 0,048mm.

Tips

For module 0.8 stainless steel gears with more teeth, see R5142, R5144 (boreless) & R5146.
Max. allowable torque (Nm) is based on standard operating conditions (see technical pages) with a safety factor of 1.2. For non standard applications apply a suitable safety factor depending on frequency of use, type of working etc.
