Air motors
R4100 Miniature Air Motors
material: Steel or stainless steel
Order No.
R4100.MMR0014
Type
Reversible
Free speed rpm
1.750
Lubricate?
Yes
Stall torque
Nm
0.78

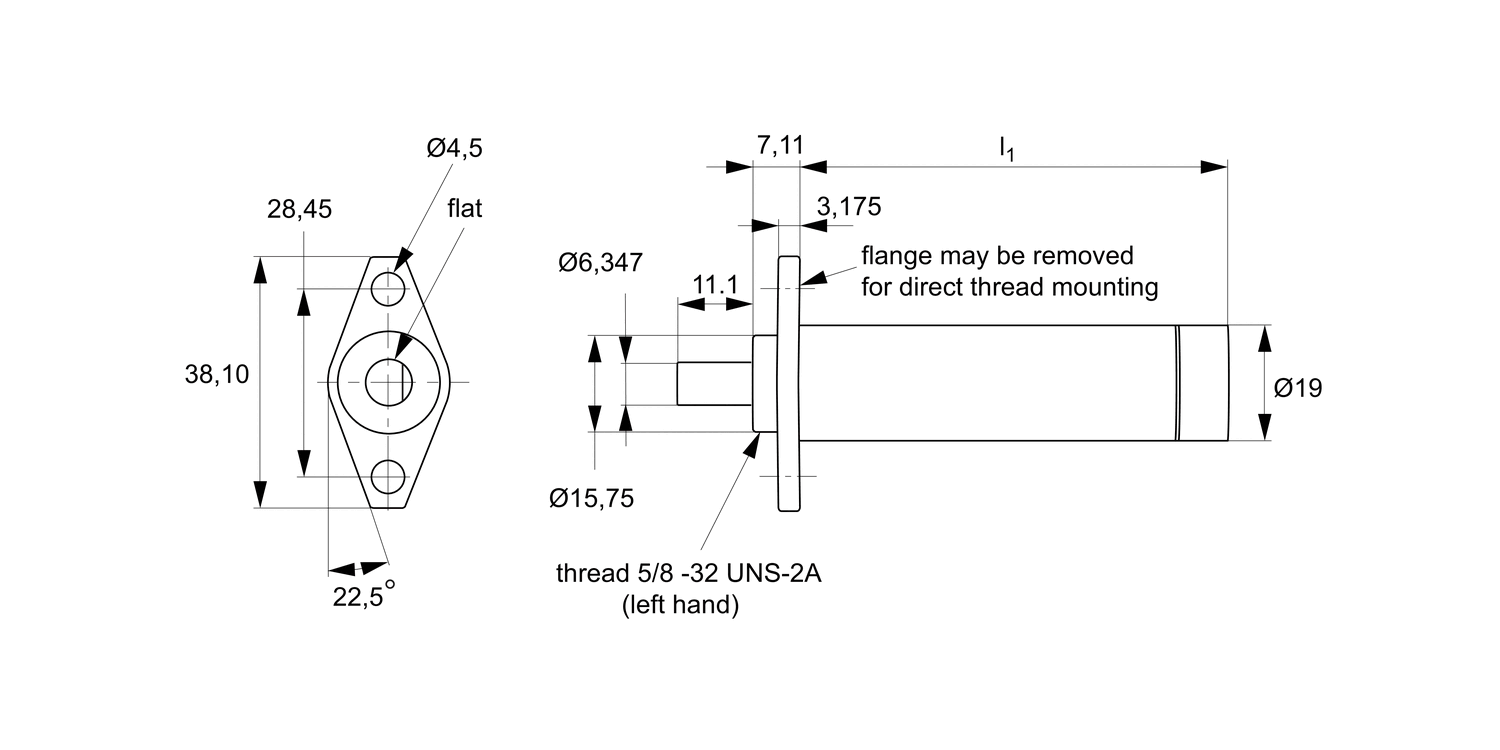

l1
81.0
Weight
g
120
£ 1,243.44 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 1,243.44 | 0% |
| 5-9 | £ 1,181.27 | 5% |
| 10-19 | £ 1,119.10 | 10% |
| 20-49 | £ 1,056.92 | 15% |
| 50+ | £ 932.58 | 25% |
Technical & Application
Material
Precision air motor of stainless steel body and aluminium construction.
The balanced rotor is positioned between precision ball bearings which virtually eliminates friction and wear.
A hardened planetary gear system provides increased torque transmission capabilities and long-life.
Technical Notes
For medical, robotic and industrial applications.
Gears slip above the torque*.
Figures below relate to average free speed and stall torque specifications at 90 psi.
Maximum shaft loading 7,5Kg.
Please read operating and installation manual carefully, to ensure product life.
Tips
Shaft seals available for units having free speeds of 2000 rpm or less. If you require a sealed motor please clearly specify when ordering and add -S to part number.
LF=lubrication free version
