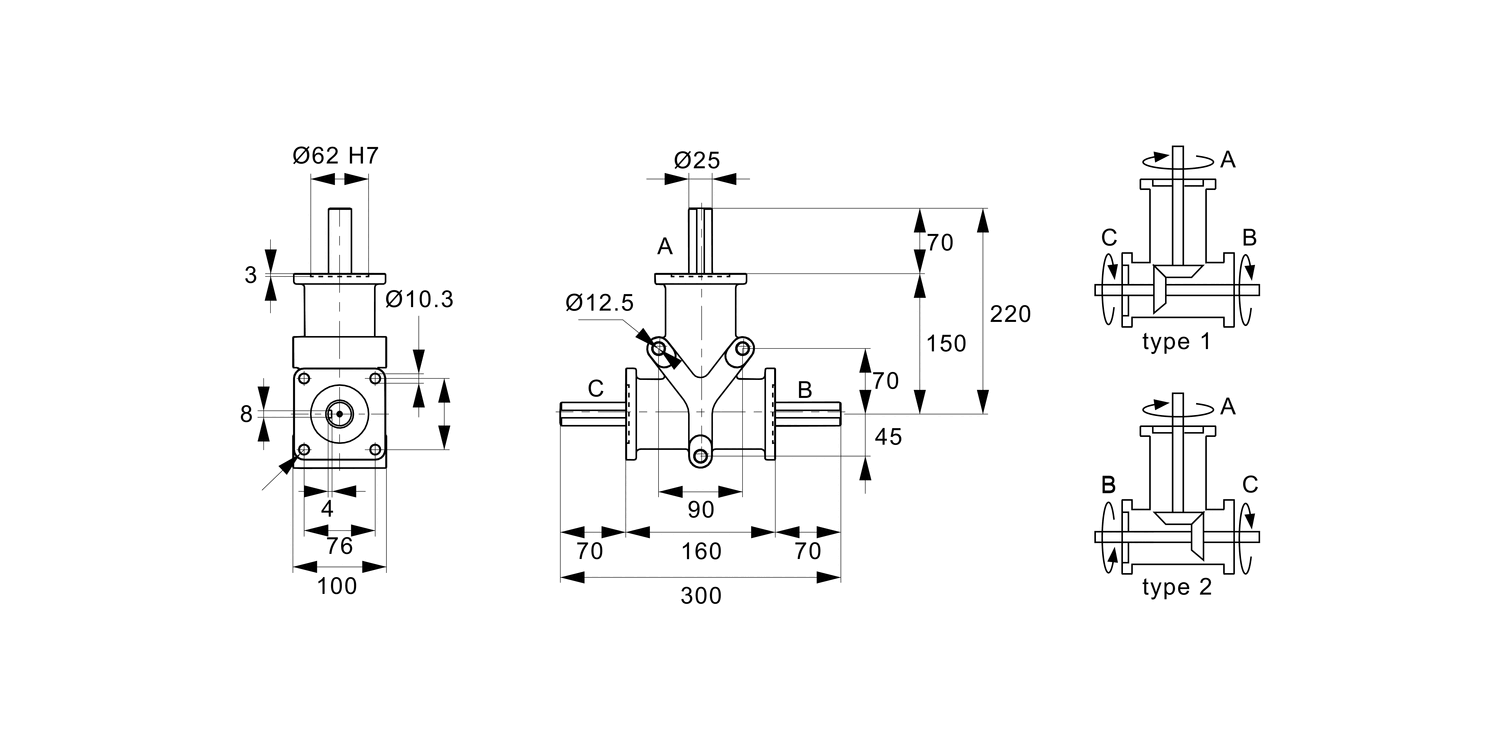

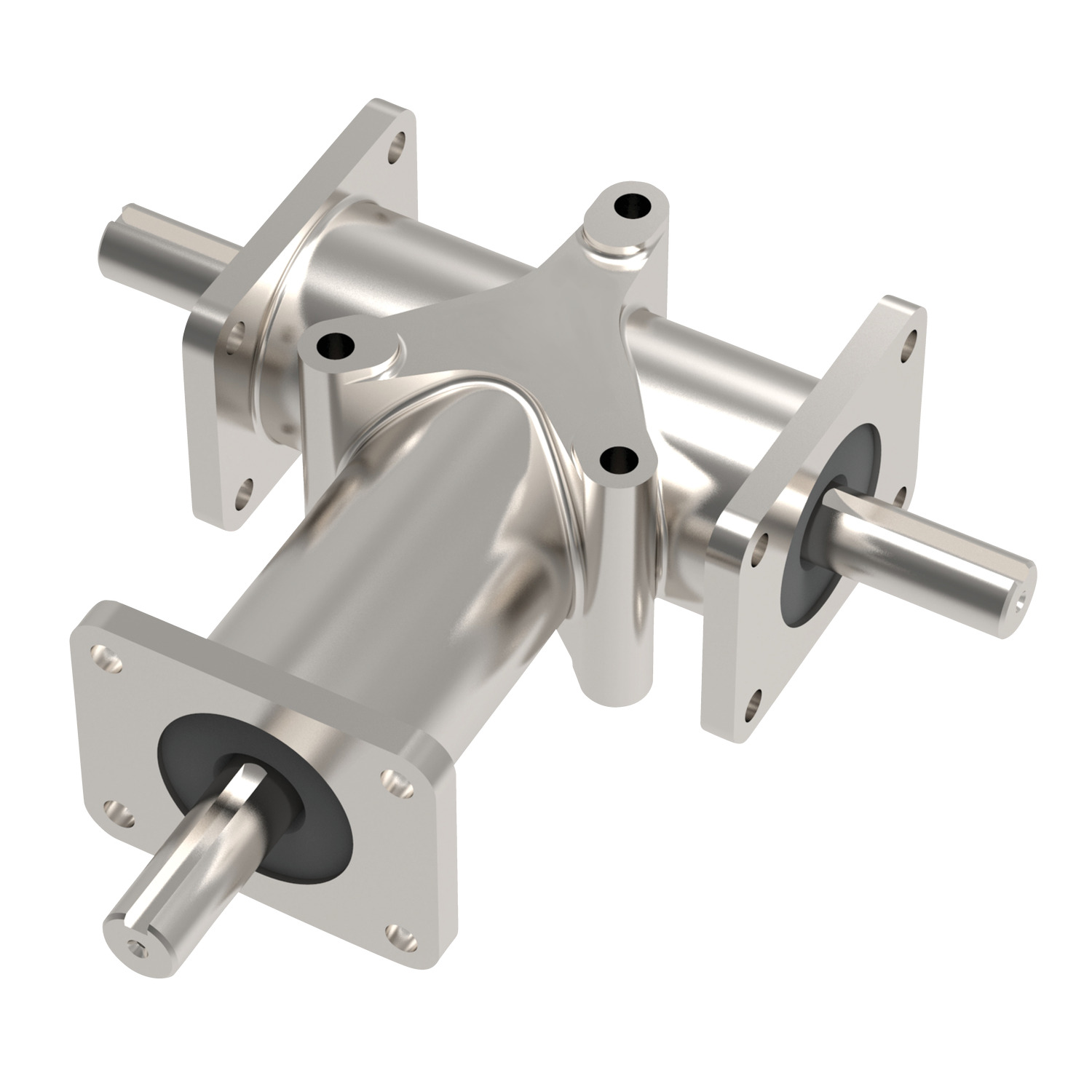

R2359 Stainless Right Angle Drives - 3 Shafts

Name: R2359.1
Brand: WC
SKU: R2359.1
Price: 2748.27 EUR
Availability: OutOfStock

Article properties

Order No.

R2359.1

Shaft dia.

Ratio

Input shaft A max. kW

4.55

Output shaft B max. Nm

15.50

Output shaft C max. Nm

15.50

Weight kg

9.45

£ 2,748.27 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Technical & Application

Stainless steel (AISI 316) housing and shafts, seals - NBR. Spiral bevel gears from hardened steel.

Normally used as speed reducers.
Max. radial loading 400N. Max. axial loading 160N.
Angular alignment: 15' to 30' of arc.

Stainless Steel Gear BoxesJune 19, 2025, 4:50 PM / 1.62 MB

Right Angle Gear BoxesJune 19, 2025, 4:45 PM / 6.79 MB

Gears, Gear Boxes & BeltsJune 19, 2025, 4:41 PM / 32.94 MB

Linkages & Rotary ComponentsJune 19, 2025, 4:38 PM / 20.62 MB

R2359 AcisMarch 29, 2019, 4:37 PM / 426.91 kB

R2359 IGESMarch 29, 2019, 4:37 PM / 675.74 kB

R2359 ParasolidMarch 29, 2019, 4:37 PM / 145.62 kB

R2359 ProEMarch 29, 2019, 4:37 PM / 1.07 MB

R2359 SolidWorksMarch 29, 2019, 4:37 PM / 1.67 MB

R2359 StepMarch 29, 2019, 4:37 PM / 381.10 kB
