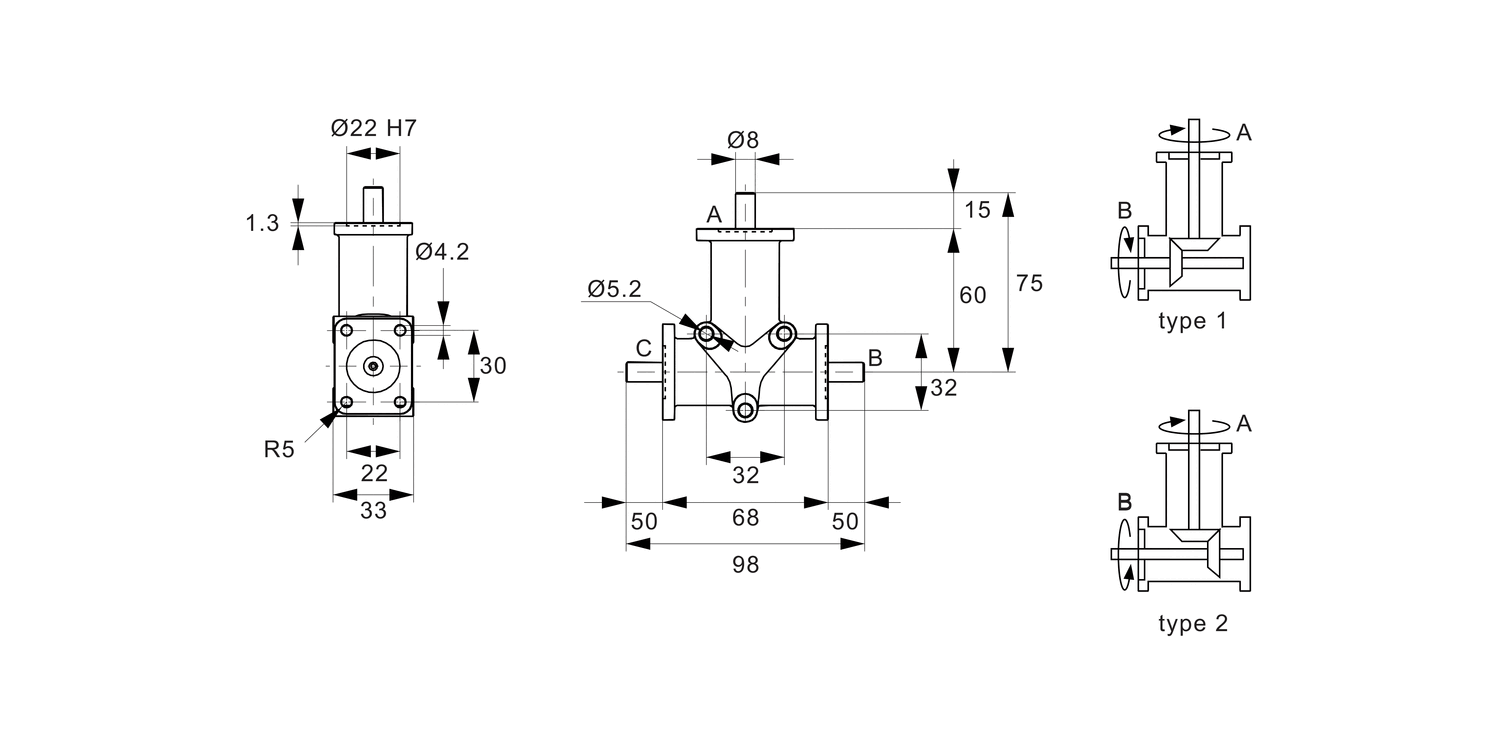

R2351 Stainless Right Angle Drives - 3 Shafts

Name: R2351.1
Brand: WC
SKU: R2351.1
Price: 767.1 EUR
Availability: InStock

Ø8 shafts, material: Aluminium

Article properties

Order No.

R2351.1

Shaft dia. tol. f7

Ratio

Input shaft A max. kW

0.24

Output shaft B max. Nm

0.80

Output shaft C max. Nm

0.80

Weight kg

0.48

See full product selection

£ 767.10 per unit (click for quantity discounts)

Ready to despatch 1
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 767.10	0%
10-14	£ 690.39	10%
15-24	£ 652.04	15%
25-49	£ 613.68	20%
50+	£ 536.97	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Lightweight aluminium alloy housing.
Stainless steel (AISI 316) housing and shafts, seals - NBR. Spiral bevel gears from hardened steel.

Technical Notes

Normally used as speed reducers.
Max. radial loading 60N. Max. axial loading 20N.
Angular alignment: 15' to 30' of arc.

Product Datasheets

R2351 Stainless Right Angle Drives - 3 ShaftsJanuary 3, 2025, 3:31 PM / 66.51 kB

Stainless Steel Gear BoxesJanuary 3, 2025, 3:16 PM / 439.02 kB

Right Angle Gear BoxesJanuary 3, 2025, 3:16 PM / 1.75 MB

Gears, Gear Boxes & BeltsJanuary 3, 2025, 3:17 PM / 8.59 MB

Linkages & Rotary ComponentsJanuary 3, 2025, 3:17 PM / 22.92 MB

CAD files

R2351 AcisMarch 28, 2019, 4:57 PM / 429.61 kB

R2351 IGESMarch 28, 2019, 4:57 PM / 642.57 kB

R2351 ParasolidMarch 28, 2019, 4:57 PM / 149.07 kB

R2351 ProEMarch 28, 2019, 4:57 PM / 1.22 MB

R2351 SolidWorksMarch 28, 2019, 4:57 PM / 1.75 MB

R2351 StepMarch 28, 2019, 4:57 PM / 348.17 kB
